TRA89086-4-C TRAXXAS Maxx WideMaxx 1/10 Brushless RTR 4WD Monster Truck w/TQi 2.4GHz Radio & TSM
THIS ITEM DOES NOT QUALIFY FOR FREE SHIPPING
Note: Graves RC Coupons are not applicable with this product

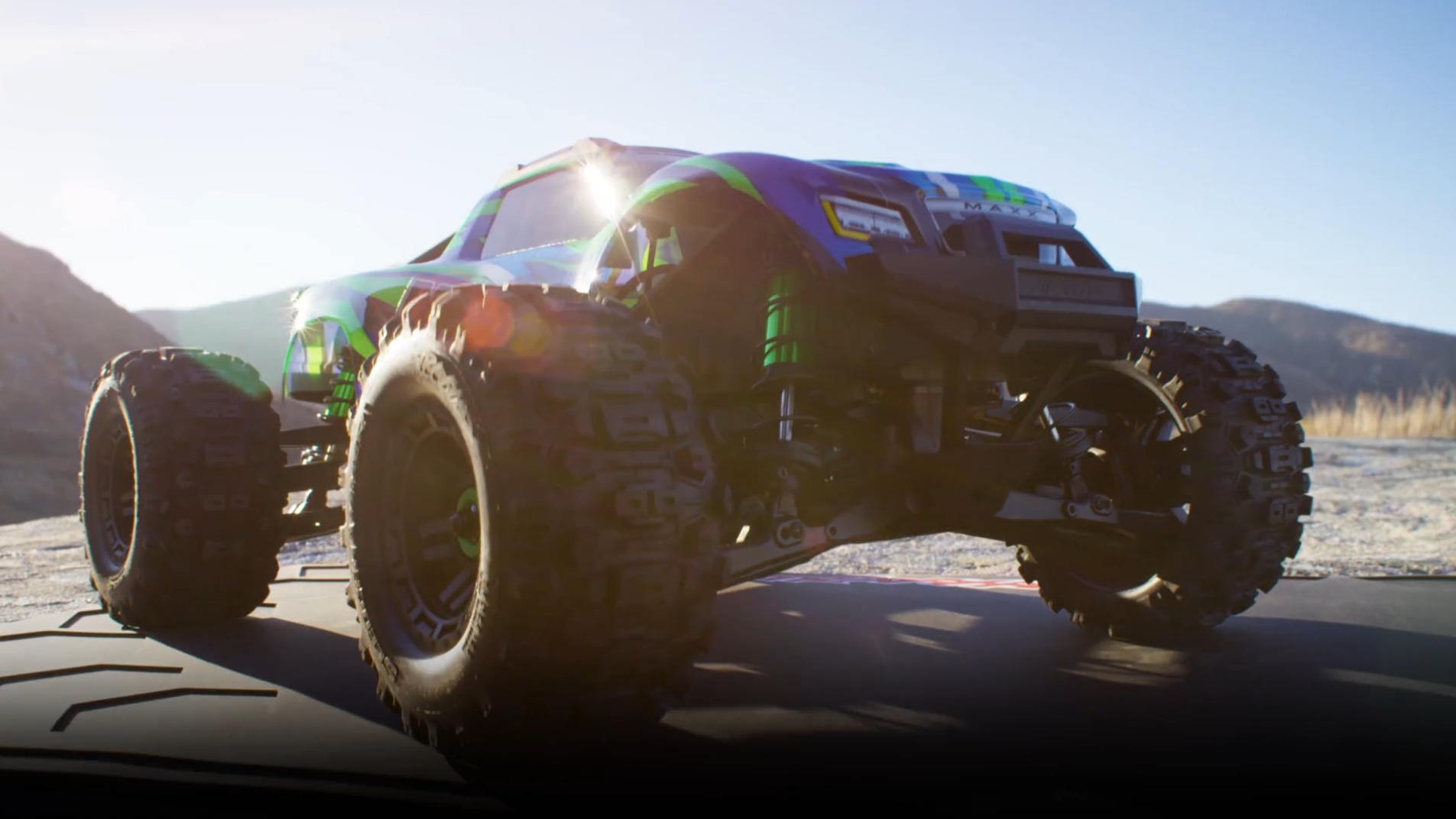

The Traxxas X-Maxx® is a giant that forever changed the face of RC monster trucks. Its radical cutting-edge design, massive size, brutal strength, and unmatched power transformed X-Maxx into the stuff of legends. The 1/10 scale Traxxas Maxx® expertly packages X-Maxx’s innovative design elements and jaw-dropping strength into a lighter, more compact, more ferocious beast. Armed with WideMaxx® suspension and Sledgehammer® tires, Maxx stands ready for high-speed aggressive action from the start. Let the fun begin!
The Maxx Experience - Maxx turns up the dial on fun with even more of what you crave. Maxx doubles down on strength and durability with a longer and wider stance for greater stability to match its blistering 60+ mph performance. Bury the throttle, fly through corners, and let Maxx turn your wildest full-throttle dreams into reality.
60+ MPH Maxx Muscle - Traxxas Velineon® brushless power hits hard with massive 4s punch for an awe-inspiring 60+ mph top speed and effortless wheelies on demand. The high output 540XL motor features a beefy 5 mm shaft, aluminum heat sink, and a powerful fan. Of course it’s all fully protected with Traxxas’ innovative waterproofing.
Traxxas Tough - Maxx is overbuilt with components modeled after the legendary X-Series™ trucks to withstand extreme punishment and intense driving action. The Maxx chassis absorbs and dissipates impact energy across the entire structure for superior strength. Huge threaded-aluminum GT-Maxx shocks with oversized shafts soak up massive jumps for high-flying fun at every turn.
WideMaxx Suspension - WideMaxx suspension technology stretches Maxx’s wheels out for a wider, more stable stance and higher cornering speeds. A long wheelbase chassis further enhances Maxx’s straight-line stability to give Maxx race truck stability to match its brutally tough construction.
Sledgehammer Tires - Huge 5.6” Sledgehammer tires feature an aggressive open-block tread design that clears away mud and debris for unrivaled traction.
More Colors - Maxx makes a statement with several ProGraphix® new clipless bodies with our brightest and boldest color options yet.
WideMaxx from the Start - The popular WideMaxx kit comes factory installed for rock solid cornering and ultimate stability.
Extended Chassis - Maxx's energy absorbing chassis extends further to accommodate our most powerful 6700mAh 4-cell LiPo battery. The ultra-tough composite chassis design with interlocking bulkheads forms a bedrock foundation for the heavy-duty suspension.
Sledgehammer Extreme Off-Road Tires - Large diameter, open tread block tires rain down massive clouds of roost and dominate any surface.
Maxx Muscle - Brutal punch off the line strains the wheelie bar as Maxx launches hard and fast on its way to 60+ mph. The advanced Velineon VXL-4s Electronic Speed Control (ESC) not only puts down the power, but it also has built-in telemetry that provides real-time speed, temperature, and voltage data. Integrated cooling fans on the ESC and the motor provide extended run times.

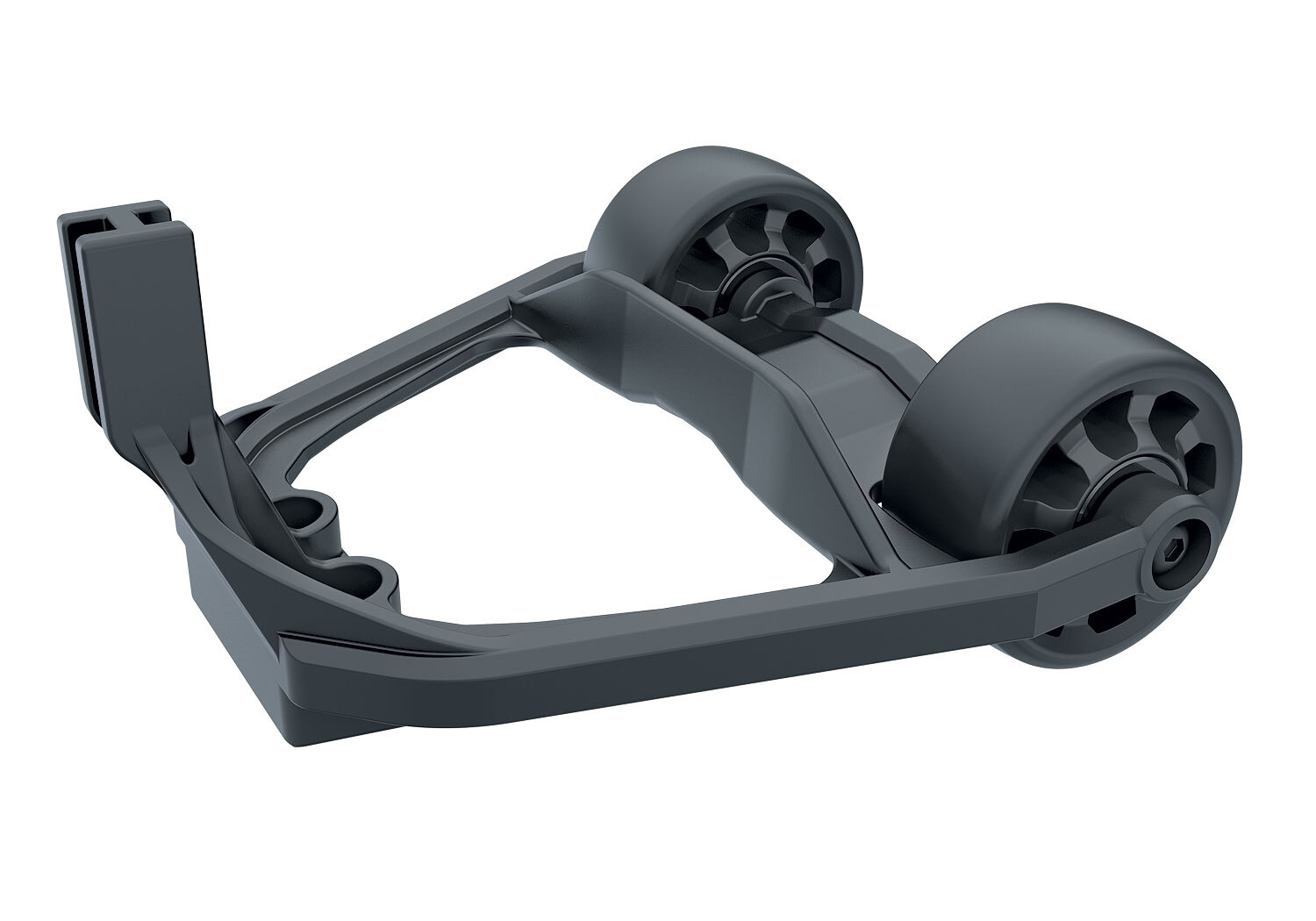

Integrated Wheelie Bar - A wheelie bar is mandatory equipment to handle Maxx's wheel-standing acceleration. The wheelie bar helps prevent backflips under full-throttle acceleration and flexes to absorb impacts on less-than-perfect landings. It also features a convenient handle to transport your Maxx to the next adventure.
TQi Radio System - The high-output Traxxas TQi 2.4 GHz radio system delivers superior range, precision and control. It is Traxxas Link enabled so you can add a Wireless Module (part 6511, sold separately) and connect wirelessly to the Traxxas Link app using your smart phone. Use it to customize your settings and view real time telemetry from the VXL-4s speed control.
Traxxas Stability Management - Traxxas Stability Management (TSM) works behind the scenes to help harness Maxx's brutal 4s power for maximum acceleration and exceptional control. Go ahead, rip full throttle! TSM never limits power output and works to keep Maxx going where you point it, even when traction is destroyed by spinning tires and massive roost. Adjust the amount of assistance from off to 100% right from your transmitter.
Superior Protection - The unique Maxx chassis design completely encloses the center driveshaft inside a rigid backbone structure for ultimate protection. Rugged, non-structural front and rear skid plates are designed to take all the punishment to protect critical bulkheads and driveline components. After they have done their job, simply replace them and Maxx will look as good as new.
Maxx Duty Drivetrain - Rugged durability is job one for Maxx's drive system. Maxx utilizes proven components and technology from much larger and heavier trucks resulting in a driveline that has strength to spare. At its core are wide face steel gears, large steel ring and pinion gears, heavy-duty splined driveshafts, and a thick-walled, splined aluminum center driveshaft.
Torque-Biasing Center Drive - The proven Torque-Biasing Center Drive is optimized for maximum front-to-rear power distribution. It's tuned to deliver jaw-dropping four-wheel drive acceleration along with massive punch and instant response. Traxxas' exclusive Cush Drive tech absorbs driveline impacts to further improve driveline durability without maintenance or adjustment.
Traxxas Self-Righting - Originally pioneered for the X-Maxx, this exclusive, patent-pending Traxxas innovation uses 4s LiPo power to flip Maxx back onto its wheels after a roll over. In most situations, the fun won't stop just to rescue an upside down truck.
Fully Waterproof - Water? Mud? Snow? Bring it on! Maxx exploits Traxxas' patented waterproofing solutions that make the huge difference between being truly waterproof and merely "water resistant." Traxxas waterproof electronics reliably extend your fun into all kinds of places that used to be off-limits.
Reinforced Clipless Body - Maxx's innovative clipless body mounting system replaces tiny clips with a rugged latching system. Remove and install the body in seconds with just one hand. A tough cage structure supports the body while supplemental body reinforcements protect the body against wear and damage.
Easy Battery Access - The Maxx battery tray accommodates Traxxas' most powerful 6700 mAh 4-cell LiPo battery. Maxx cradles and protects the single 4s LiPo battery deep in the chassis and secures it with a snap-lock battery retention system. Proven in trucks like X-Maxx, this innovative Traxxas system is far more durable than traditional methods.
Power Cell LiPo Batteries - Experience full Maxx performance with Traxxas Power Cell LiPo batteries. Power Cell LiPo batteries provide maximum punch off the line and free flowing power for 60+ mph speed runs. Only Traxxas Power Cell batteries offer the safety and one-button charging convenienceof patented iD technology.
Accessory High-Output Light Kit (Sold Separately) - An optional LED Light Kit (part 8990, sold separately) is available for Maxx that features a 40 LED bright white front bar with low and high beams. Out back, a 48-LED light bar features red taillights with working brake and white reverse lights.
Details
Sledgehammer Tires - Outfitted with Traxxas' legendary Sledgehammer tires, Maxx is ready for action with multiple layers of biting edges for sure-footed traction on just about any surface. The Sledgehammer's heavy duty rubber compound is specially formulated to resist tearing and bonds exceptionally well with Traxxas' Ultra Premium tire glue. The 2.8" wheels have a large glue surface for bead mounting and utilize a 17mm hex mounting pattern with a flanged locknut.
Full Length Motor Cradle - Maxx is built for all-day action with a full length motor cradle to fully support the 540XL motor and eliminate gear-crunching flex. The innovative fixed gear mesh system precisely sets the gear mesh with fixed pins to you can focus on driving and having fun and never have to worry about gear mesh adjustment.
Shock Tower Design - Maxx's integrated shock towers are part of the chassis and produce a rigid, triangulated structure for secure mounting of the shocks and body. They also provide an authentic off-road look that fills in the wheel openings of the truck. Sometimes the landing after a jump does not go as planned, so the upper shock mounts are shrouded for protection against impacts and grinding.
Waterproof from the Start - Waterproofing our models has never been an afterthought at Traxxas. Patented Traxxas innovation seals out the water so that your playground is extended through water, snow and mud. Dirty truck? Just hose it off. The receiver box allows fast radio access without removal.
Maxx Steering Authority - The steering servo in Maxx is the same size as the steering servo used on the giant X-Maxx. With 285 oz-in of torque, it has strength and power in reserve for fast response and incredible steering authority.

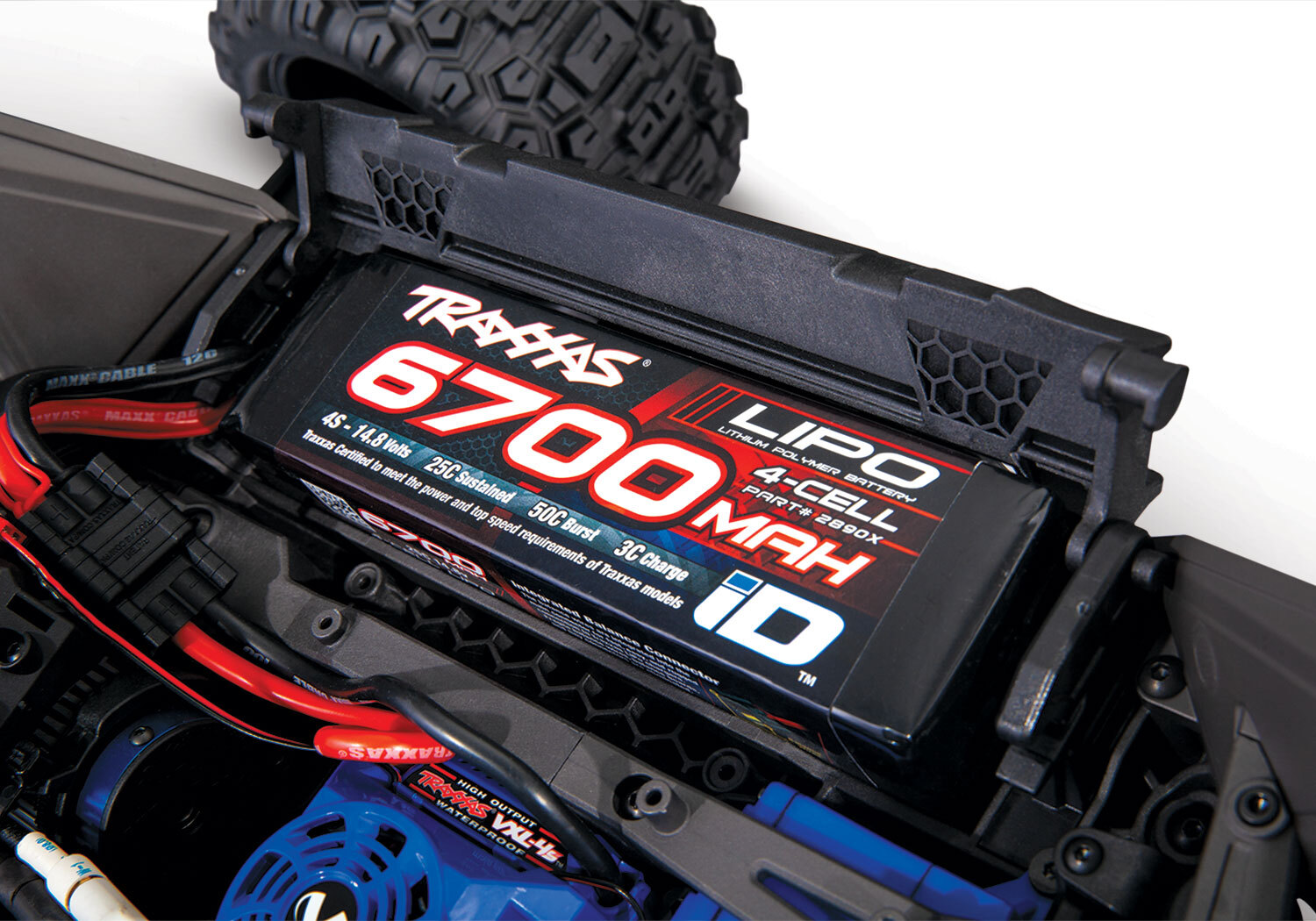

Battery Compartment - Maxx accommodates Traxxas' largest Power Cell 6700 mAh 4-cell LiPo battery from the X-Maxx for extended run times and even more thrills. The snap-lock retainer keeps a secure grip on the battery, but releases in seconds.
GT-Maxx Aluminum Shocks - The four extra-large bore, oil-filled GT-Maxx shocks provide super plush damping even on the roughest terrain. Extra-large diameter shock shafts move smoothly through the double X-ring seals for responsive damping. Machined aluminum bodies are threaded to adjust ride height while the lower spring retainers are captured by screws to keep them secure, even on the harshest landings.
Heavy Duty Suspension Arms - The Maxx's oversized double wishbone suspension arms maintain proper suspension geometry throughout the entire range of travel. Double-shear connections and extra-thick steel upper and lower tie bars provide incredible strength and impact resistance. Tough composites further resist impact damage, even in cold weather.
Modular Chassis Design - The interlocking chassis design ties the shock towers, front and rear modules, and the main frame into a single rigid platform that is engineered to absorb and dissipate impact energy across the entire structure. Critical driveline, radio, and battery components are protected to keep Maxx of the workbench and out having fun. Strategically placed tool access has been thoughtfully put in place to make any needed maintenance or repairs a snap to perform.
Full Contact Sealed Bearings - Maxx utilizes full contact sealed bearings throughout the driveline to keep out the grime and grit. Less downtime for cleaning and maintaining bearings equals more run time for the Maxx.
Shock-Absorbing Cush Drive - Traxxas' innovative Cush Drive uses a special elastomer damper to absorb driveline shocks at the spur gear for superior reliability. Because there is nothing to slip or adjust, Cush Drive provides instant acceleration and throttle control.
Torque-Biasing Center Drive - The Torque-Biasing Center Drive absorbs shocks to improve driveline durability. The center drive also distributes power to all four wheels for mind-bending four-wheel drive acceleration without the side effects of a typical center differential. Center differentials allow tires in the air to balloon uncontrollably, while the Torque-Biasing Center Drive allows wheelies off the line with seamless power distributed to all four wheels.
Aluminum Splined Driveshaft - A thick-wall, heavy-duty, splined aluminum center driveshaft carries the power to the front and rear differentials. This heavy-duty driveshaft yields precise engagement, incredible strength, and smooth running.
Extreme-Duty Telescoping Driveshafts - Traxxas telescoping splined driveshafts benefit from years of Traxxas design evolution for durable, smooth-running performance you can count on. These extreme-duty driveshafts maximize suspension travel and steering angles to radically extend the Maxx performance envelope.
Steel Gear Differentials - The Maxx's 4-gear differentials are sealed and filled with heavyweight oil, which provides a limited-slip effect for maximum traction on loose surfaces. The reinforced differentials use 7mm output shafts along with large-pitch, large-diameter, steel ring and pinion gears for ultimate reliability.
Model Specifications
| Name: | Maxx |
|---|---|
| Type: | Monster Truck |
| Speed: | 60+ mph with 4s LiPo battery and optional gearing |
| Skill Level: | 4 |
| Scale: | 1/10 |
| Weight: | 10.40 pounds (4.7 kg) |
| Length: | 22.50 inches (572 mm) |
| Width: | 15.95 inches (405 mm) |
| Front Track: | 15.95 inches (405 mm) |
| Rear Track: | 15.95 inches (405 mm) |
| Height: | 9.12 inches (232 mm) |
Motor Specifications
| Name: | 540XL |
|---|---|
| Type: | 2400 Kv sensorless brushless |
| Weight: | 317 g (11.1 8 oz) |
| Length: | 3.58 inches (91 mm) |
| Diameter: | 1.41 inches (36 mm) |
| Shaft Size: | 5 mm |
| Connector Type: | 6.5 mm bullet connectors |
ESC Specifications
| Name: | Velineon VXL-4s |
|---|---|
| Type: | Brushless |
| Case Size: | 72 mm L x 59 mm W x 49 mm H |
| Weight: | 7.09 ounces (201 grams) |
| Motor Connectors: | 6.5 mm bullet connectors |
| Battery Connectors: | Traxxas High-Current Connectors |
Features
- VXL-4s™ Waterproof Electronic Speed Control
- 3s–4s LiPo compatible
- Built-in cooling fan
- Real-time telemetry via Traxxas Link
- Machined heat sinks
- 10-gauge silicone wire
- Integrated protection circuits
- LED status lights
- Velineon® 540XL Brushless Motor
- Long format brushless motor
- 4-pole 2400 Kv
- 5 mm output shaft
- Aluminum heat sink
- Cooling fan
- 55+ mph out of the box using single 4s LiPo battery (sold separately)
- 60+ mph with optional gearing and single 4s LiPo battery (sold separately)
- Traxxas Stability Management®
- Helps prevents spinouts and loss of control
- Adjusts from off to 100% assistance from the transmitter
- TQi™ 2.4 GHz High Output Radio System
- Traxxas Link enabled
- 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Multi-Function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Telemetry-ready 5-channel micro receiver
- Clipless Body Mount System
- Quick one-hand installation and removal
- Uses pivoting rear latch mechanism
- Eliminates body posts and clips
- Reinforced for extra protection against tearing
- Driveline
- Full-time shaft-driven 4-wheel drive
- Torque-Biasing Center Drive™ absorbs shocks and distributes power
- Sealed, silicone fluid-filled diffs with large module ring and pinion gears
- Splined outdrives attached with external thru-bolt method
- Heavy-duty Cush Drive™
- Extreme-duty telescoping driveshafts
- Splined aluminum center driveshaft
- Secure Motor Mounting System
- Precision, preset gear mesh adjustments
- Motor retention separate from gear mesh
- 17 mm keyed wheel hex with 5 mm nut
- Full-length motor cradle
- Modular Composite Chassis
- Extended design interlocks with front and rear bulkheads
- Absorbs and distributes impact energy
- Easy to service and access components
- Driveline is sealed in the chassis to keep out dirt and grit
- Easy Battery Access
- Extended battery tray accepts 6700 mAh 4-cell LiPo battery
- Battery is protected deep in the chassis
- Battery hold-downs pivot for easy access
- More secure than conventional retention systems
- Bumpers
- Tough energy absorbing front and rear bumpers
- Lower front and rear skids for impact and abrasion resistance
- Integrated nerf bars for side impact resistance
- Wheelie bar with integrated carry handle
- Large-scale high-output steering servo
- 285 oz-in of torque
- 0.18 sec transit speed
- Triangulated mounting system to fully support case
- Heavy-duty double-shear bellcranks
- Suspension
- WideMaxx® double-shear suspension arms
- 1.57" (40 mm) wider for improved handling
- Tough composite formula resists impact damage, even in cold weather
- Engineered to optimize suspension travel and steering angles
- All critical suspension points have double shear strength
- 4 mm machined pivot balls
- C-hub and steering block geometry maximizes steering angle
- Fixed, high-strength camber and toe links
- Steel upper and lower tie bars
- GT-Maxx® Shocks
- Machined aluminum threaded body
- Extra-large bore and capacity
- Large-diameter damper shaft
- Lower seal cartridge with dual X-rings
- Adjustable upper spring retainer
- Plastic shock caps with pivot balls
- Lower spring perches bolted on
- Wheels/Tires
- Tough 2.8": wheels with keyed 17 mm hex receptor
- Sledgehammer® extreme tires for sure-footed traction
- 1-piece foam inserts
- Pre-glued and ready for action
- TSM® rated
- Full contact sealed bearings used in exposed locations
- 55+ mph out of the box using single 4s LiPo battery (sold separately)
- 60+ mph with optional gearing and single 4s LiPo battery (sold separately)
- VXL-4s™ Waterproof Electronic Speed Control
- 3s–4s LiPo compatible
- Built-in cooling fan
- Real-time telemetry via Traxxas Link
- Machined heat sinks
- 10-gauge silicone wire
- Integrated protection circuits
- LED status lights
- Velineon® 540XL Brushless Motor
- Long format brushless motor
- 4-pole 2400 Kv
- 5 mm output shaft
- Aluminum heat sink
- Cooling fan
- Traxxas Stability Management®
- Helps prevents spinouts and loss of control
- Adjusts from off to 100% assistance from the transmitter
- TQi™ 2.4 GHz High Output Radio System
- Traxxas Link enabled
- 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Multi-Function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Telemetry-ready 5-channel micro receiver
- Clipless Body Mount System
- Quick one-hand installation and removal
- Uses pivoting rear latch mechanism
- Eliminates body posts and clips
- Reinforced for extra protection against tearing
- Driveline
- Full-time shaft-driven 4-wheel drive
- Torque-Biasing Center Drive™ absorbs shocks and distributes power
- Sealed, silicone fluid-filled diffs with large module ring and pinion gears
- Splined outdrives attached with external thru-bolt method
- Heavy-duty Cush Drive™
- Extreme-duty telescoping driveshafts
- Splined aluminum center driveshaft
- Secure Motor Mounting System
- Precision, preset gear mesh adjustments
- Motor retention separate from gear mesh
- 17 mm keyed wheel hex with 5 mm nut
- Full-length motor cradle
- Modular Composite Chassis
- Extended design interlocks with front and rear bulkheads
- Absorbs and distributes impact energy
- Easy to service and access components
- Driveline is sealed in the chassis to keep out dirt and grit
- Easy Battery Access
- Extended battery tray accepts 6700 mAh 4-cell LiPo battery
- Battery is protected deep in the chassis
- Battery hold-downs pivot for easy access
- More secure than conventional retention systems
- Bumpers
- Tough energy absorbing front and rear bumpers
- Lower front and rear skids for impact and abrasion resistance
- Integrated nerf bars for side impact resistance
- Wheelie bar with integrated carry handle
- Large-scale high-output steering servo
- 285 oz-in of torque
- 0.18 sec transit speed
- Triangulated mounting system to fully support case
- Heavy-duty double-shear bellcranks
- Suspension
- WideMaxx® double-shear suspension arms
- 1.57" (40 mm) wider for improved handling
- Tough composite formula resists impact damage, even in cold weather
- Engineered to optimize suspension travel and steering angles
- All critical suspension points have double shear strength
- 4 mm machined pivot balls
- C-hub and steering block geometry maximizes steering angle
- Fixed, high-strength camber and toe links
- Steel upper and lower tie bars
- GT-Maxx® Shocks
- Machined aluminum threaded body
- Extra-large bore and capacity
- Large-diameter damper shaft
- Lower seal cartridge with dual X-rings
- Adjustable upper spring retainer
- Plastic shock caps with pivot balls
- Lower spring perches bolted on
- Wheels/Tires
- Tough 2.8" wheels with keyed 17 mm hex receptor
- Sledgehammer® extreme tires for sure-footed traction
- 1-piece foam inserts
- Pre-glued and ready for action
- TSM® rated
- Full contact sealed bearings used in exposed locations
In The Box
- Maxx Ready-To-Race monster truck with Traxxas 540XL brushless motor
- VXL-4s waterproof electronic speed control with integrated telemetry
- TQi™ 2.4 GHz radio system
- High quality maintenance tools
Needed to Complete
- LiPo Battery
Traxxas recommends a 4-cell 14.8 V Power Cell LiPo battery for maximum performance. A 3-cell 11.1 V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.
- Charger
The Traxxas EZ-Peak® Live charger 2971 is recommended for easy and fast charging performance.
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
Additional Information
Oversized Item: |
Yes |
Model Type: |
Truck |
Drive: |
4WD |
Model Type: |
Monster Truck |
Model Type: |
Off Road Truck |
Completeness: |
RTR-Ready to Run |
Power: |
Electric |
Scale: |
1/10th |
