Description

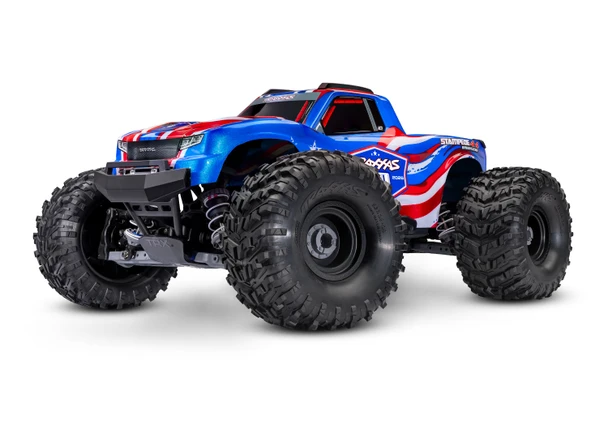

TRA67454-4-C TRAXXAS 1/10 Stampede 4x4 Brushless
THIS ITEM DOES NOT QUALIFY FOR FREE SHIPPING
Note: Graves RC Coupons are not applicable with this product
Introduction
Stampede® 4X4 Brushless is the king of 1/10 scale monster trucks with its towering monster truck stance and unstoppable 4WD traction. Now Stampede is stronger than ever with the new Velineon® 3s brushless power system. 4-wheel burnouts and 50+ mph speed are no problem for Stampede’s Extreme Heavy-Duty suspension and driveline which deliver pack-after-pack fun all day long.


New 3s Brushless Horsepower - Stampede 4X4’s new Velineon 3s power system is a brushless powerhouse that transforms 3s LiPo power into brutal acceleration and 50+ mph speed, out of the box with no gearing changes required. The fan-cooled VX3 speed control is feature-packed and simple to use with Traxxas EZ-Set® one-button programming. The powerful V3200 motor is the pinnacle of speed, power, and efficiency.

New GTR Shocks - New composite GTR shocks complement Stampede 4X4’s long-travel suspension to create a supremely plush ride. GTR shocks hold over 70% more oil than standard Ultra Shocks for consistent damping performance. X-ring seals keep oil in and dirt out for smooth suspension compression and rebound. Spring preload and ride height changes are as simple as turning the threaded collar and the spring retainers are captured with a screw so they can't pop off.

New Talon MXT Tires - Stampede’s new Talon MXT tires put the power to the ground with massive traction and high-speed performance. The angled tread pattern creates extreme forward bite on loose surfaces with an open block design to clear away mud and debris. The tires come mounted and glued to rugged monster truck wheels with removable center hubs.

Extreme Heavy-Duty Upgrade Kit - Stampede 4X4 Brushless gets a massive boost in strength from its factory-installed Extreme Heavy-Duty Upgrade Kit. The kit replaces key driveline and suspension components with beefed-up parts made for ultimate strength and durability. From the HD suspension arms to the steel wheel hubs, this driveline is built to take on 3s brushless power and come back for seconds.


Clipless Painted Body - Stampede 4x4's aggressive monster truck body comes trimmed and pre-painted with decals already applied. Tough internal reinforcements maintain the body's integrity while roof skids provide rollover protection to keep the body looking fresh.

Talon MXT Tires and Black Wheels - Large Talon MXT tires combine excellent ground clearance with true mud-clinging fun. The open-block tread design claws into gravel, dirt, and grass for sure-footed 4x4 traction on nearly any surface. The heavy-duty rubber compound is specially formulated to resist tearing and bonds exceptionally well to the aggressive black wheels.

Secure Body Latch - Stampede's clipless body mounts on specially designed shock towers. The easy-to-use latch unlocks instantly with the quick swipe of a thumb and locks again with a noticeable detent to let you know that its securely fastened.

Wheelie Bar - A wheelie bar is mandatory equipment to handle Stampede 4x4's wheel-standing torque. Ride never-ending wheelies on pavement and keep the wheels-up action under control during hard acceleration. The integrated wheelie bar has the perfect amount of flex to absorb impacts on less-than-perfect landings. It also features a convenient handle to transport Stampede to the next adventure.

Extreme Suspension Components - Stampede 4x4 Brushless comes outfitted with the Extreme Heavy-Duty Upgrade Kit already installed for ultimate strength and durability. The axle carriers, caster blocks, and steering blocks are beefed up with more material and stronger construction.

Heavy-Duty Suspension Arms - Molded from our toughest composite material, Stampede 4x4's heavy-duty suspension arms provide just the right amount of flex to resist breaking-even in cold weather! From skate parks to 10-foot ramps, these heavy-duty arms stand up to even the most punishing drivers for non-stop fun behind the wheel.

3-Channel TQi Sport Receiver - The TQi Sport receiver is compatible with all TQi and TQi Sport transmitters. A built-in failsafe returns the throttle to neutral and holds the steering in the last known position in the event of a signal loss. The receiver features full inclinometer and telemetry functionality accessible through a TQi radio using the Traxxas Link app.

Dual-Bellcrank Steering - A dual-bellcrank design pivots on rubber-sealed ball bearings for smooth action in the harshest conditions. The integrated cam-operated servo saver protects the servo gears from crash impacts without sacrificing steering precision.

Waterproof Receiver Box - Stampede's waterproof receiver box keeps the receiver safe and dry while still allowing easy access for maintenance. The antenna and servo wires route neatly through a patented water-tight seal for true all-weather fun.

Metal Gear Servo - Stampede 4x4 Brushless features a new servo with the durability of an all-metal gear rain. The new servo delivers quick, precise control with the security and convenience of fully waterproof construction.

Modular Chassis - Stampede 4x4's modular design creates a chassis that's both strong and easy to maintain. The front and rear bulkheads remove easily with just a few screws. In less than a minute using a power screwdriver, you'll have full access for easy service and adjustment.

VX3 Electronic Speed Control - The fully waterproof VX3 ESC transforms 11.1 volts of LiPo power into 50+ mph performance with the simplicity of Traxxas' EZ-Set one-button programming. A large aluminum heat sink with cooling fan keeps temperature down for longer run times. The VX3 comes loaded with high-tech features like race-inspired High-Resolution Linear Braking and real-time telemetry via Traxxas Link.

Clipless Battery Strap - Stampede 4x4 holds batteries securely in place with the convenience of a rugged clipless battery strap. Swing the heavy-duty strap up and out of the way to swap batteries. Once loaded, just snap the tab into the latch and your battery stays safe and secure until you release it.

Velineon V3200 Motor - Designed for 3-cell LiPo power, the V3200 motor is optimized for extreme power and efficiency with a large 5mm output shaft. Ultra-high temperature sintered Neodymium magnets provide massive torque and linear power. The unique low-maintenance design features high-speed ball bearings with both internal and extrenal cooling fans for consistent high-power output, run after run.

Chassis Nerf Bars - Rugged side nerf bars protect the chassis from rocks and other impacts. Special channels in the nerf bars support the sides of the body for a tighter, more secure fit.

Fixed Gear Adapter - Fixed gear adapters take the guesswork out of setting your gear mesh. The fixed positioning keeps the gear mesh tight, even after the harshest landings. The innovative motor mount keeps the brushless motor locked firmly in place with just a single screw for easy maintenance.

Durable One-Piece Camber Links - Durable one-piece camber links are perfect for bashing because they maintain proper suspension geometry and never require adjustments. Captured rod ends provide unmatched durability and they won't pop off.

Maxx-Duty Driveshafts - Stampede 4x4's Maxx-duty driveshafts with beefed-up u-joints are built to handle brushless power without breaking a sweat. Large 6mm axles key into the included steel wheel hexes for unmatched strength and durability.

Steel-Gear Differentials - Sealed front and rear differentials utilize steel-gear internals for maximum durability. Silicone gaskets and X-ring seals allow you to tune the amount of locking action by varying the viscosity of the fluid inside the differentials.

Rubber-Sealed Ball Bearings - Maximizing speed requires as little friction as possible. Stampede 4x4 Brushless rides on precision rubber-sealed bearings for super low-friction performance and maximum protection in dusty environments. they are used throughout the truck and are virtually maintenance free.

Rigid Center Driveshaft - The one-piece center driveshaft is ultra-rigid for maximum power transfer between the differentials, but still flexible enough to resist impact damage. A central bearing support ensures the driveshaft runs straight and true, even at high RPM.

Torque-Biasing Center Drive - Stampede 4x4's Torque-Biasing Center Drive absorbs shocks to improve driveline durability and distributes equal power to all four wheels for mind-blowing acceleration. It's easy to tune for different traction surfaces by replacing the oil in the sealed housing.

Heavy-Duty Steel Spur Gear - Designed from the start o handle big brushless horsepower, Stampede 4x4's driveline uses a steel spur gear with large 0.8 module/32-pitch teeth for reliability no matter how much power you pour on.

Reinforced Front and Rear Bumpers - Tough reinforced bumpers protect the chassis against impacts. The specially designed front bumper provides ahigh approach angle that allows Stampede to climb up and over obstacles with ease.

Model Specifications


| Name: | Stampede 4X4 Brushless |
|---|---|
| Type: | Monster Truck |
| Speed: | 35+ mph with 2s LiPo battery, 50+ mph with 3s |
| Skill Level: | 1 |
| Scale: | 1/10 |
| Weight: | 5.98 pounds (2.7 kg) |
| Length: | 17.87 inches (454 mm) |
| Width: | 13.10 inches (333 mm) |
| Front Track: | 13.10 inches (333 mm) |
| Rear Track: | 13.10 inches (333 mm) |
Motor Specifications

| Name: | Velineon V3200 (patent pending) |
|---|---|
| Motor Type: | Sensorless brushless |
| Weight: | 7.48 ounces (212 g) |
| Length: | 3.15 inches (80 mm) |
| Diameter: | 1.53 inches (39 mm) |
| Shaft Size: | 5 mm |
| Connector Type: | 3.5 mm Bullet |
ESC Specifications

| Name: | VX3 Electronic Speed Control |
|---|---|
| ESC Type: | Brushless |
| Voltage Range: | 2-cell or 3-cell LiPo (NiMH not supported) |
| Case Size: | 2.40″ (61 mm) x 2.09″ (53 mm) x 1.69″ (43 mm) |
| Weight: | 4.20 ounces (119 g) |
| BEC Voltage: | 6.0 volts |
| Motor Connectors: | 3.5 mm Bullet |
| Battery Connectors: | Traxxas High-Current Connector |
Features
- 35+ mph with 2s LiPo. 50+ mph with 3s LiPo (no gearing change required)
- Clipless Body
- Tough reinforced bumpers
- Reinforced inner cage
- Rugged roof rollover protector
- Tailgate protector
- Quick and easy removal
- Holds tight for intense action
- Extreme Heavy-Duty Upgrade Kit Installed
- Caster blocks, axle carriers, and steering blocks beefed up with extra material
- Maxx duty® driveshafts
- Oversize diameter
- 6 mm axles
- Steel wheel hexes
- Self Righting
- Rocks the truck back and forth until it rights itself
- Works by pressing a button on the transmitter
- NEW TQi™ Sport 2.4 GHz 2-Channel Radio System
- Removable grip adapter
- High-output signal delivers outstanding range
- Simple one-button programming
- 30-model memory
- 3-channel micro receiver with fail-safe security
- Traxxas Stability Management® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the truck
- Activated or deactivated directly from the transmitter
- NEW Velineon® VX3 Waterproof Electronic Speed Control
- Large aluminum heat sink with cooling fan
- Three programmable drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Traxxas EZ-Set® one-button setup
- Telemetry capable with optional accessories
- High-Resolution Linear Braking
- Compatible with 2s and 3s LiPo batteries (NiMH not supported)
- NEW Velineon V3200 Brushless Motor
- Ultra high-temperature sintered Neodymium magnets provide massive torque and linear power
- 3200 Kv optimized for power and efficiency in 1/10th scale vehicles
- 5 mm output shaft
- Internal & external cooling fans for longer run times
- Low-maintenance design
- Efficient, high-speed ball bearings
- Chassis
- Modular composite tub design
- Secure clipless battery strap
- Reinforced wheelie bar
- High-approach bumpers
- Integrated nerf bars for side impact resistance
- Suspension
- NEW Composite GTR Shocks
- Threaded shock collars for precise ride height adjustment
- Large oil capacity for consistent damping
- White powder-coated springs
- Spring retainers captured with a screw
- 3.5 mm shaft
- Durable solid camber links eliminate the need for adjustment
- Captured rod ends won't pop off
- Steering
- NEW 2057 waterproof, metal-gear servo
- Full metal gear train for improved durability
- Dual bellcrank design with integrated servo saver
- Driveline
- NEW Torque-Biasing Center Drive
- Full-time shaft-driven 4-wheel drive
- Oil-filled steel gear front and rear differentials
- Heavy-duty steel pinion and spur gears
- One-piece center driveshaft with center bearing support
- Wheels and Tires
- Large 2.8″ black monster truck wheels
- Removable center caps
- NEW Talon MXT Tires
- Tall monster truck profile
- Angled tread pattern for massive forward bite
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
In The Box
- Stampede 4X4 Brushless with VX3 ESC and V3200 motor
- TQi Sport 2.4 GHz radio system
- High quality maintenance tools
Needed to Complete
- Batteries
Stampede 4X4 Brushless requires a single 2-cell or 3-cell LiPo battery.
- Charger
The Traxxas EZ-Peak® charger 2970 is recommended for easy and fast charging performance.
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter
Additional Information
Oversized Item: |
Yes |
Model Type: |
Monster Truck |
Model Type: |
Truck |
Model Type: |
Off Road Truck |
Drive: |
4WD |
Completeness: |
RTR-Ready to Run |
Power: |
Electric |
Scale: |
1/10th |
