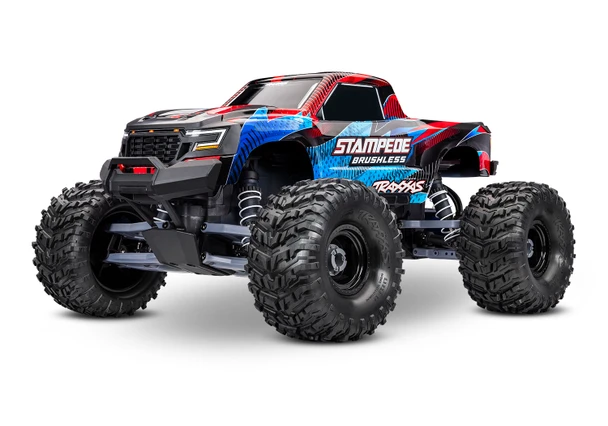

TRA136454-4RED TRAXXAS 1/10 Stampede 2WD Brushless Monster Truck - Red
THIS ITEM DOES NOT QUALIFY FOR FREE SHIPPING
Note: Graves RC Coupons are not applicable with this product
Description
As the original Ready-To-Race® monster truck, Stampede® set the standard for all that followed. Now there’s an all-new Stampede with strength and durability modeled after the legendary Maxx® lineup and backed by Velineon® 3s brushless power. Stampede 2WD was redesigned from the ground up to make 3s power accessible and fun for all drivers. From skate park bash sessions to 50+mph speed blasts, Stampede puts the power down like never before to usher in a new era of monster truck performance.









Body Reinforcements - Stampede comes battle-hardened and ready for action with large injection-molded front grille and rear tailgate body reinforcements. Not only do the reinforcements look great, but they also provide a large mounting point for the clipless latches to spread out impact forces.

Black Monster Truck Wheels - Large 2.8" monster truck wheels with removable center insert help give Stampede its towering stance. Front and rear wheel offsets are the same, eliminating the need for separate wheel & tire sets.

Wheelie Bar - A wheelie bar is an absolute necessity on a vehicle with the power and speed potential of Stampede 2WD Brushless. The reinforced wheelie bar provides additional impact resistance for the bumper and doubles as a convenient carry handle. Larger wheels provide additional stability for Stampede's epic wheelies.

Double-Wishbone Suspension - Stampede's HD suspension arms are molded from our toughest composite to provide just enough flex to resist breaking. The double wishbone design is stronger than standard camber links with double-shear connections for even greater impact resistance and stability. The GTR shocks mount inside the arms for added protection.

Hex Hardware - Stampede's hex-drive hardware provides a more positive and secure connection than other fasteners. The black-oxide coating provides a rust resistant high-tech look and feel.

3-Channel TQi Sport Receiver - The TQi Sport receiver is compatible with all TQi and TQi Sport transmitters. A built-in failsafe returns the throttle to neutral and holds steering in the last known position in the even of signal loss.

Clipless Body Mounts - Stampede's clipless body mounts are integrated into the shock towers for extra rigidity. New Bash Locks secure the latches in place for ultimate security during extreme bashing and high-altitude flight.

Waterproof Receiver Box - Stampede's waterproof receiver box is located between front shock towers for maximum protection. A patented O-ring seal keeps water out, giving you the freedom to live out your wildest adventures, regardless of the weather.

Bellcrank Steering - Stampede's high-performance bellcrank steering system nearly eliminates bump steer for precise wheel placement and increased cornering stability. A cam-operated servo saver increases steering precision while protecting the servo against impacts.

Extreme HD Components - Engineered for maximum strength, Extreme Heavy-Duty components fortify Stampede 2WD with a full complement of driveline and suspension upgrades designed to work together as a complete package. Stampede sets a new standard for durability in extreme bash conditions.

Metal Gear Servo - Stampede 2WD features a new metal-gear servo with the durability of an all-metal gear train. The servo delivers quick, precise control with the security and convenience of fully waterproof construction.

Clipless Battery Strap - Stampede holds batteries securely in place with the convenience of a rugged clipless battery strap. Swing the heavy-duty strap up and out of the way to swap batteries. Once loaded, just snap the tab into the latch and the battery stays secure until you release it.

Chassis Nerf Bars - In addition to side impact protection, Stampede's chassis nerf bars deliver support for the clipless body. The nerf bars also provide a secure mounting point for optional underglow lighting (sold separately).

Internal Wire Routing - Stampede's wiring runs through an integrated routing channel to keep everything secure and looking great. There are even provisions for the optional LED light kit (sold separately).

Integrated Shock Towers - Stampede's shock towers are integrated into the chassis to increase torsional rigidity. A more rigid structure reduces flex and twist, allowing the suspension to soak up impacts without upsetting the chassis. The shocks and suspension arms connect to the chassis through double-shear connections for superior strength.

VX3 Electronic Speed Control - The fully waterproof VX3 ESC transforms 11.1 volts of LiPo power into 50+ mph performance with the simplicity of Traxxas' EZ-Set one-button programming. A large aluminum heat sink with cooling fan keeps temperatures down for longer run times. The VX3 comes loaded with high-tech features like race-inspired High-Resolution Linear Braking and real-time telemetry via Traxxas Link (requires optional wireless module, sold separately).

GTR Shocks - Stampede features XX-long GTR shocks at all four corners for increased suspension travel and a plush ride. GTR shocks hold over 70% more il than standard Ultra Shocks for consistent damping performance. Spring preload and ride height changes are as simple as turning the threaded collar and the spring retainers are captured with a screw so they can't pop off.

Extreme HD Driveshafts - Stampede's Extreme HD driveshafts are beefed up in critical areas to handle the outrageous power of the Velineon 3s brushless power system. The large-diameter half shafts offer excellent articulation and suspension travel while putting massive torque to the ground.

Velineon V3200 Motor - Designed for 3-cell LiPo batteries, the V3200 motor is optimized for extreme power and efficiency with a large 5mm output shaft. The patent-pending design uses ultra-high temperature sintered Neodymium magnets for massive torque and linear power. The unique low-maintenance design feature high-speed ball bearings and an integrated cooling fan for consistent power, run after run.

Magnum 272 Transmission - The Magnum 272 transmission features all metal gear internals riding on ultra-smooth sealed ball bearings and the upgraded top shaft from the 272R racing transmission. the sealed gearbox protects the transmission components from dirt and rocks.

32-Pitch Gearing - Stampede 2WD is built for extreme power with a large 5mm motor output shaft and 32-pitch pinion and spur gears. Nearly 1.5x larger than standard 48-pitch gears, Stampede's 32-pitch gears deliver maximum durability with reliable, long-lasting performance.

Model Specifications


| Name: | Stampede 2WD Brushless |
|---|---|
| Type: | Monster Truck |
| Speed: | 35+ mph with 2s LiPo battery, 50+ mph with 3s |
| Skill Level: | 1 |
| Scale: | 1/10 |
| Weight: | 6.09 pounds (2.76 kg) |
| Length: | 20.28 inches (515 mm) |
| Width: | 13.86 inches (352 mm) |
| Track: | 13.86 inches (352 mm) |
| Height: | 8.34 inches (212 mm) |
Motor Specifications

| Name: | Velineon V3200 (patent pending) |
|---|---|
| Motor Type: | Sensorless brushless |
| Weight: | 7.48 ounces (212 g) |
| Length: | 3.15 inches (80 mm) |
| Diameter: | 1.53 inches (39 mm) |
| Shaft Size: | 5 mm |
| Connector Type: | 3.5 mm Bullet |
ESC Specifications

| Name: | VX3 Electronic Speed Control |
|---|---|
| ESC Type: | Brushless |
| Voltage Range: | 2-cell or 3-cell LiPo (NiMH not supported) |
| Case Size: | 2.40″ (61 mm) x 2.09″ (53 mm) x 1.69″ (43 mm) |
| Weight: | 4.20 ounces (119 g) |
| BEC Voltage: | 6.0 volts |
| Motor Connectors: | 3.5 mm Bullet |
| Battery Connectors: | Traxxas High-Current Connector |
Features
- 35+ mph with 2s LiPo. 50+ mph with 3s LiPo (no gearing change required)
- NEW Clipless Monster Truck Body with Bash-Locks™
- Clipless latches hold tight and release in seconds
- NEW Bash-Locks secure the clipless latches firmly into place for extreme bashing
- Injection-molded grille and tailgate body reinforcements
- Superior body protection for extreme bashing
- NEW Monocoque Chassis Design
- Shock towers are integrated into the chassis
- Reinforced crossbar supports
- Double-shear shock mounts
- Longer and wider footprint
- Increases handling and high-speed stability
- Ultra-tough front and rear bulkheads and skid plates
- Integrate seamlessly into the chassis
- Reinforced front bumper and fixed wheelie bar
- NEW Velineon® VX3 Waterproof Electronic Speed Control
- Large aluminum heat sink with cooling fan
- Three programmable drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Traxxas EZ-Set® one-button setup
- Telemetry capable with optional accessories
- High-Resolution Linear Braking
- Compatible with 2s and 3s LiPo batteries (NiMH not supported)
- NEW Velineon V3200 Brushless Motor (patent pending design)
- Ultra high-temperature sintered Neodymium magnets provide massive torque and linear power
- 3200 Kv optimized for power and efficiency in 1/10th scale vehicles
- 5 mm output shaft
- Internal cooling fan for longer run times
- Low-maintenance design
- Efficient, high-speed ball bearings
- TQi™ 2.4 GHz 2-Channel Radio System
- High-output signal delivers outstanding range
- Multi-function knob
- 30-model memory
- 3-channel micro receiver with fail-safe security
- Watertight receiver box with O-ring sealed cover
- NEW Punch Control™
- Dials in the perfect launch for any surface
- Adjusts the amount of throttle applied relative to trigger pull
- Adjusts from 0-100% using transmitter's Multi-Function knob
- Traxxas Stability Management® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on power slides
- Never dulls throttle or slows the truck
- NEW Double-Wishbone Suspension Design
- Maintains proper suspension geometry
- Allows huge suspension travel
- Double-shear connections
- Extreme HD suspension components and arms
- Beefed-up with extra material for superior strength
- NEW Battery Tray Design
- Battery is protected deep in the chassis
- Rugged battery strap latches shut to secure batteries
- No battery clips to lose
- Accepts many 2s and 3s battery configurations
- Steering
- NEW 2057 waterproof, metal-gear servo
- Full metal gear train for improved durability
- NEW dual-bellcrank design with integrated servo saver
- Transmission and Driveline
- Magnum 272™ metal-gear transmission
- Torque-Control™ slipper clutch system
- NEW 32-pitch spur and pinion gear
- NEW heavy-duty top shaft
- Planetary gear differential with steel ring gear
- Sealed gearbox protects the transmission with beefed up motor guard
- External gear cover with easy clutch access
- NEW XX-long Composite GTR Shocks
- Threaded shock collars for precise ride height adjustment
- Large oil capacity for consistent damping
- White powder-coated springs
- Spring retainers captured with a screw
- 3.5 mm shaft
- Wheels and Tires
- Large 2.8″ black monster truck wheels
- Removable center caps
- Same wheel offset front and rear
- NEW Talon MXT Tires
- Tall monster truck profile
- Angled tread pattern for massive forward bite
- Precision Hex Hardware
- Rubber-Sealed Ball Bearings
In The Box
- Stampede 2WD monster truck with VX3 ESC and V3200 motor
- TQi 2.4 GHz radio system
- High quality maintenance tools
Needed to Complete
- Batteries
Stampede 2WD Brushless requires a single 2-cell or 3-cell LiPo battery (NiMH not supported)
- Charger
The Traxxas EZ-Peak® charger 2970 is recommended for easy and fast charging performance.
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
Additional Information
Oversized Item: |
Yes |
Model Type: |
Monster Truck |
Model Type: |
Off Road Truck |
Model Type: |
Truck |
Drive: |
2WD |
Completeness: |
RTR-Ready to Run |
Power: |
Electric |
Scale: |
1/10th |
