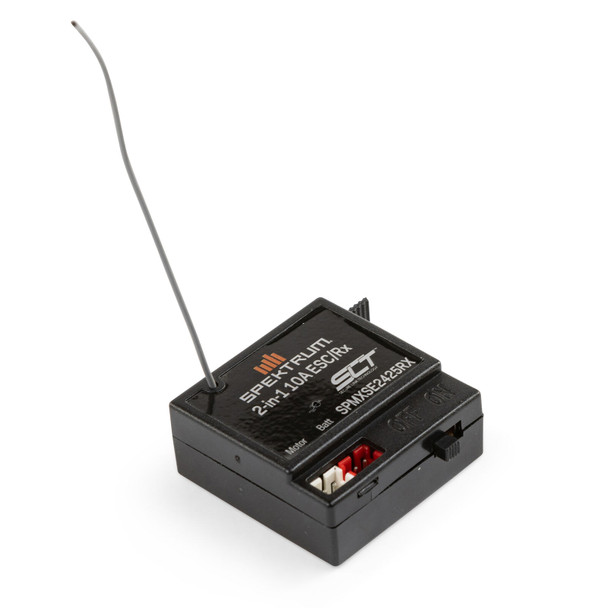

SPMXSE2425RX SPEKTRUM 10 Amp Brushed 2-in-1 ESC / SLT Receiver Combo
Note: Graves RC Coupons are not applicable with this product
Description
The Spektrum 2-in-1 unit is a combination brushed speed control and 2.4GHz 3-channel receiver. SLT2 (Secure Link Technology) protocol and 10-amp rated and compatible 2S LiPo batteries. Can be programmed for forward/brake or forward/brake/reverse. Includes a port for brake lights and a port for reverse lights. Uses PH 2.0 connectors. BEC out is 1-amp/5 volts.
Specifications
- Amperage - 10A
- BEC - Yes
- BEC Continuous Current - 1A
- BEC Type - Switch-Mode
- BEC Voltage - 5V
- Brakes - Adjustable Drag Brake
- Connector Type - PH 2.0 (High-Current Ultra Micro)
- Forward - Yes
- Low-Voltage Cutoff Programmable - No
- Maximum Continuous Current - 10A
- Motor Type - Brushed
- Output Connector - PH 2.0
- Product Height - 0.6" (15 mm)
- Product Length - 1.2" (30 mm)
- Product Width - 1.2" (30 mm)
- Programmable - No
- Reverse - Yes
- Technology - SLT Protocol
Replacement or Accessory Part for:
- Axial 1/24 AX24 XC-1 4WS Models
- Axial 1/24 SCX24 4WD Models
Product Details
In The Box
- 10 Amp Brushed 2-in-1 ESC / SLT Receiver Combo - 1
Additional Information
ESCs & BECs: |
Brushed ESC |
Package Includes: |
Rx-Receiver Plus ESC |
Frequency: |
2.4 GHz |
Radio Use: |
Surface |
Radio Systems: |
Receivers |
