Description

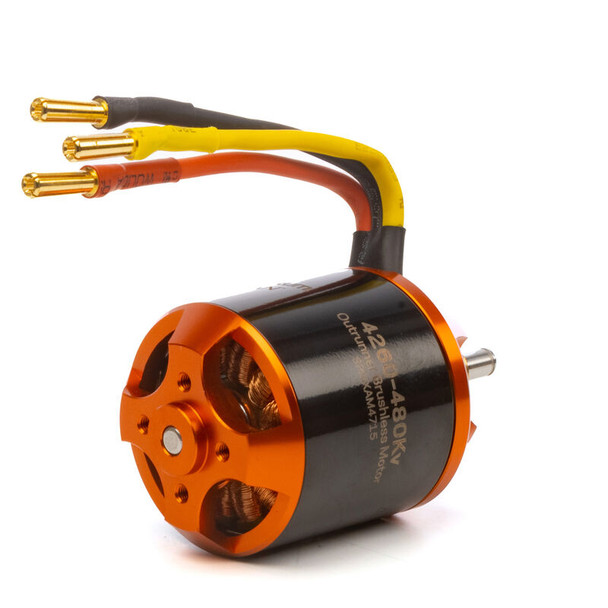

SPMXAM4715 SPEKTRUM Avian 4260-480Kv Outrunner Brushless Motor
Note: Graves RC Coupons are not applicable with this product
Benefits
- Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
- Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
- Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.
Features
- Lightweight design
- Powerful and durable Rare-Earth Neodymium magnets
- 14-pole stator for smooth and precise propulsion
- Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
- Perfect match for the Spektrum Smart Avian 60 amp ESC
- Perfect electric conversion upgrade for .55 size glow combustion power systems
Important Specs
- Recommended Voltage Range – 18.5-22.2V / 5-6S LiPo
- Recommended Propeller Range – 13x10 to 15x8 Electric Propeller
- Recommended Model Flying weight – 3D 2720g (6 lbs) - Sport 4310g (9.5 lbs)
- Max Wattage – 810w
- Max Current – Max Burst Amps (105A) Max Continuous Amps (60A)
Specifications
| Application | Sport airplanes up to 9.5lbs (4310g) and 3D airplanes up to 6lbs (2720g) |
| Connector Type | 4mm Bullet |
| Input Voltage | 18.5-22.2V (5-6S LiPo) |
| Maximum Burst Current | 1850W |
| Maximum Continuous Current | 830W |
| Motor Type | Brushless |
| Outer Diameter | 1.7" (43 mm) |
| Product Length | 2.4" (61 mm) |
| Product Weight | 9.5oz (268g) |
| Recommended Prop Range | 13x10E - 15x8E |
| RPM/Volt (Kv) | 480 |
| Shaft Diameter | 0.2" (5 mm) |
| Shaft Length | 0.67" (17 mm) |
