Description

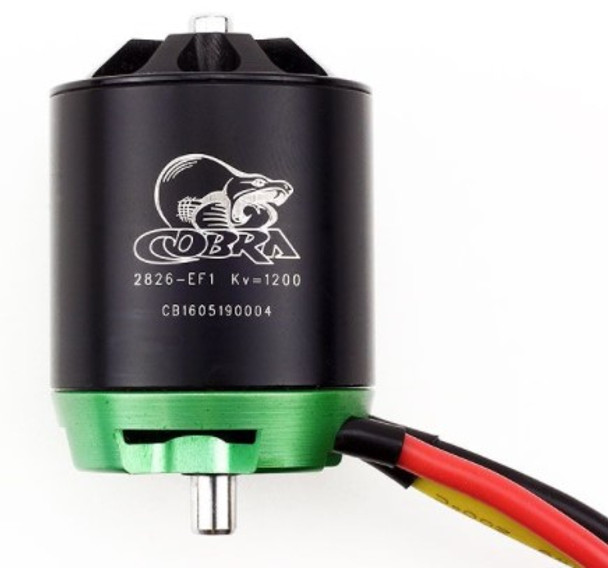

INDC-2826EF1 INNOV8ATIVE DESIGNS Cobra C-2826-EF1 Brushless Motor, Kv=1200
Includes:
- Heavy Duty 3mm Thick Cross Style Motor Mount
- Four M3x6mm Motor Mount Screws
- Bolt-On style threaded prop adapter with 4 screws
- Three female 3.5mm bullet connectors
- Three pieces of heat-shrink tubing
| Cobra 2826/8 Motor Specifications | |
|---|---|
| Stator Diameter | 28.0 mm (1.102 in) |
| Stator Thickness | 26.0 mm (1.024 in) |
| Number of Stator Slots | 12 |
| Number of Magnet Poles | 14 |
| Motor Wind | 7 Turn Delta |
| Motor Kv Value | 1200 RPM per Volt |
| No Load Current (Io) | 3.23 Amps @ 15 Volts |
| Motor Resistance (Rm) per Phase | 0.033 Ohms |
| Motor Resistance (Rm) Phase to Phase | 0.022 Ohms |
| Maximum Continuous Current | 68 Amps |
| Max Continuous Power (3-cell Li-Po) | 750 Watts |
| Max Continuous Power (4-cell Li-Po) | 1020 Watts |
| Motor Weight | 176 grams (6.21 oz.) |
| Outside Diameter | 35.0 mm (1.378 in.) |
| Shaft Diameter | 5.00 mm (0.197 in.) |
| Motor Body Length | 46.0 mm (1.811 in.) |
| Overall Shaft Length | 52.0 mm (2.047 in.) |
| Motor Timing | 5-15 degrees |
| PWM Frequency | 8 KHz |
