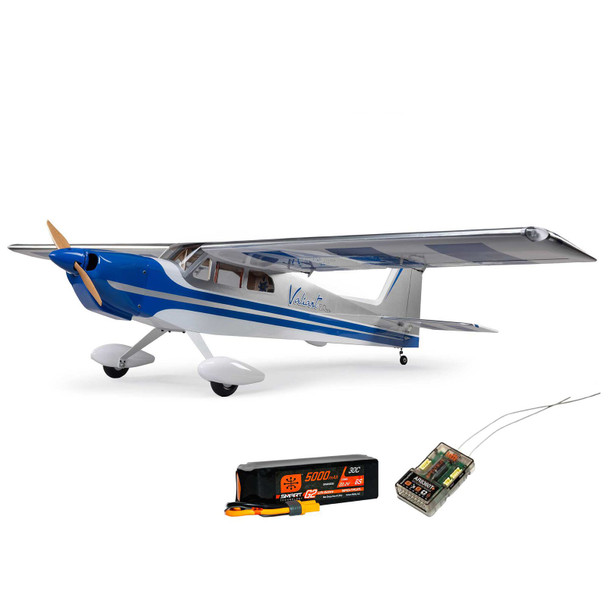

HAN-4013 HANGAR 9 Valiant 20cc EP PNP with Spektrum AR8360T+ Receiver and 6S 5000mAh 30C LiPo Battery Combo

HAN-4013 HANGAR 9 Valiant 20cc EP PNP with Spektrum AR8360T+ Receiver and 6S 5000mAh 30C LiPo Battery Combo

THIS IS AN OVERSIZED ITEM THAT DOES NOT QUALIFY FOR FREE SHIPPING

Note: Graves RC Coupons are not applicable with this product

Introduction

The Hangar 9® Valiant 20cc is a scaled-down yet still giant scale version of the popular 30cc model. This makes it a more practical and affordable alternative that’s compatible with popular 20cc gas engines and equivalent 4S-6S electric power systems. It features the benefits of lightweight and rigid built-up wood construction that’s available in both an ARF and a time-saving EP PNP version!

Overview

The original Hangar 9® Valiant 30cc was a beloved and highly reviewed model due to its classic yet modern looks, as well as unexpected aerobatic capability, plus smooth and stable flight performance. However, the 108-inch wingspan made it difficult for many pilots to store and transport. The Valiant 20cc is a scaled-down version with an 86.5 inch (2.2m) wingspan that still offers a giant-scale experience – but in a more practical size for everyday flying. It features the advantages of lightweight, stiff, and strong wood construction that's covered with genuine UltraCote film. Plus, it's available in an ARF version that allows you to install the glow, gas, or electric power system and electronics you prefer, or in a time and money-saving EP PNP version that's equipped with six factory-installed Spektrum servos, a 4S-6S compatible Avian motor, and a Smart ESC.

The Valiant design is well known for its proven versatility due to its incredibly smooth and stable flying manners, yet also unexpected and excellent aerobatic capability. A semi-symmetrical airfoil provides outstanding handling and wind penetration, while the operational flaps can deliver STOL-like takeoff and landing performance. The flaps can also travel both ways so they can be mixed for optional use as full-span ailerons, flaperons, and spoilerons. Flaps up, the Valiant is a sport flying and aerobatic dream machine with crisp roll performance and excellent rudder authority for impressive knife edge passes – especially for a high-wing model. Like its larger and smaller brothers, the Valiant 20cc delivers an overall rock-solid feel in the air that's perfect for a wide range of intermediate to advanced pilots!

The ARF version arrives mostly factory assembled with pre-installed hinges and bolt-on tail surfaces that save you considerable time and effort. It also allows you to install a 20cc gas engine, similar-class glow engines, or an equivalent electric power system and the electronics you prefer. The PNP version saves you even more time because it doesn't require any glue for assembly and is equipped with six factory-installed digital and metal-geared Spektrum A6380 servos, a 4S-6S compatible Avian 5065-450Kv outrunner motor, and a 100-amp Smart ESC that can provide a variety of power system related telemetry data with Smart and non-Smart batteries via compatible receivers and Spektrum AirWare-equipped transmitters.

Both versions include simple yet durable aluminum landing gear with optional-use wheel pants. You also have the option to install floats with a silver-painted finish using the custom float strut set (sold separately). The balsa and lite-ply airframe arrives factory-finished with genuine UltraCote film covering and a variety of features, including a large and convenient top-mounted windshield hatch, a painted-to-match fiberglass cowl, plus LED navigation lights. It all adds up so the Valiant 20cc is sure to become a hero around your club and field as the model to have – no matter what flying occasion may arise!

Features

Skill Level 3 - Intermediate Pilots (Experience Required) - Skill Level 3 aircraft, like this one, are suitable for RC pilots who already have some experience and the skills to assemble, set up and fly similar class models. You should have the experience and skills necessary to successfully fly models like the E-flite Turbo Timber Evolution 1.5m, Turbo Timber SWS 2.0m, Carbon-Z Cessna 150T 2.1m, Carbon-Z Cub SS 2.1m, or other similar class models before attempting to fly the Valiant 20cc.

Smart Technology - The Valiant 20cc PNP version is equipped with an exclusive Spektrum Avian Smart ESC that can provide a variety of real-time power system-related telemetry data, including motor RPM, current draw, battery voltage, and more – with Smart and non-Smart batteries – via compatible receivers and Spektrum AirWare equipped transmitters (including the DX6e and 8e, DX6 G2/3 and 8 G2, the DX9, NX6 to 20, iX12 to 20, and others) while you fly.

Plug-N-Play Completion Level - This Plug-N-Play (PNP) version comes out of the box with a factory-installed power system and servos that are ready to connect to the compatible receiver of your choice (sold separately). Plus, no glue is required for assembly so you can be in the air as easily and in as little time as possible – typically in just 1-3 hours!

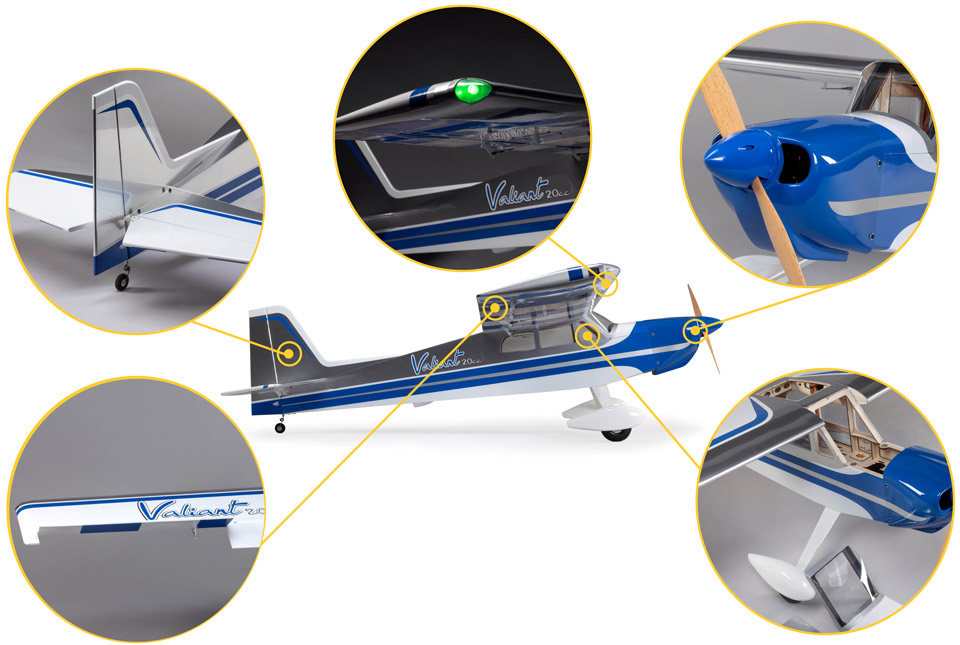

Convenience Features - The large, top-mounted and magnetically secured windshield hatch cover makes it easy to install and remove batteries for electric power options, and to access the fuel tank and other components for gas and glow setups. There's also a second hatch for additional electronics access located on top of the fuselage between the two-piece wings that secure quickly and easily with thumbscrews plus there are slots in the fuselage to hold the wing tube for more convenient storage and transport.

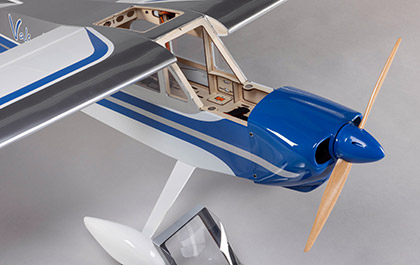

Wood Airframe - The balsa and lite-ply airframe is lightweight yet stiff and strong. Best of all it arrives mostly factory-assembled and finished in genuine UltraCote film covering. The PNP version also includes durable, factory-installed metal-geared and digital Spektrum A6380 servos. And in the unfortunate event you damage any airframe parts or components and can't repair them, a full line of replacement/spare parts is readily available.

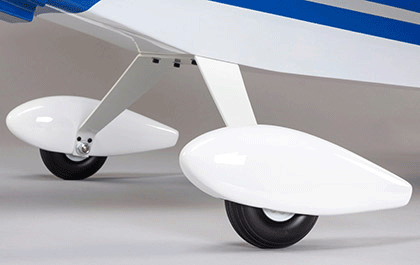

Gear Options - Both versions include simple yet durable aluminum landing gear with optional-use wheel pants. Or you can install the optional silver-painted foam float set (EFLA5600S; sold separately) and float strut set (HAN15066; sold separately) sets to fly at large ponds and lakes!

Flexible Power - The factory-installed Spektrum Avian 5065-450Kv brushless outrunner motor is compatible with 4S to 6S 4000–7000mAh batteries to offer a wide range of performance – from sport flying and basic aerobatics with 4S batteries and the included 17x12E prop, to aggressive aerobatics and even the power to hover when using the included 16x8E prop with 6S batteries!

Specifications

• Airfoil Shape - Semi Symmetrical
• Approximate Assembly Time - 1-3 Hours
• Battery - Included
• CG (Center of Gravity) - 6 9/32" (160 mm) behind leading edge of the wing
• Completion Level - Plug-N-Play
• Connector Type - IC5, EC5
• Flaps - Yes
• LiPo Compatibility - 4S, 6S, 5S
• Material - Wood
• Minimum Required Radio - 5+ Channel
• Motor Size - Avian 5065-450Kv (SPMXAM4770)
• Motor Type - Brushless
• Power Type - Electric
• Product Length - 62.32" (1583 mm)
• Product Weight - With Recommended Battery: 10.8 - 11.2lbs (4.9 - 5.1kg)
• Radio - Sold Separately
• Receiver - Included
• Servos - Included
• Skill Level - Level 3
• Speed Control - Included
• Spinner Size - 2.75" (70 mm)
• Trim Scheme Colors - White (UltraCote HANU870), Deep Blue, (UltraCote HANU873),Silver (UltraCote HANU881)
• Wingspan - 86.46" (2196 mm)

In The Box

• Hangar 9 Valiant 20cc PNP with: - 1
• Spektrum AR8360T+ Receiver - 1
• 6S 5000mAh 30C LiPo Battery - 1
• Spektrum A6380 Digital HV, Metal-Geared Aircraft Servos (installed) - 6
• Spektrum Avian 5065-450Kv Brushless Outrunner Motor (installed) - 1
• Spektrum Avian 100-Amp Brushless Smart ESC (installed) - 1
• Product Manual - 1

Needed to Complete

• 8+ Channel Transmitter - 1
• LiPo Battery Charger - 1
