Description

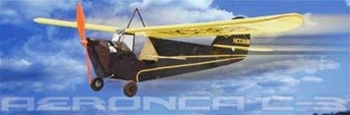

DUM1813 DUMAS Aeronca C-3 Kit
THIS ITEM DOES NOT QUALIFY FOR FREE SHIPPING
| Features: |
Construction: Hand selected laser cut balsa
Vacuum molded nose cowl
Rudder Control: Pull-pull cables
Elevator Control: Wire pushrod
Servo Placement: Mounted in rails on fuselage
Landing Gear: 1/16" diameter wire front, .041 diameter wire rear, requires bending
| Includes: |
All balsa, lightweight colored (black and yellow) tissue covering two 1-3/4" (45mm) lightweight foam main wheels, CA hinges and all hardware to complete this kit, instruction manual, two full-size plan sheets, and acetate sheet for windows
| Requires: |
GWS IPS (indoor power system) motor with "A" ratio gear drive
3 channel radio system (minimum)
2 micro servos
5A ESC w/BEC
2 cell 700mAh LiPo battery
GWS 8x6 prop,
Building and field equipment
| Technical Specifications: |
Length: 22" (559mm)
Wingspan: 40" (1016mm)
Wing Area: 329 sq.in. (21.25 sq dm)
Airfoil: Flat bottom, high wing placement
Center of Gravity (CG): 2.5" (63mm) back from the leading edge of the wing at the fuselage side
Control Throws-
Elevator, Up and Down: 3/4" (19mm)
Rudder, Left and Right: 1" (25mm)
Additional Information
Oversized Item: |
Yes |
Kit Type: |
Kit |
Power: |
Electric |
Model Type: |
Sport / Pattern |
