TRA82276-4ORG TRAXXAS TRX-4 Scale and Trail Crawler w/1979 Chevrolet Blazer Body: 4WD Electric Truck w/2.4GHz Radio System - Orange
THIS ITEM DOES NOT QUALIFY FOR FREE SHIPPING
Note: Graves RC Coupons are not applicable with this product
Scale and Trail® Crawler

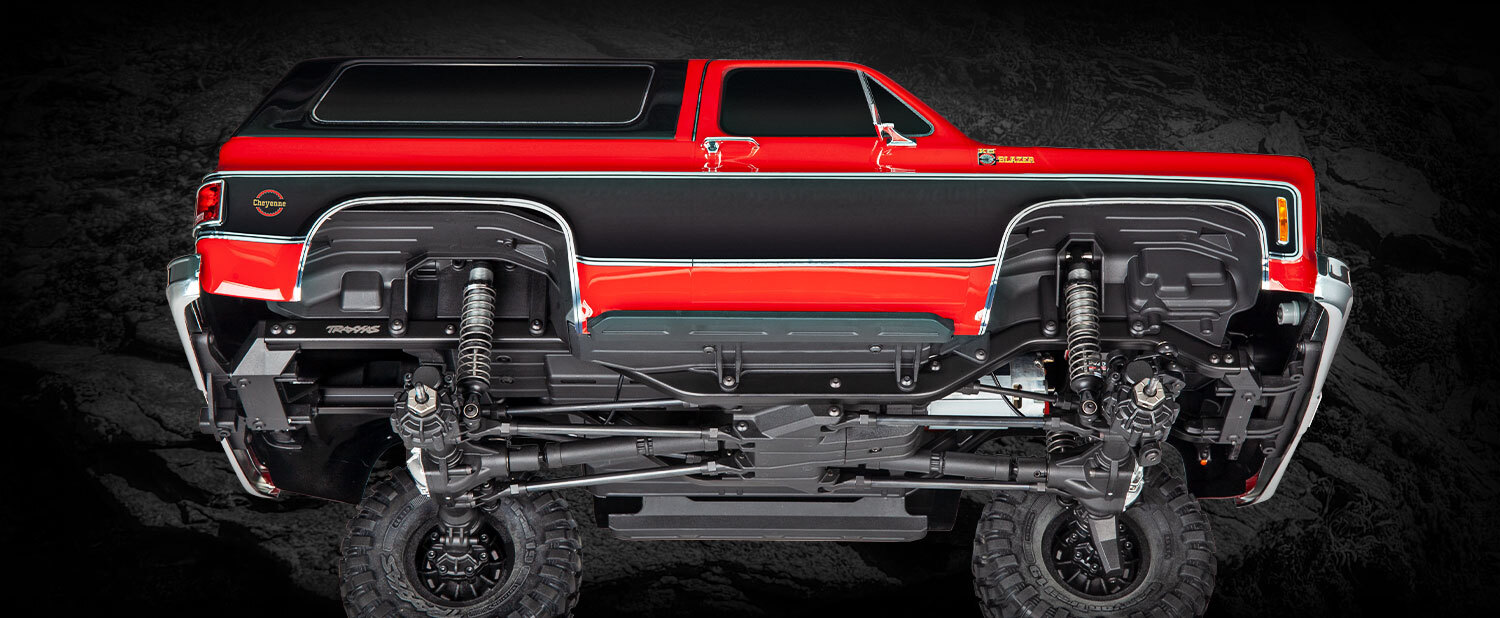

Introduced in 1969, the Chevrolet® Blazer was General Motors’ two-door entry into the booming sport utility market. Its shorter wheelbase and capable suspension instantly made it a favorite in the 4X4 world, earning the love of enthusiasts and collectors. Traxxas honors the rich history of the Blazer with this beautifully detailed reproduction of the 1979 K5 Blazer built on the renowned TRX-4® chassis. Outfitted with replica Rally wheels, a highly detailed chrome grille, and a full complement of scale details, the TRX-4 Blazer combines the iconic style of the Blazer with toughness and technology that could only come from Traxxas.
New Clipless Body Mounting
New to TRX-4 79′ Chevrolet K5 Blazer, clipless body mounting combines clean flowing lines with secure latching convenience. TRX-4 K5 Blazer’s hidden latches hold tight on the trail no matter how intense the action gets, but release in just seconds to access the chassis.
Innovation
Radically innovative technology combines with precision engineering to create a completely new breed of scale crawler…Only from Traxxas.Details
TRX-4’s extreme off-road capability lies in the technology beneath its rugged exterior.
Chassis Features

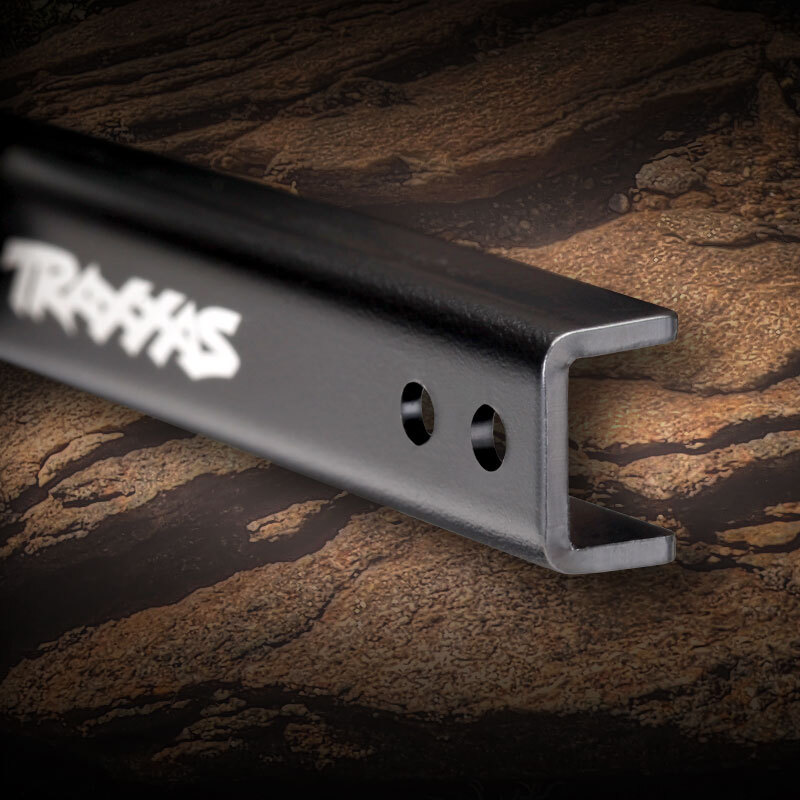

Heavy-Duty Steel Frame Rails
Adjustable Wheelbase

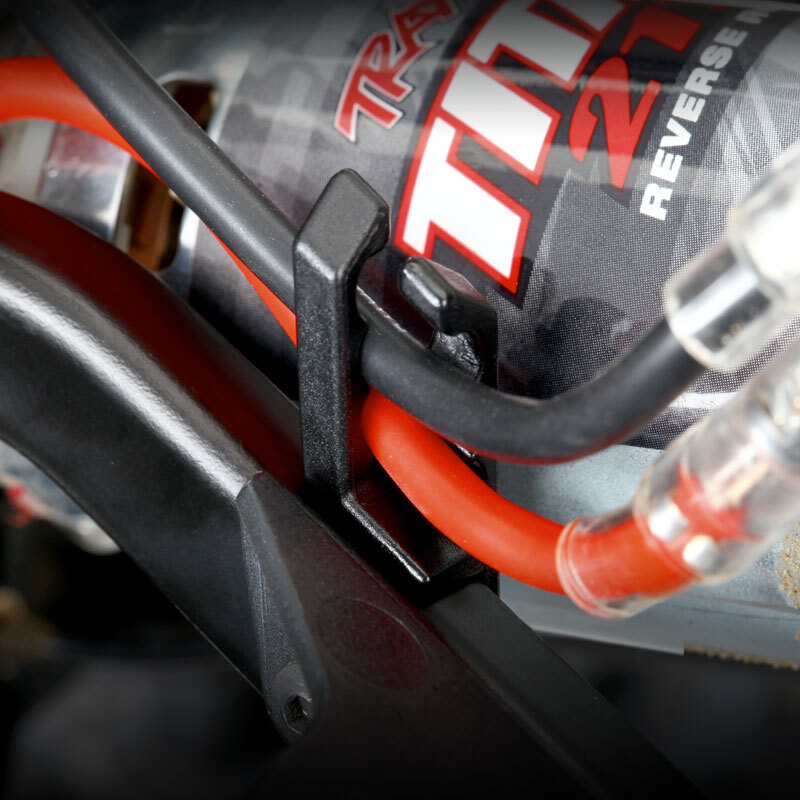

Molded Wire Retainers
Dual Battery Tray

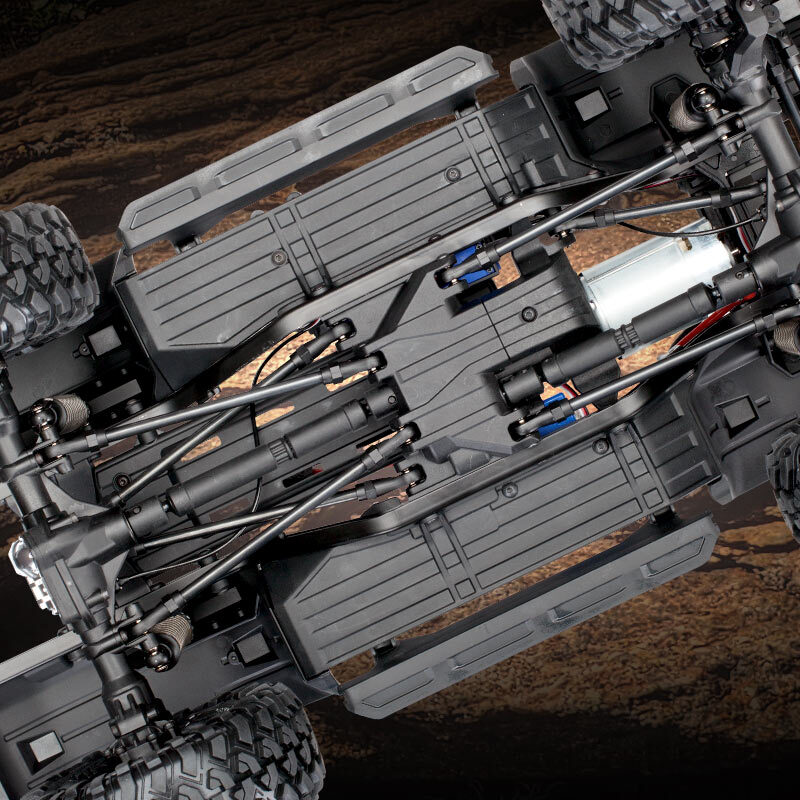

Floor Pans

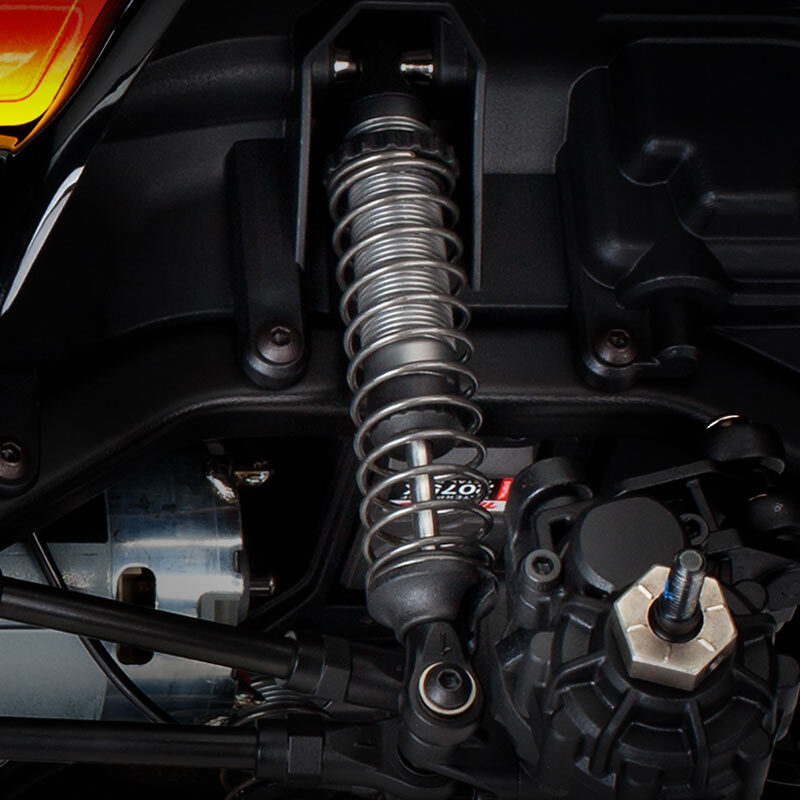

Aluminum Scale Shocks

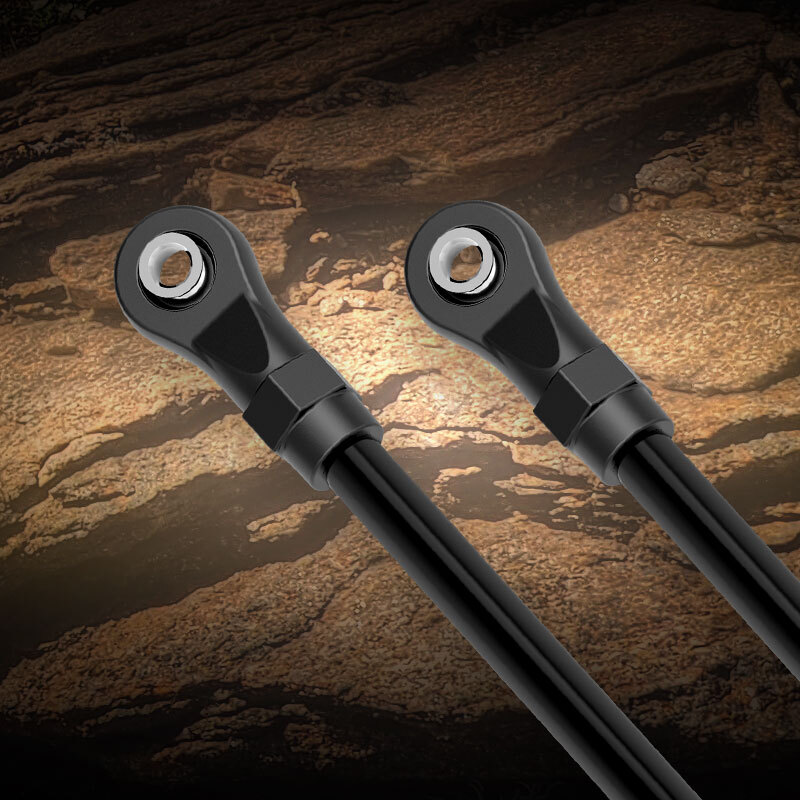

Heavy-Duty Steel Links

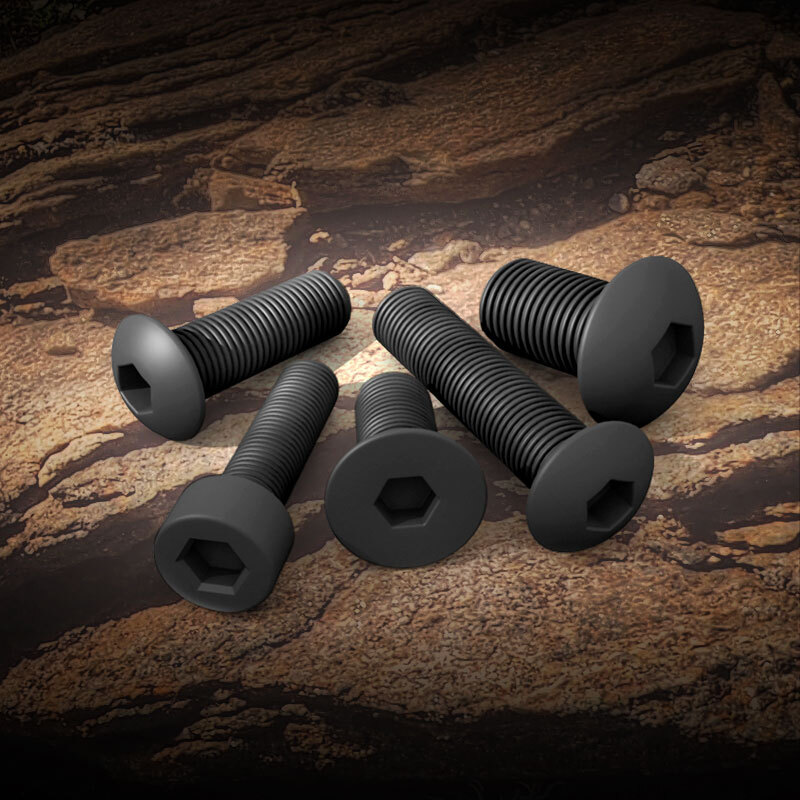

Precision Hex Hardware
Driveline Features

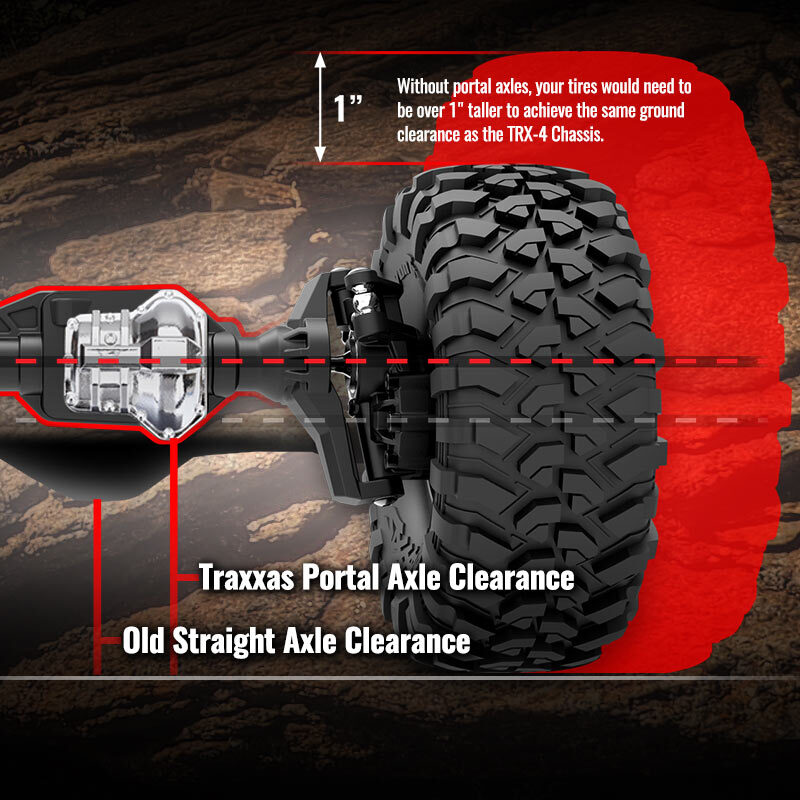

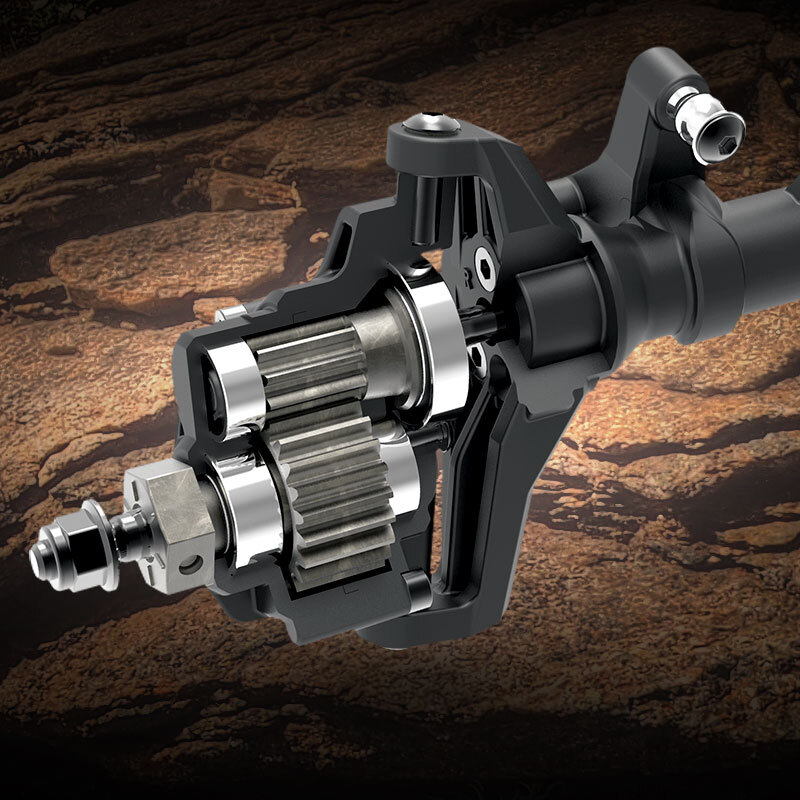

Portal Axles
Torque Twist Eliminated
T-Lock™ Remote Locking Differentials

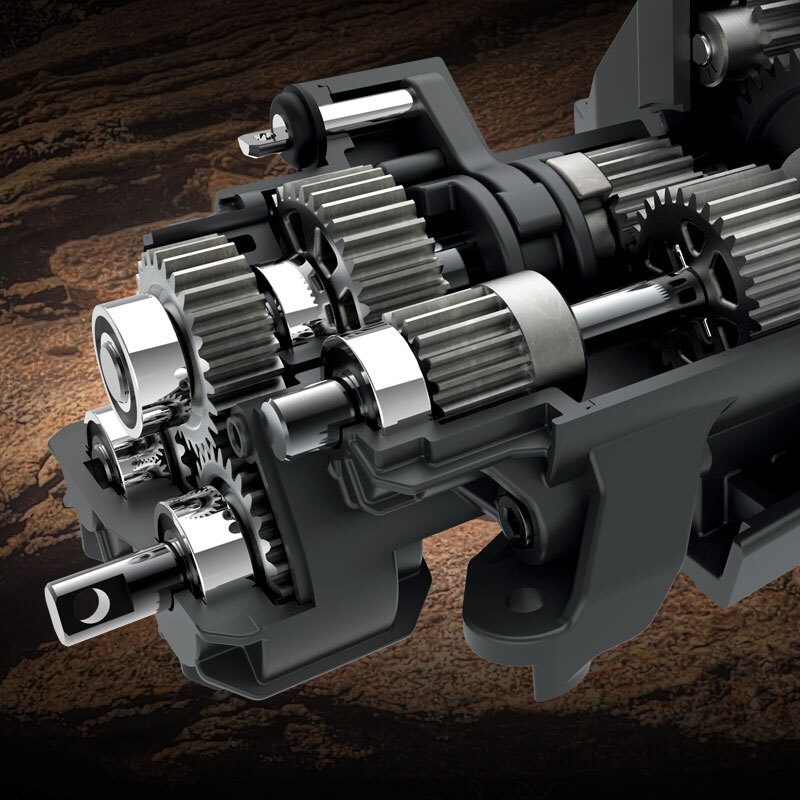

High/Low Transmission

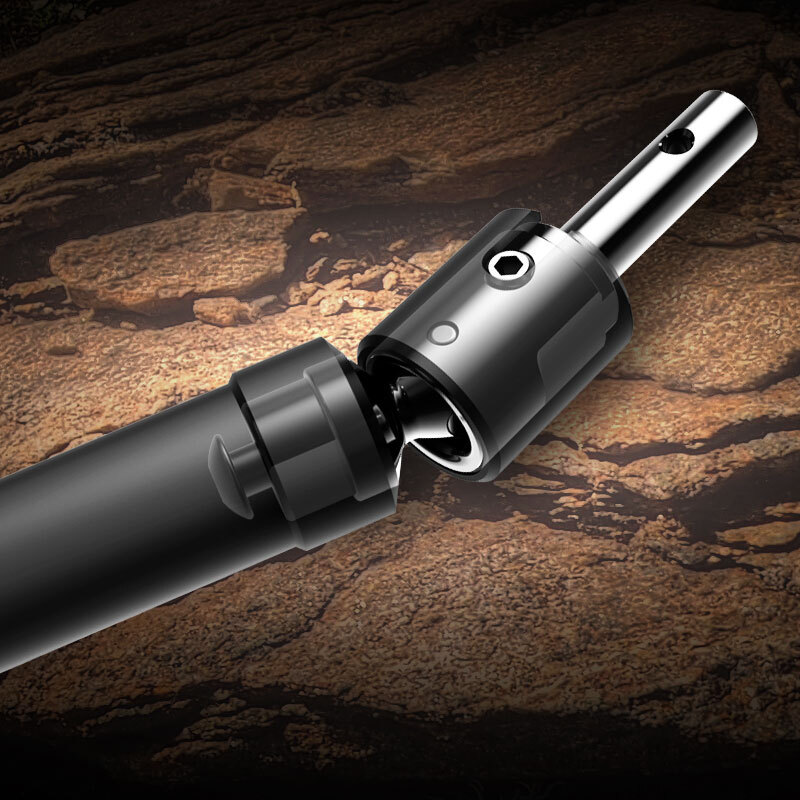

Hardened Steel U-Joints

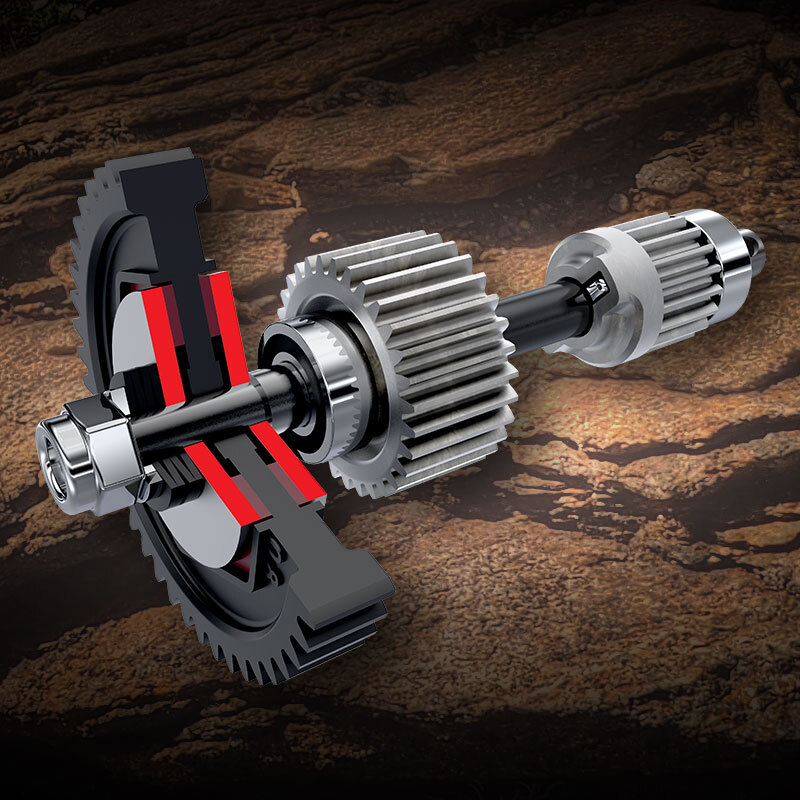

Twin Friction Plate Slipper Clutch

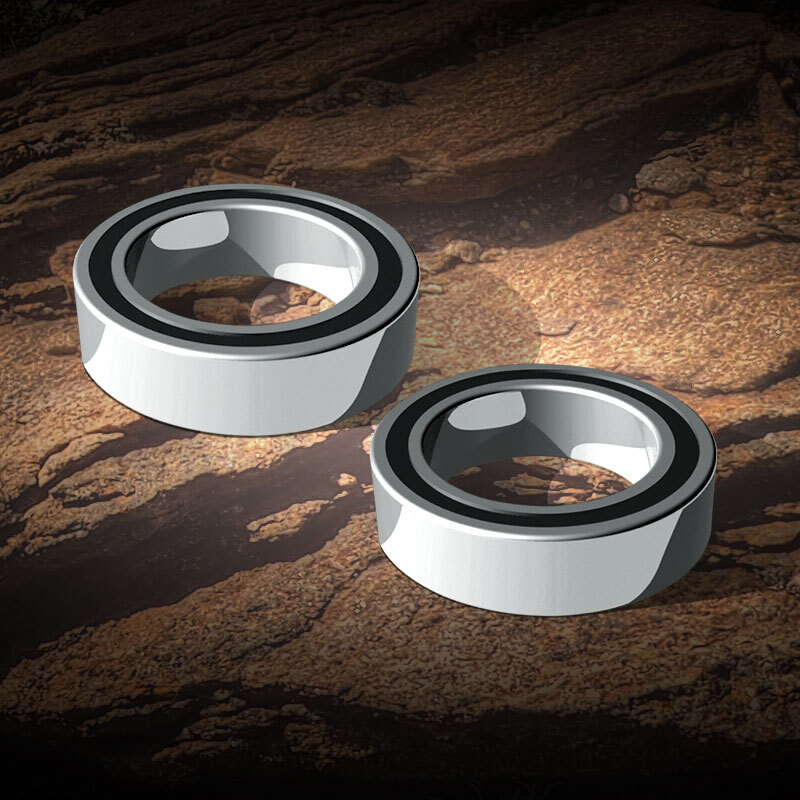

Sealed Ball Bearings
Geometry

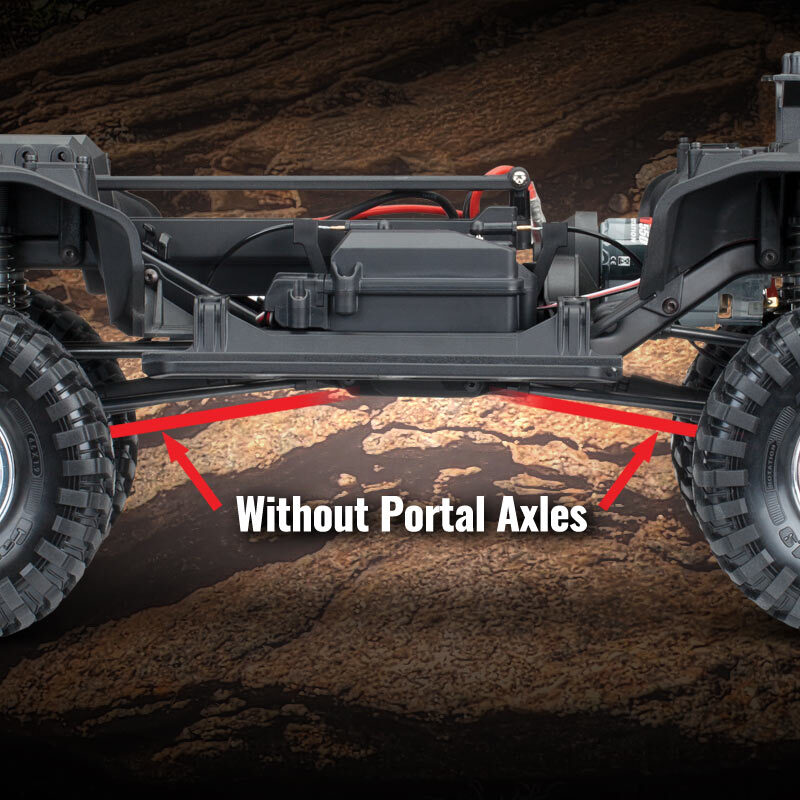

Raised Center Driveshafts and Suspension Links

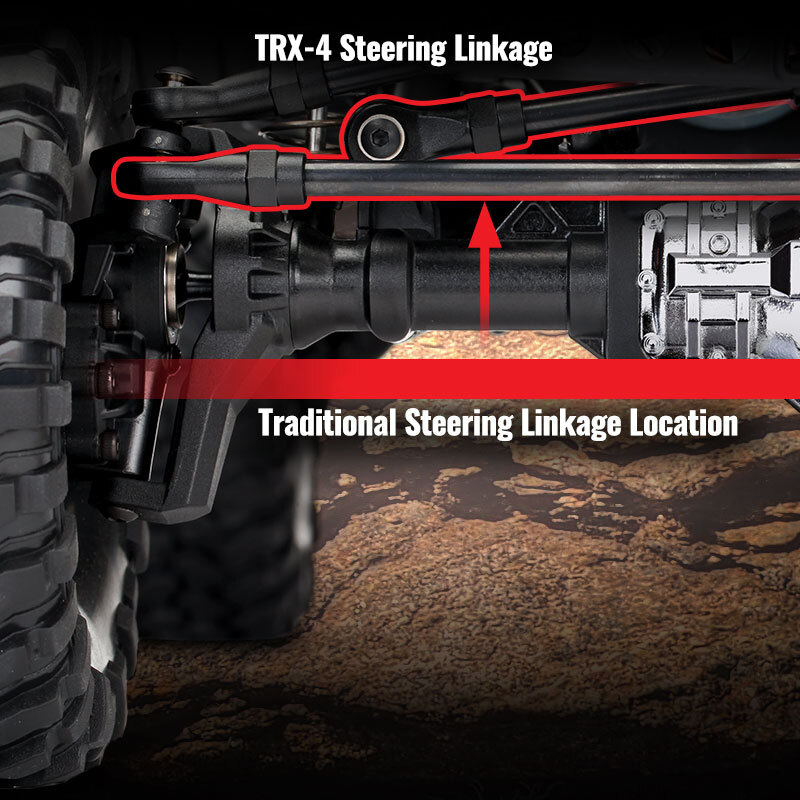

High Steering and Drag Links

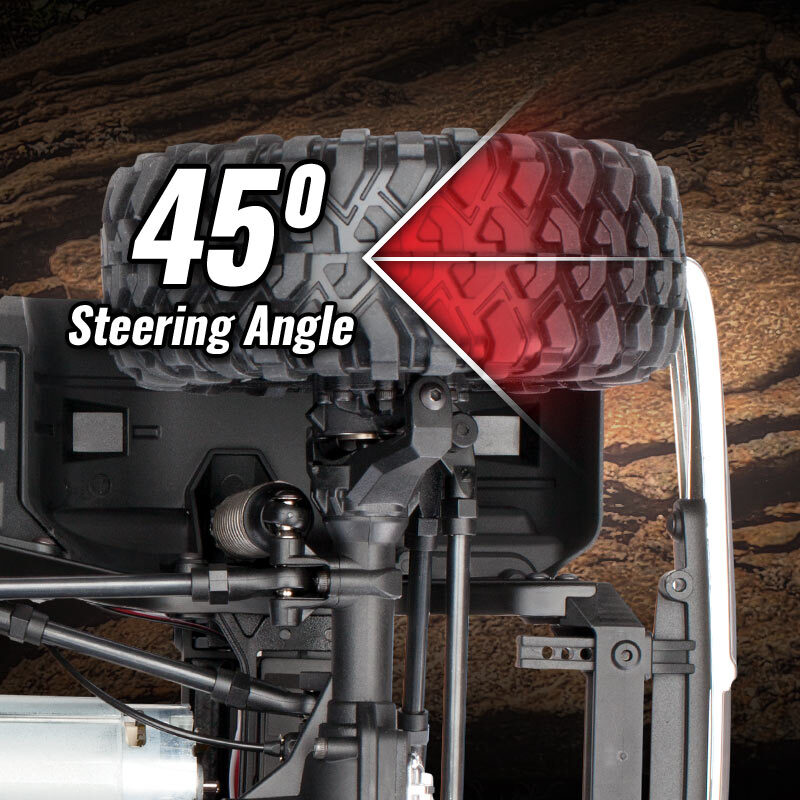

45-Degree Steering Angle

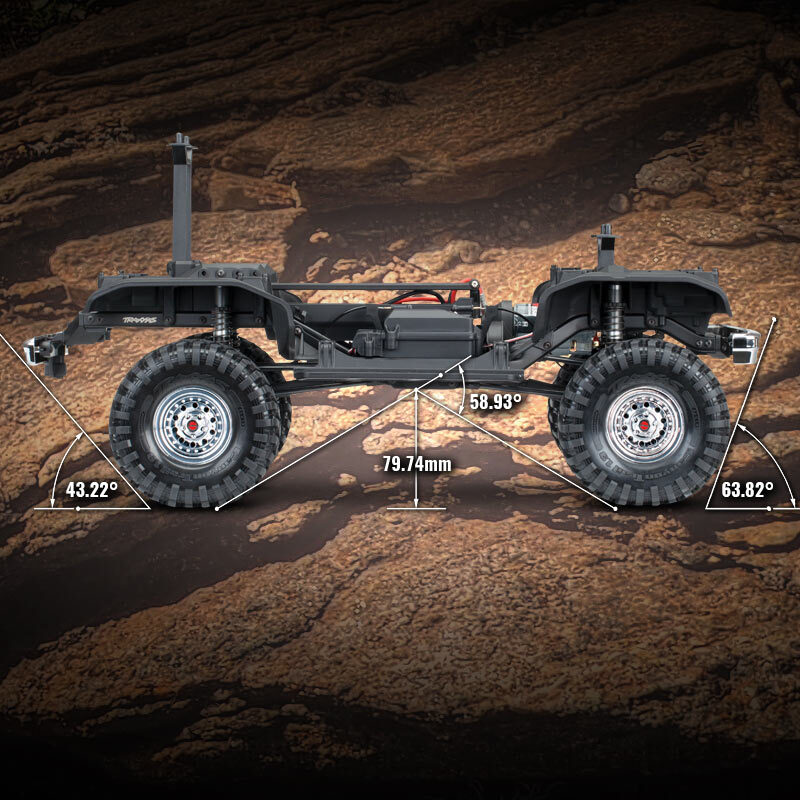

Extreme Approach Angles

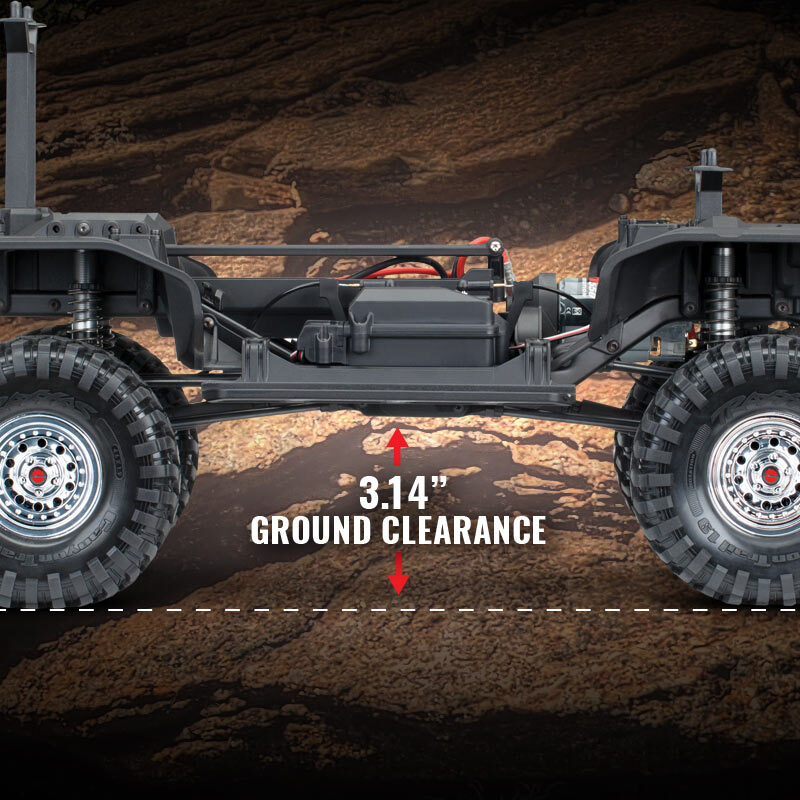

High Ground Clearance
Front Motor Design
Electronics
Titan 21T 550 Motor

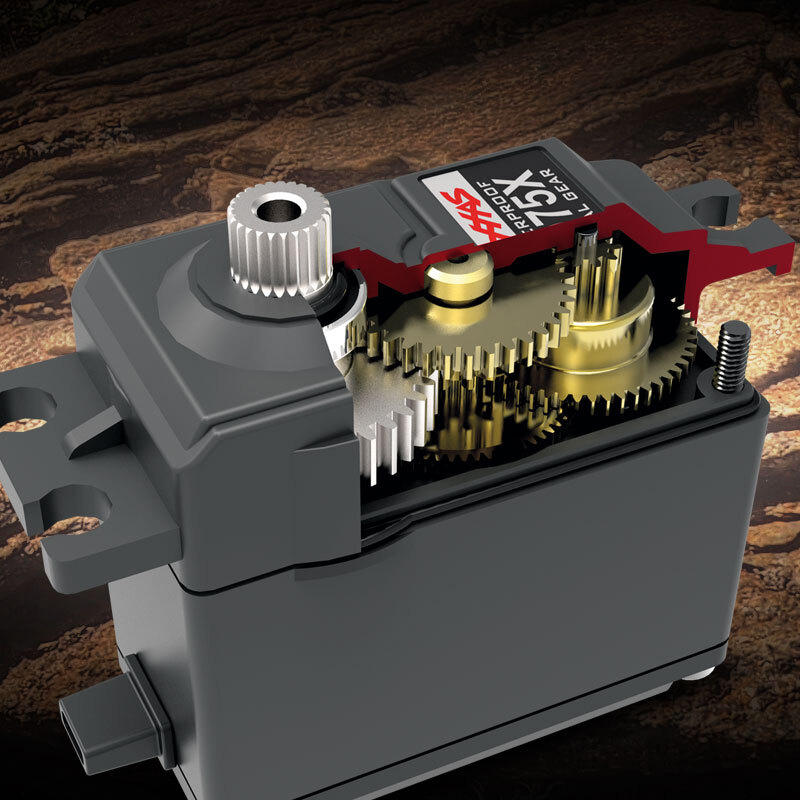

Waterproof Metal Gear Servo

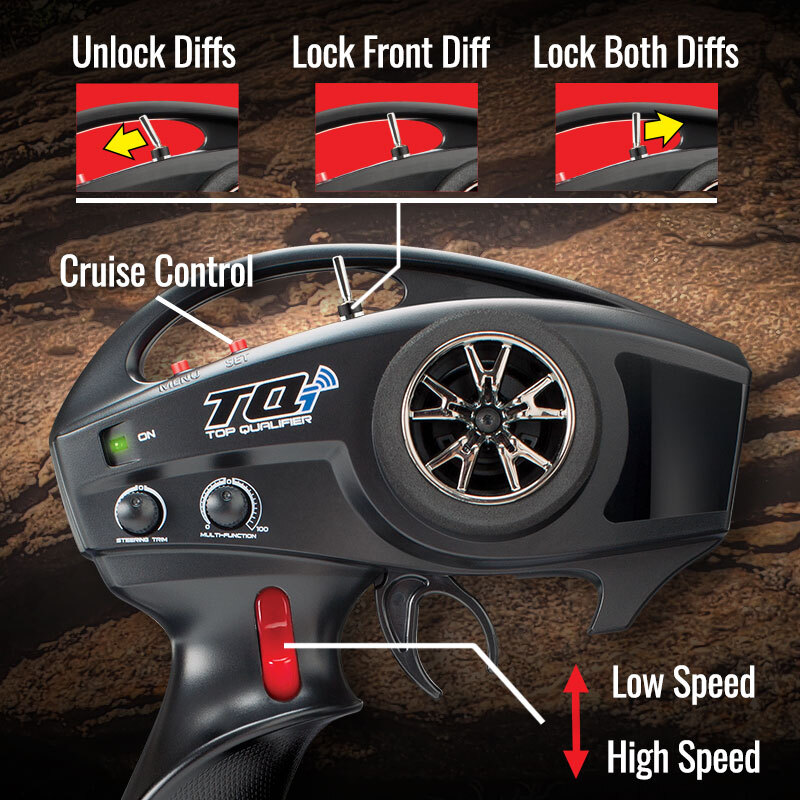

TQi™ 4-Channel Radio System

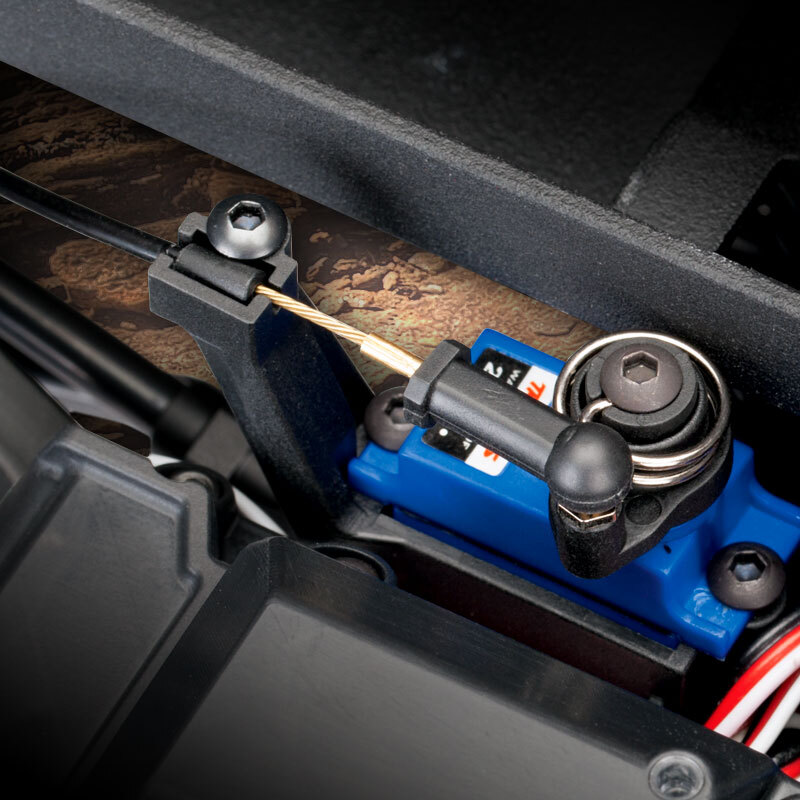

Waterproof Micro Servos with Sleeved Cables

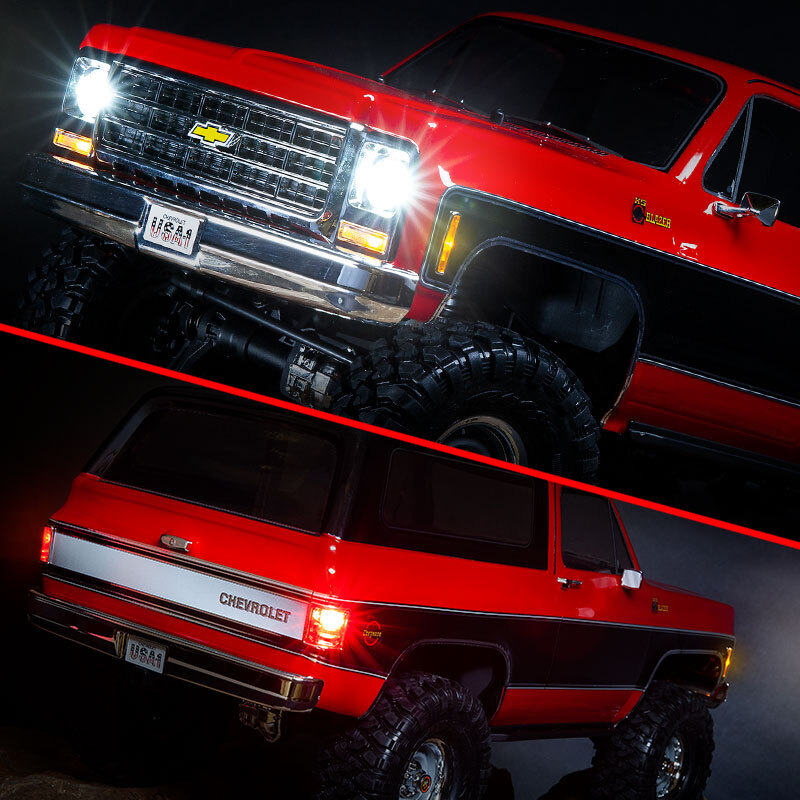

Accessory LED Light Kit (sold separately)
Scale Details

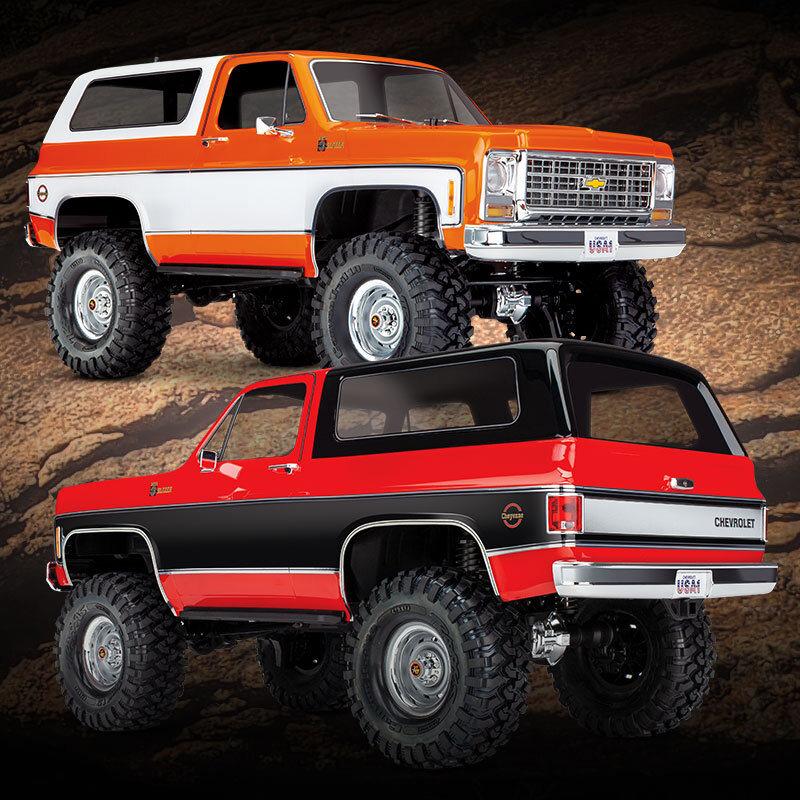

Officially Licensed Replica Body

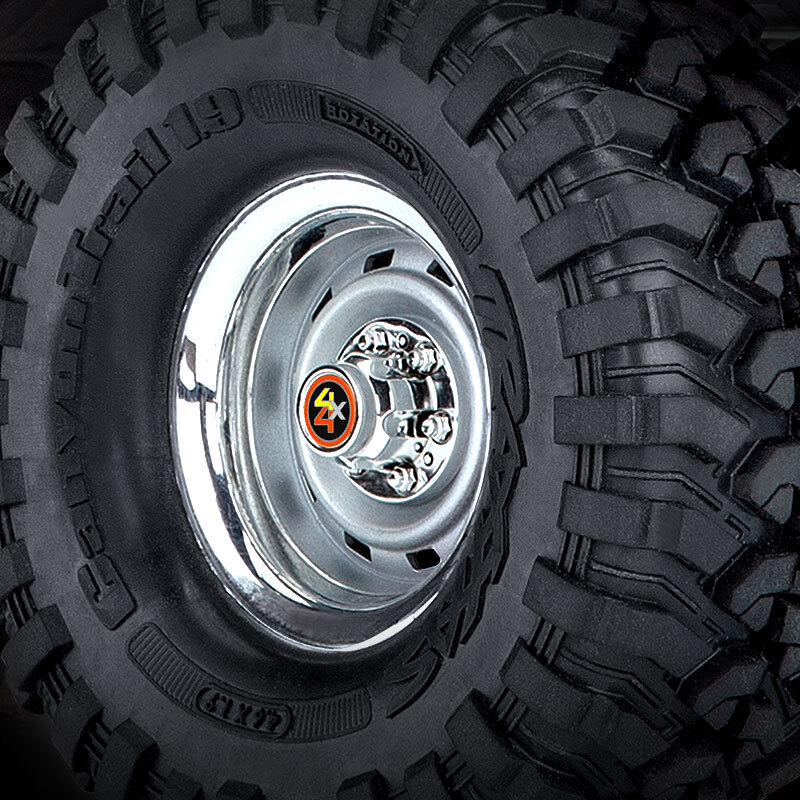

1.9″ Scale Wheels and Tires
Molded Inner Fenders

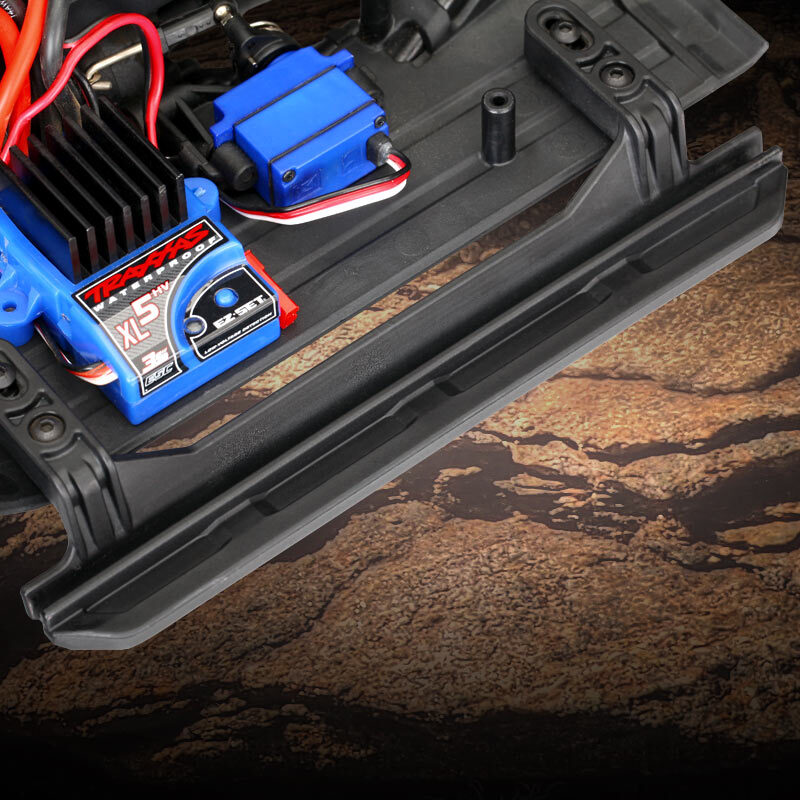

Rock Sliders
Detailed Front Grille and Chrome-Finish Bumpers

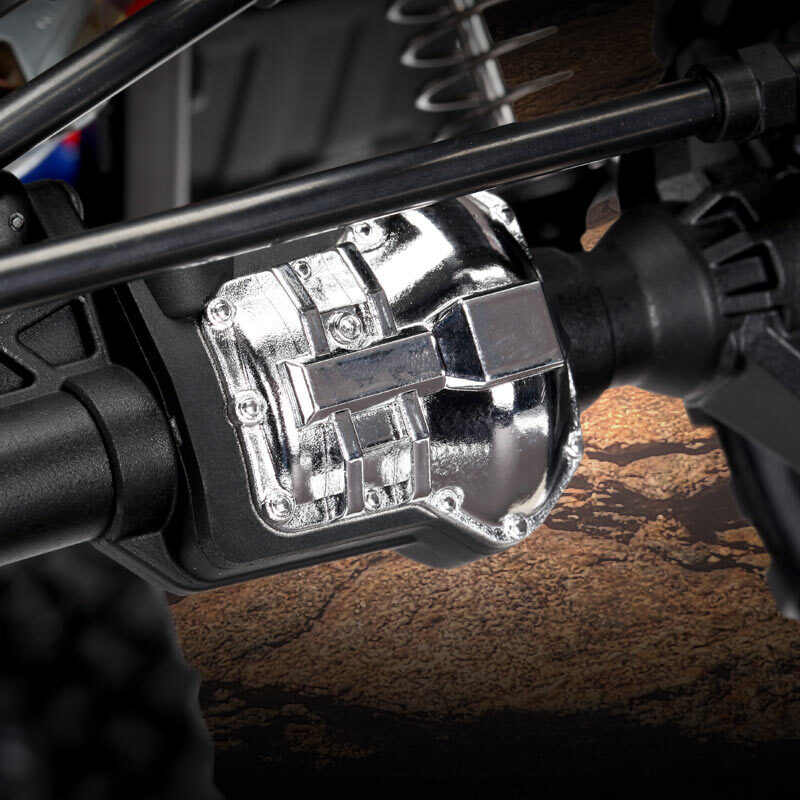

Chrome-Finish Differential Covers

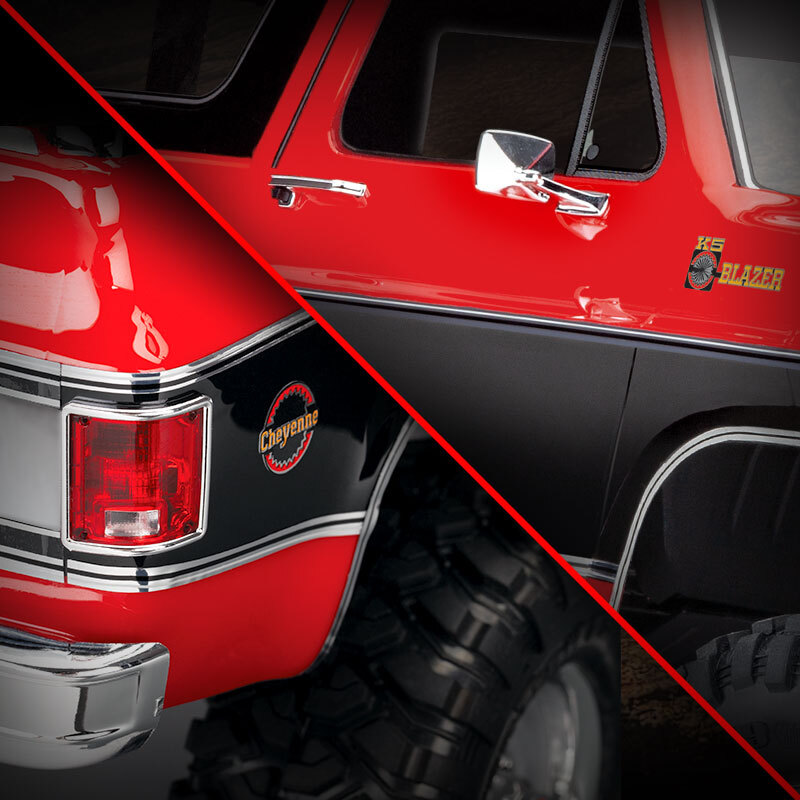

Molded Body Details
Vehicle Specifications
| Length: | 20.62 inches (524 mm) |
|---|---|
| Front Track: | 9.78 inches (249 mm) |
| Rear Track: | 9.78 inches (249 mm) |
| Ground Clearance: | 3.14 inches (80 mm) |
| Weight: | 6.26 pounds (2.84 kg) |
| Height (overall): | 10.05 inches (255 mm) |
| Wheelbase: | 12.28 inches (312 mm) |
| Approach Angle: | 59° |
| Departure Angle: | 47° |
| Breakover Angle: | 59° |
| Front Shock Length: | 3.54 inches (90 mm) |
| Rear Shock Length: | 3.54 inches (90 mm) |
| Front Wheels: | 1.9″ x 1.02″ (49 x 26 mm) |
| Rear Wheels: | 1.9″ x 1.02″ (49 x 26 mm) |
| Front Tires: | 4.64″ x 1.89″ (118 x 48 mm) |
| Rear Tires: | 4.64″ x 1.89″ (118 x 48 mm) |
Motor Specifications
| Type: | High-torque brushed motor |
|---|---|
| Size: | 550 |
| Weight: | 13.76 ounces (390 g) |
| Length: | 3.071″ (78 mm) overall length, 2.25″ (57 mm) can length, 1.532″ (39 mm diameter) |
| Turns: | 21T reverse rotation |
| Voltage: | 16.8 volts |
ESC Specifications
| Input Voltage: | 6–7 Cells NiMH, 2–3s LiPo |
|---|---|
| Case Size: | 1.23″ W x 2.18″ D x 1.04″ H |
| Weight: | 2.6 ounces (74 g) |
| Motor Limit: | 21-turns (550 size) |
| On Resistance Forward: | 0.004 ohms |
| On Resistance Reverse: | 0.004 ohms |
| Peak Current - Forward: | 100 amps |
| Peak Current - Reverse: | 100 amps |
| Braking Current: | 60 amps |
| Continuous Current: | 18 amps |
| BEC Voltage: | 6.0 volts |
| BEC Current: | 1 amp |
| Power Wire: | 14 gauge / 5″ |
| Input Harness Wire: | 26 gauge / 14.5″ |
Features List
- Custom-Painted 1979 Chevrolet® K5 Blazer Body
- Scale details: grille, chrome bumpers, side mirrors, door handles, and wipers
- LED-ready headlights and tail lights
- Tinted windows
- Authentic decal sheet
- Full Nylon composite wheel wells and floor pans
- Trail-tuned XL-5 HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
- Sport Mode — forward / brake / reverse
- Race Mode — forward / brake / no reverse
- Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
- Two stage low voltage protection (LVD)
- Motor
- Powerful Titan® 21T reverse rotation motor with internal cooling fan
- Precision, preset gear mesh adjustments
- Motor retention separate from gear mesh
- Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
- Rigid Steel Frame
- 1.5 mm thick steel frame rails increase torsional rigidity
- Innovative design allows four wheelbase positions (300, 312, 324, 336 mm)
- Adjustable rear shock tower positions for SWB and LWB configurations
- Bumpers adjust fore and aft
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
- Drivetrain
- Full-time shaft driven 4-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Remote locking steel gear differentials with cable-actuation
- Steel gear transfer case
- Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
- Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
- Transmission
- Two speed high/low range with remote shifting
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
- Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
- Suspension
- Front — 3 link with panhard
- Rear — Triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5mm diameter steel link rods with 4mm threaded ends
- Aluminum GTS Shocks
- Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
- Wheels and Tires
- Replica chrome Rally wheels with hub inserts
- Pre-mounted 1.9″ Canyon Trail tires with trail-tuned foam inserts
- Trail tuned S1 rubber compound
- 12 mm steel hex
- Transmitter
- TQi™ 2.4 GHz 4-channel transmitter
- Traxxas Link enabled
- Telemetry ready 6533 5-channel micro receiver with failsafe
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Exclusive Cruise Control feature for extended trail driving
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle endpoints
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry
- Sealed Ball Bearings
- Hex hardware with rust-resistant black oxide coating
What's Included?
MODEL 82276-4: TRX-4 Scale and Trail® crawler with 1979 Chevrolet® K5 Blazer body: 1/10 scale 4X4 trail truck, fully-assembled, waterproof electronics, Ready-To-Drive®, with TQi™ 2.4 GHz 4-channel radio system, XL-5™ HV speed control, high/low transmission, remote-locking differentials, and painted body.
What's In The Box?
- TRX-4, Ready-To-Race® model
- XL-5 HV waterproof electronic speed control
- Titan 21T reverse rotation motor
- TQi 2.4 GHz radio system with cruise control
- High quality maintenance tools
What You'll Need?
- Batteries
TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
- Charger
Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model 2971).
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
Additional Information
Oversized Item: |
Yes |
Model Type: |
Off Road Truck |
Drive: |
4WD |
Power: |
Electric |
Scale: |
1/10th |
Completeness: |
RTR-Ready to Run |
