TRA82224-4RED TRAXXAS TRX-4 Sport 4WD Electric Truck with TQ 2.4GHz Radio System
THIS ITEM DOES NOT QUALIFY FOR FREE SHIPPING
Note: Graves RC Coupons are not applicable with this product
Purpose Built
TRX-4® Sport combines the unbeatable ground clearance and driving dynamics of Traxxas portal axles, sticky Canyon Trail™ tires, and a clipless lightweight pickup truck body for a leaner, performance-focused truck. The Sport’s unique bumpers, wheels, and body were designed for increased climbing versatility. Whether it’s a fun trail run or a hardcore technical crawl, the TRX-4 Sport’s capability and performance-built approach takes your outdoor adventure to a new level.
New Clipless Body Mounting
New to TRX-4 Sport, clipless body mounting combines clean flowing lines with secure latching convenience. TRX-4 Sport’s hidden latches hold tight on the trail no matter how intense the action gets, but release in just seconds to access the chassis.
Video
Innovation
Outfitted with radically innovative technology, TRX-4 Sport minimizes weight to maximize performance.Details
The key to TRX-4 Sport’s performance lies underneath its lightweight body.
Chassis

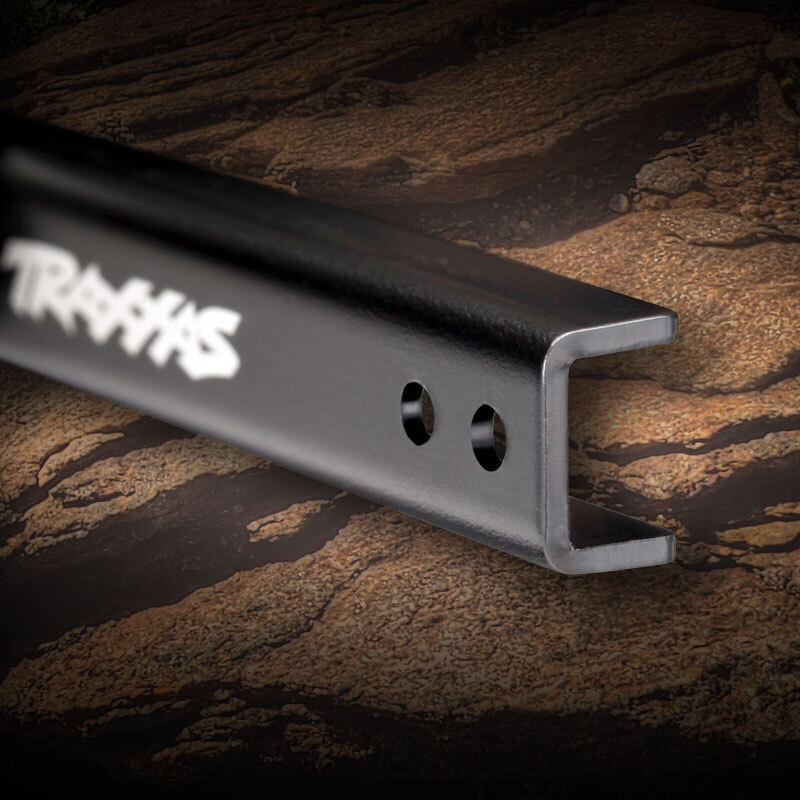

Heavy-Duty Steel Frame Rails

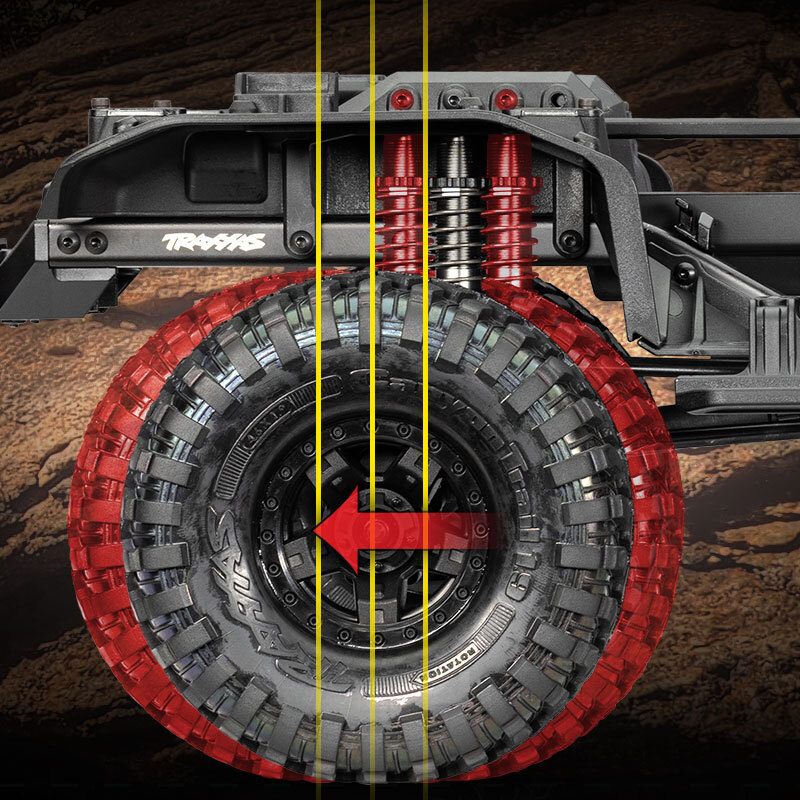

Adjustable Wheelbase

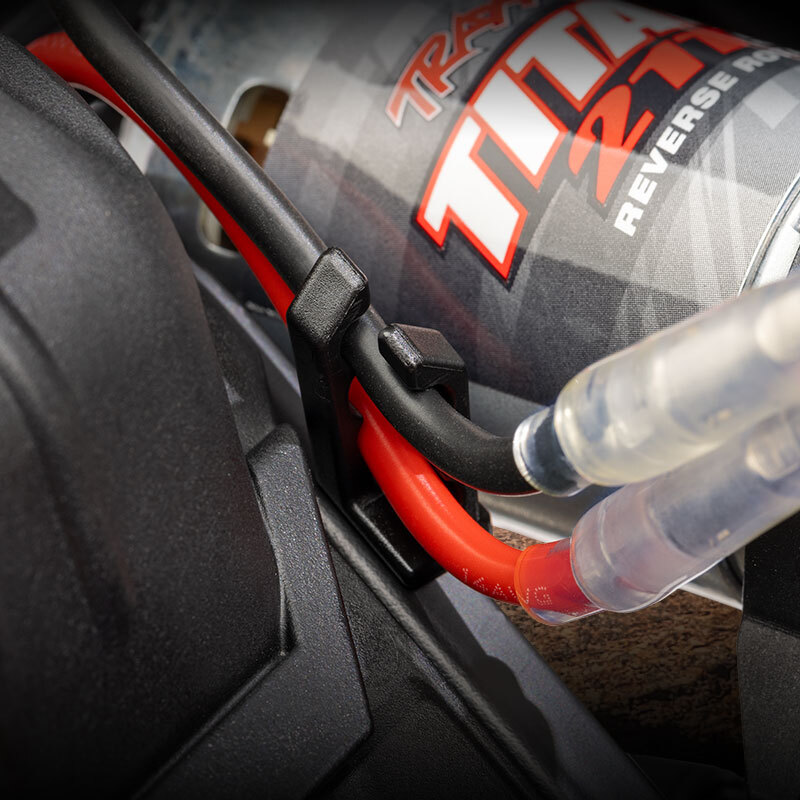

Molded Wire Retainers

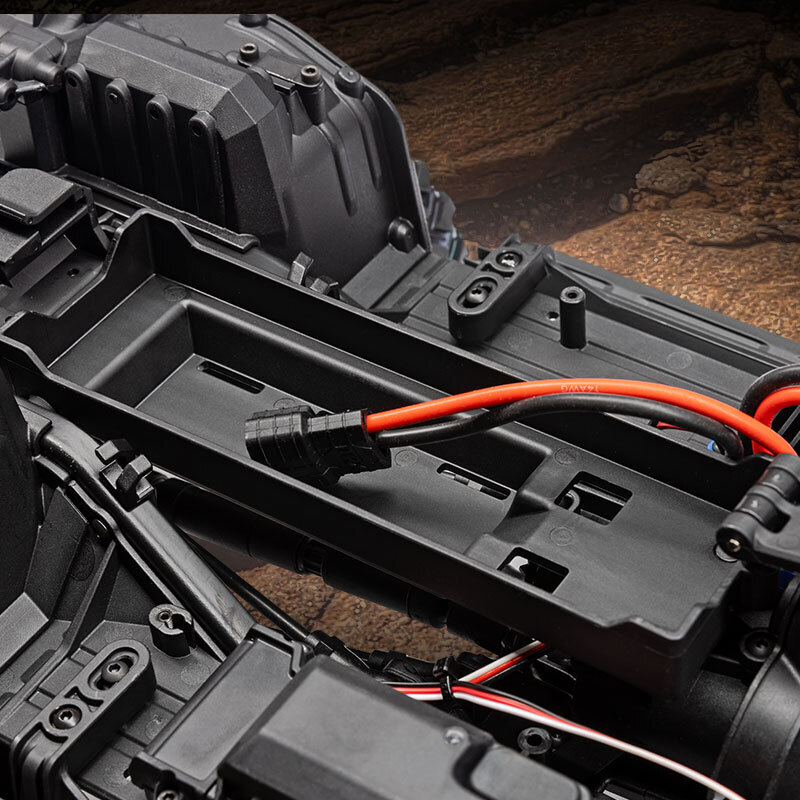

Dual Battery Tray

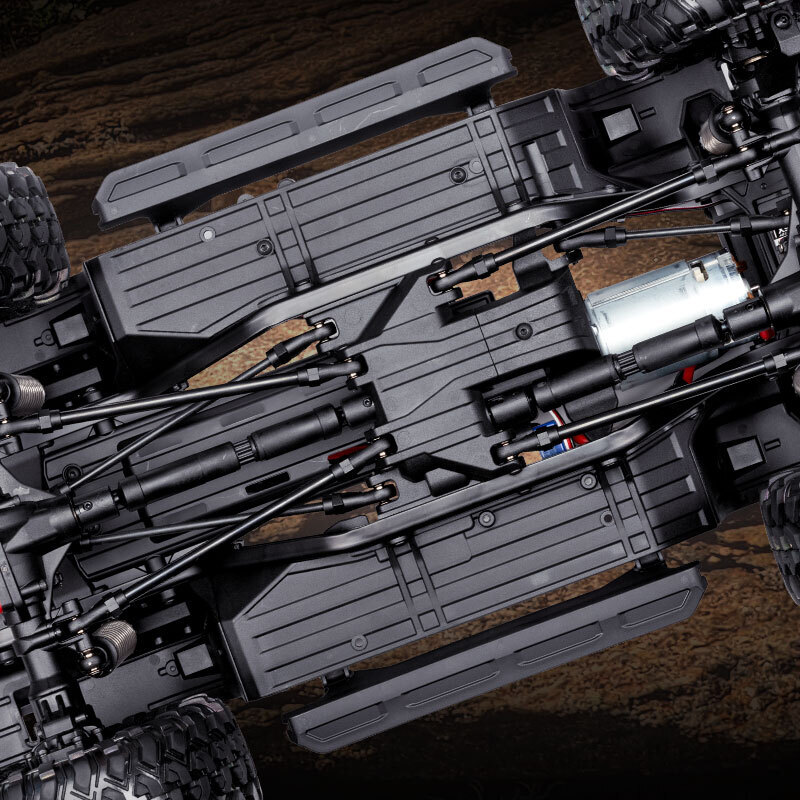

Floor Pans

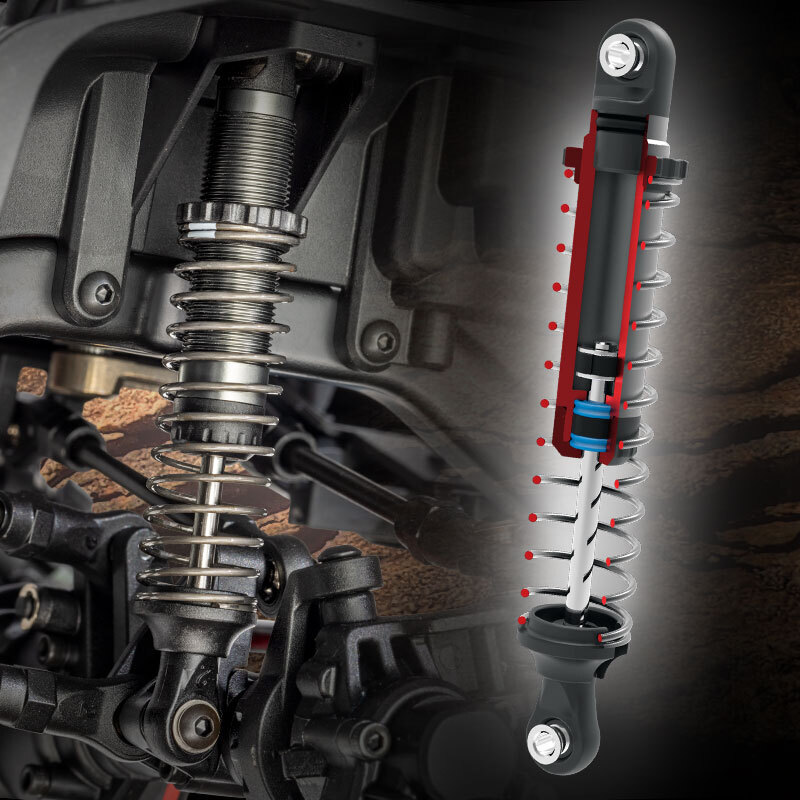

Aluminum Scale Shocks

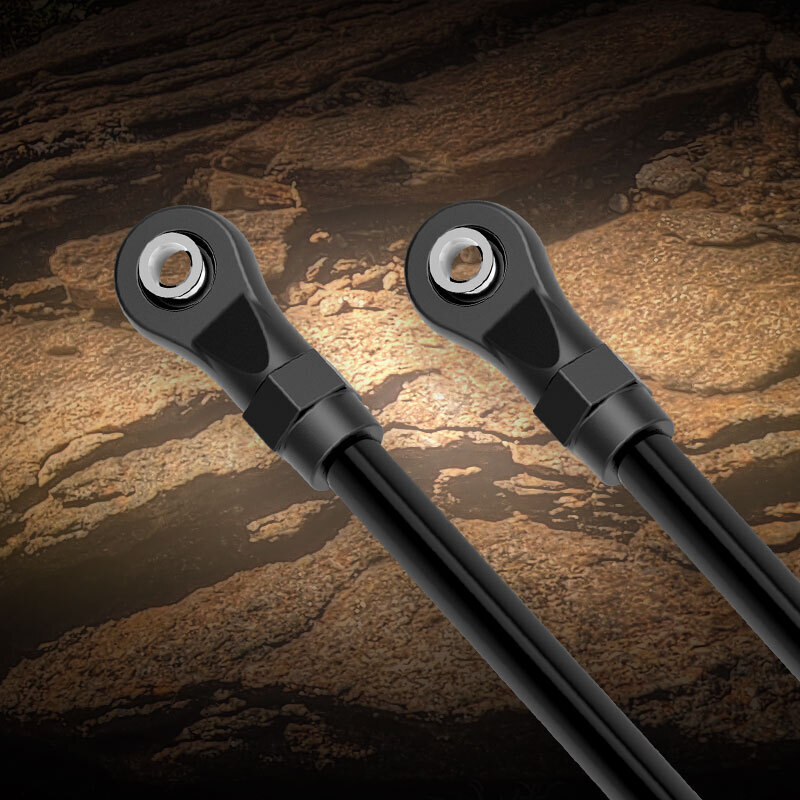

Heavy-Duty Steel Links

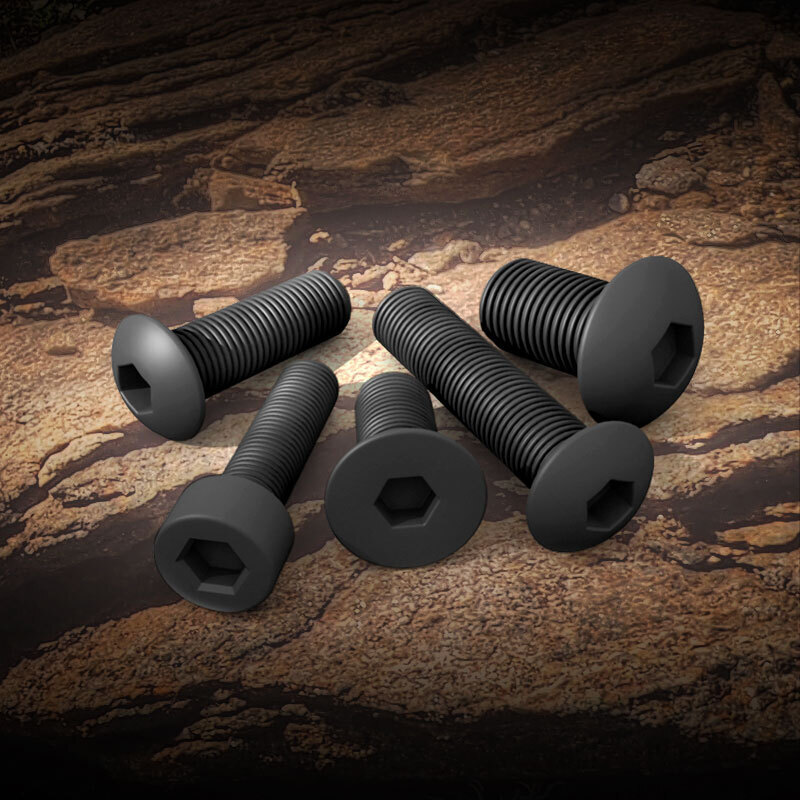

Precision Hex Hardware
Driveline

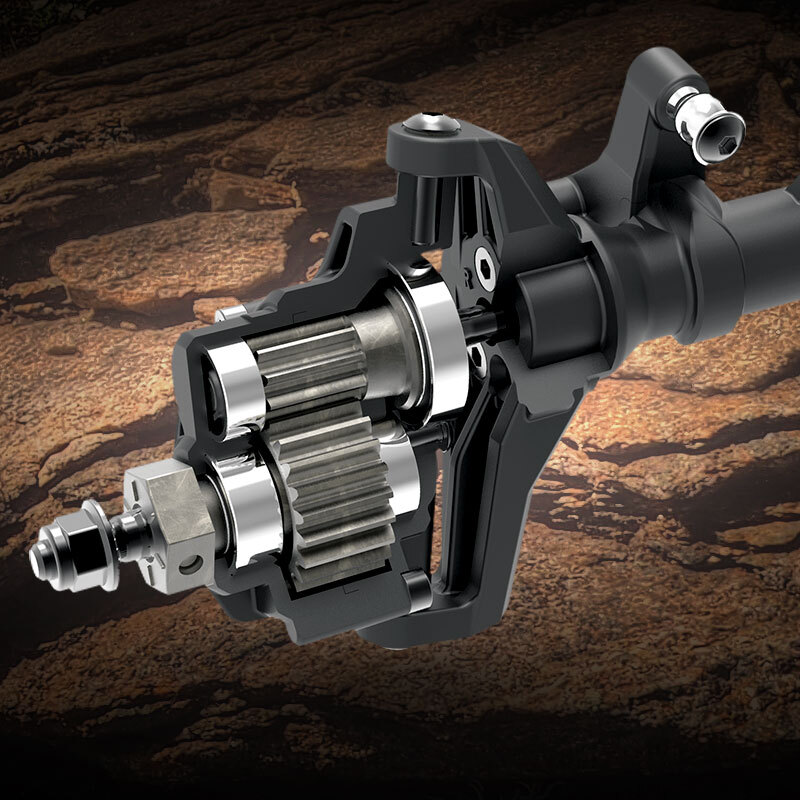

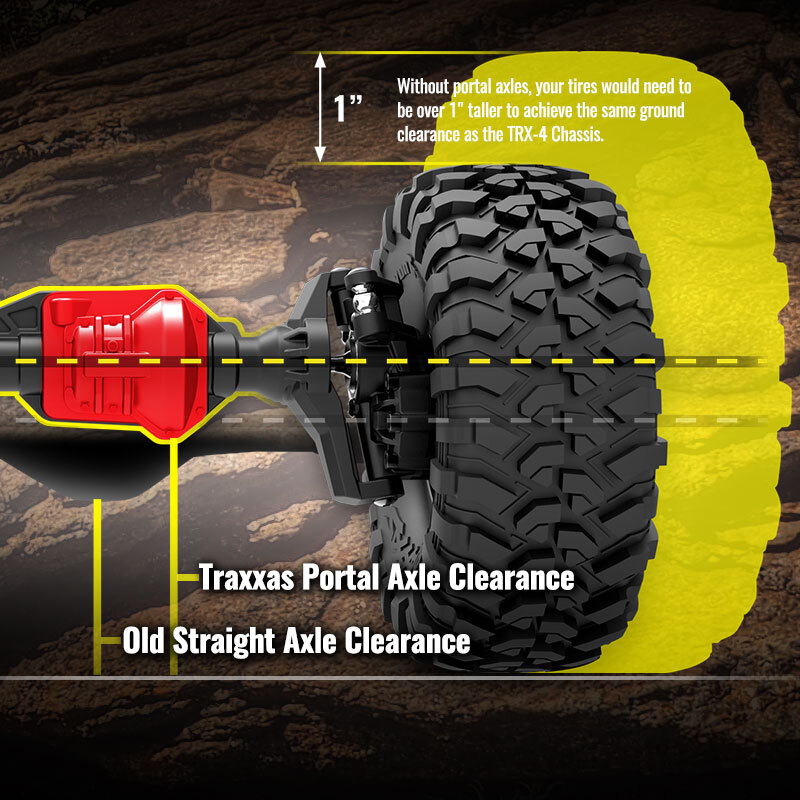

Portal Axles
Torque Twist Eliminated
Locked Differentials

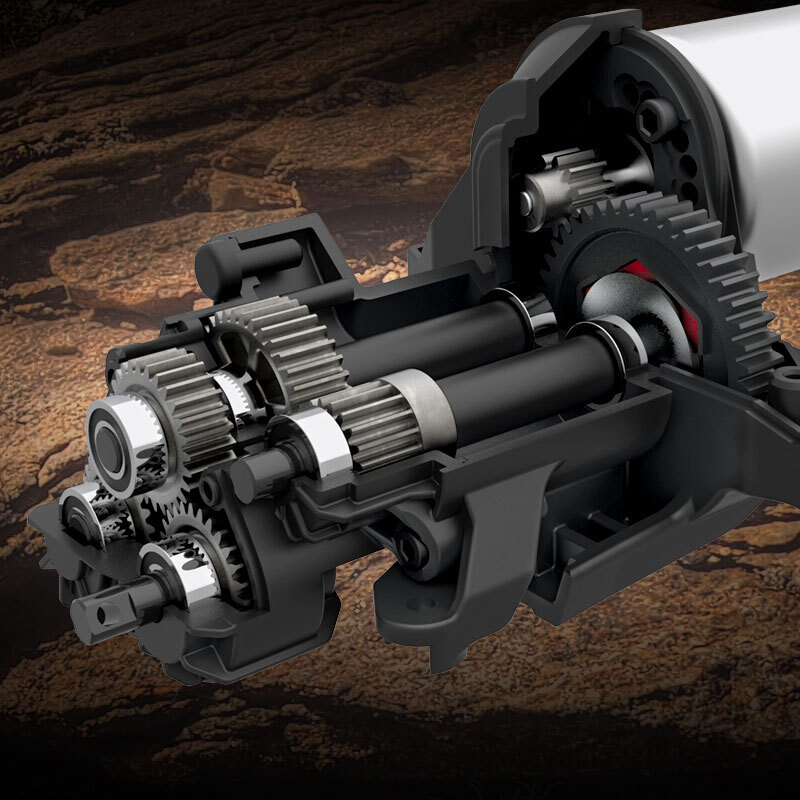

Steel Gear Transmission

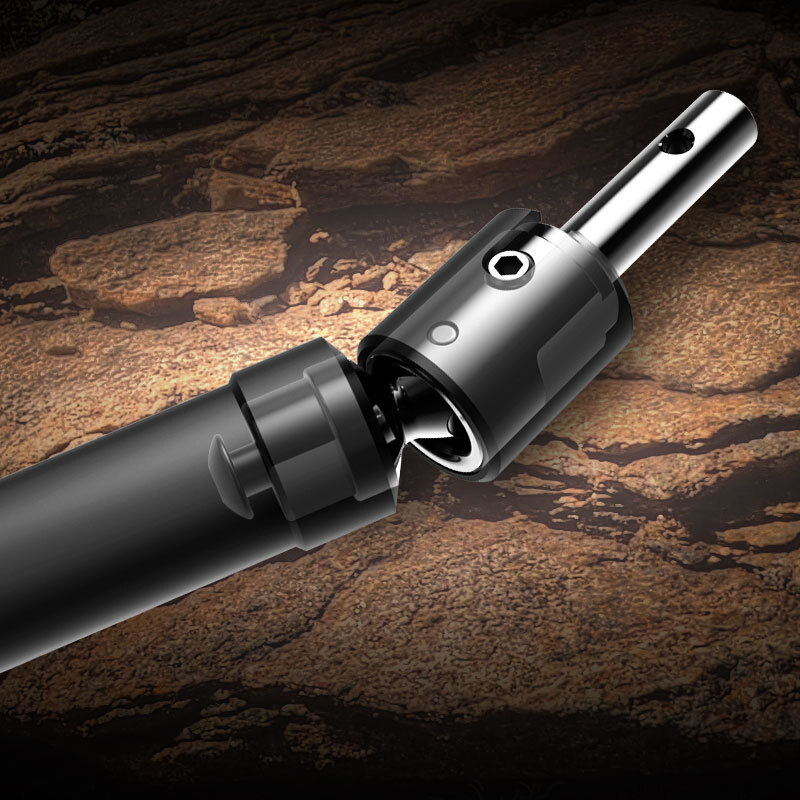

Hardened Steel U-Joints

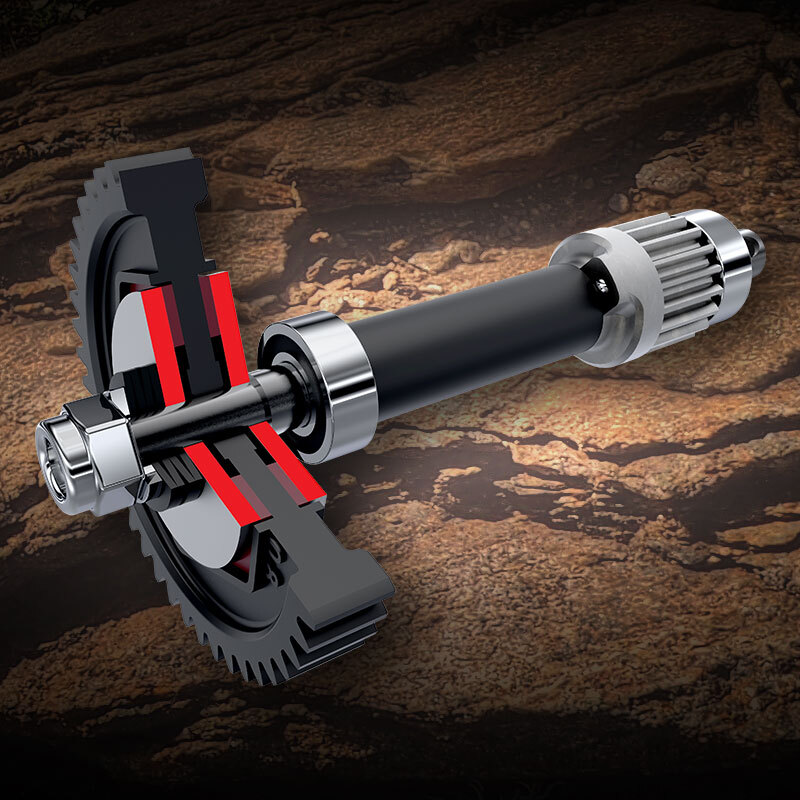

Twin Friction Plate Slipper Clutch

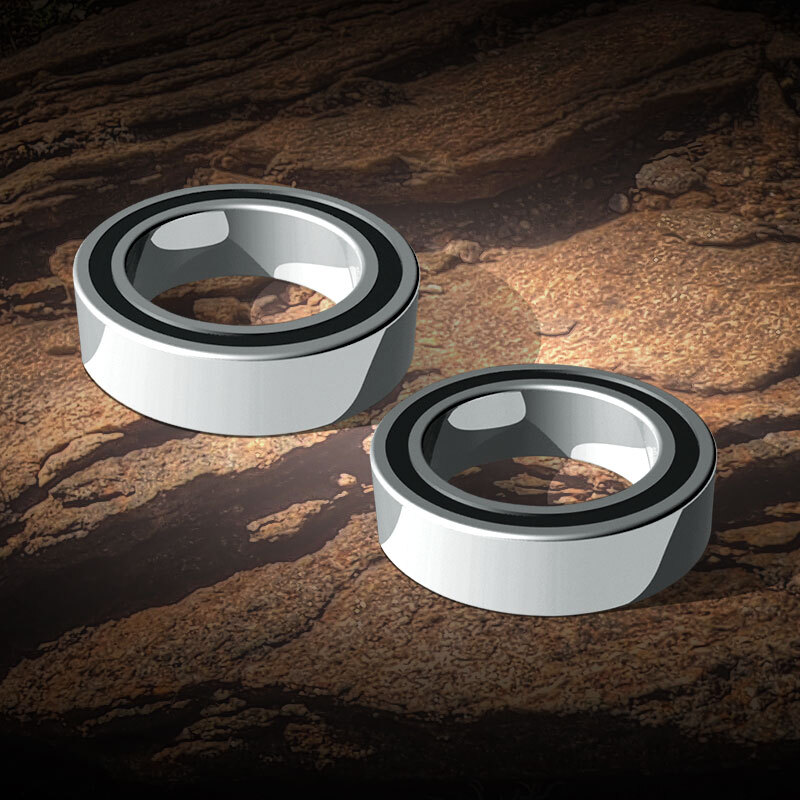

Sealed Ball Bearings
Geometry

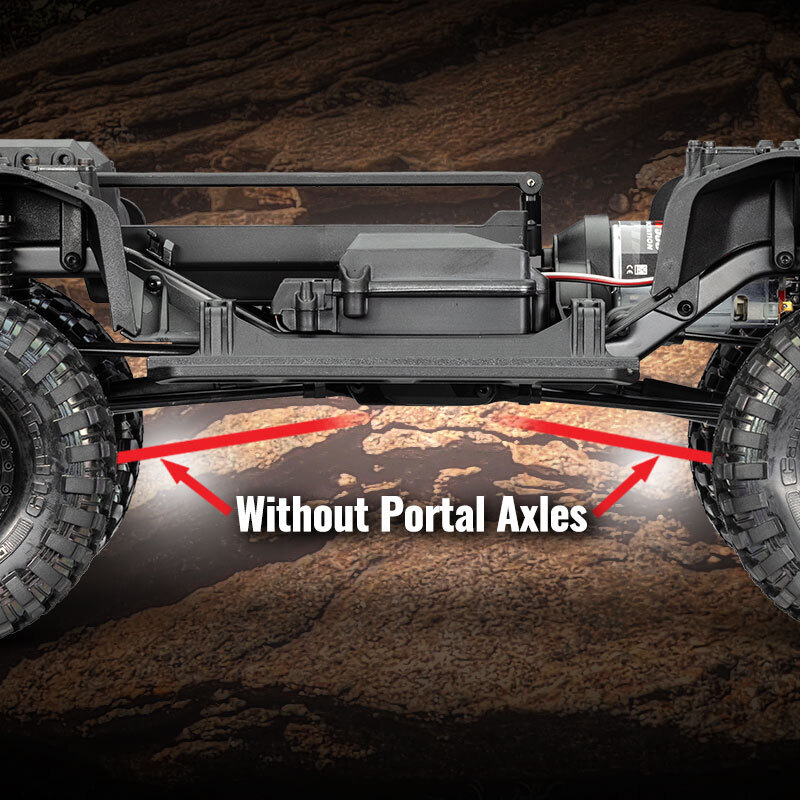

Raised Center Driveshafts and Suspension Links

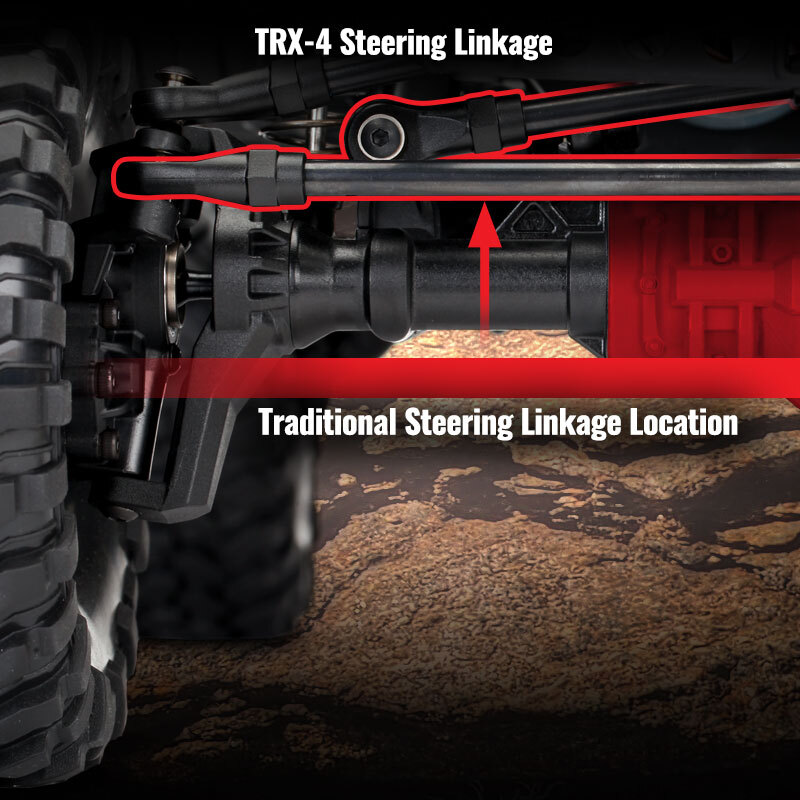

High Steering and Drag Links

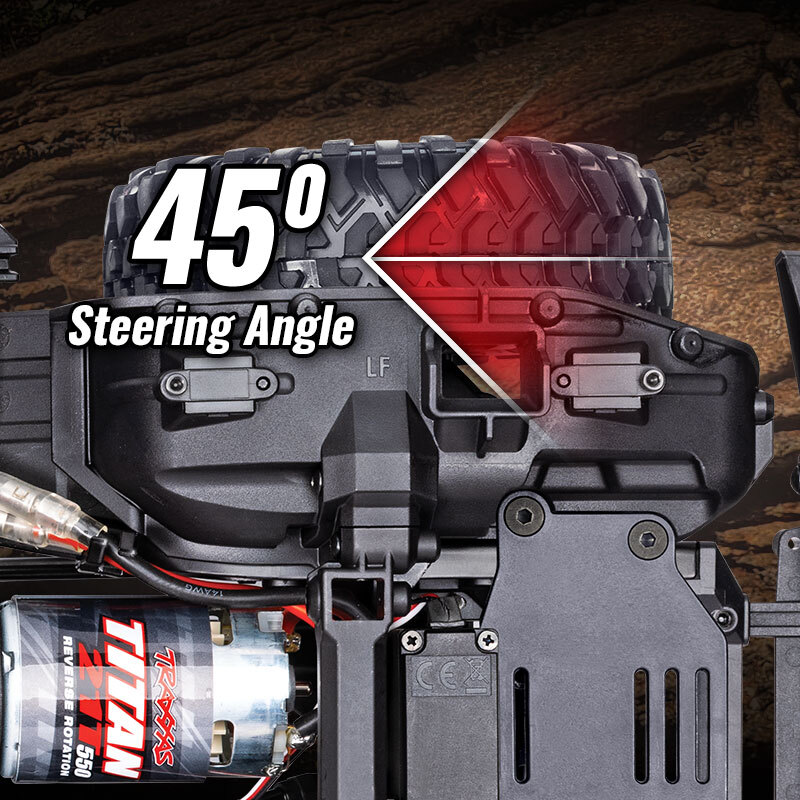

45-Degree Steering Angle

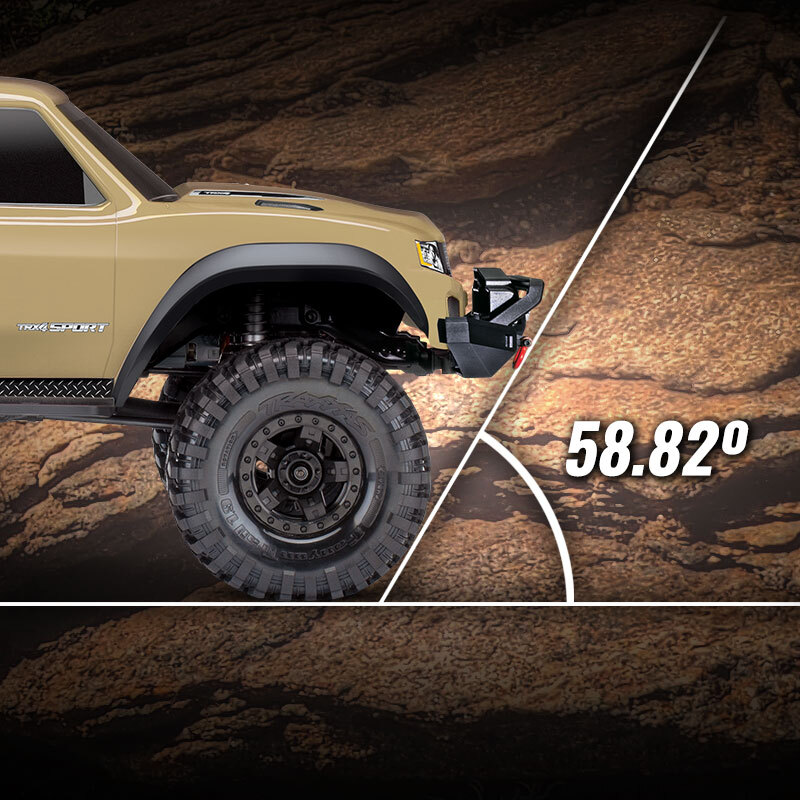

Extreme Approach Angles

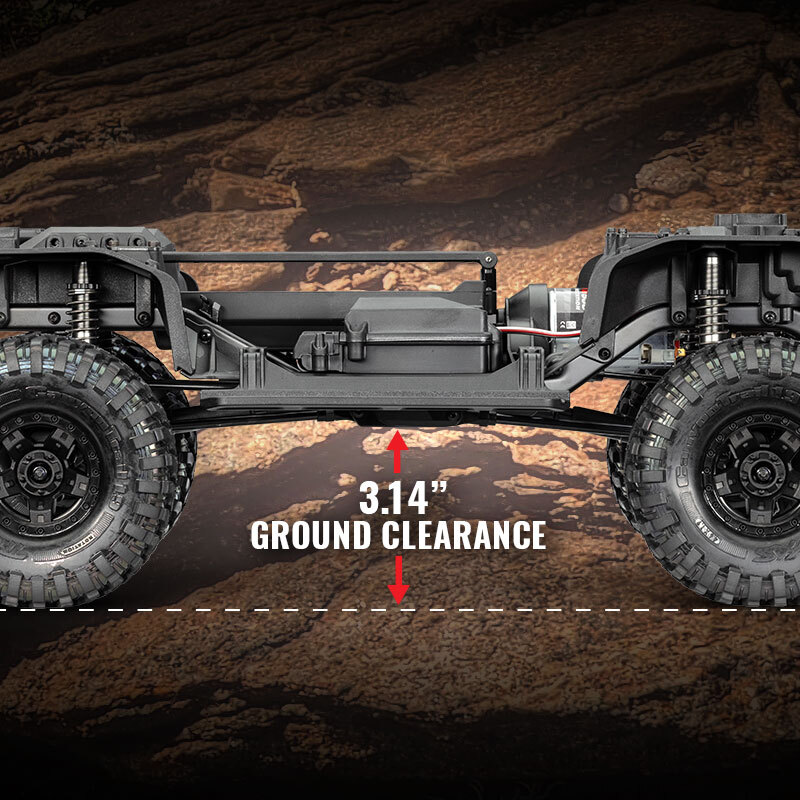

High Ground Clearance

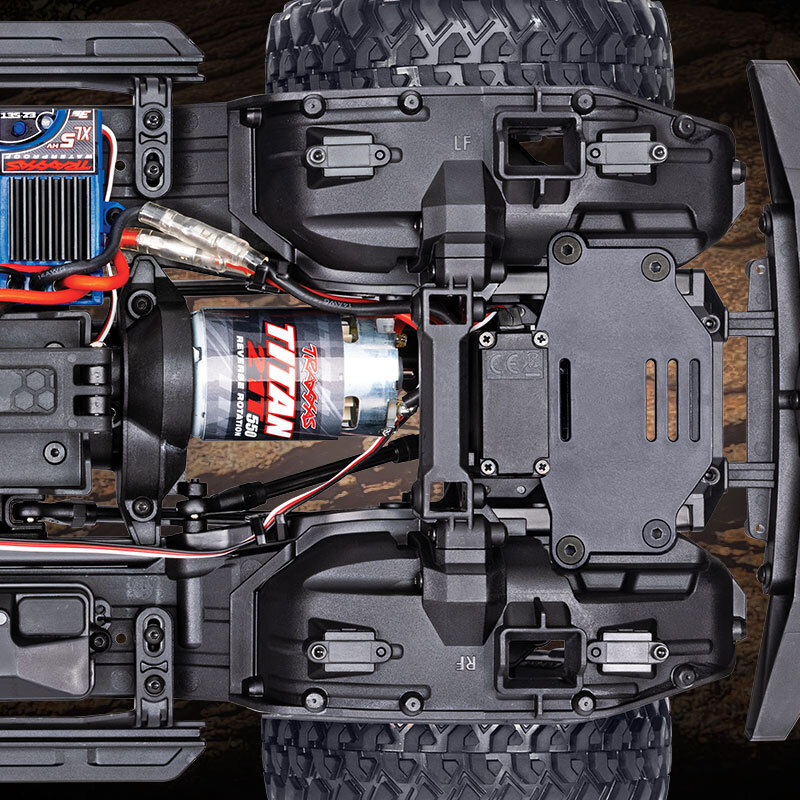

Front Motor Design
Electronics
New XL-5 HV ESC

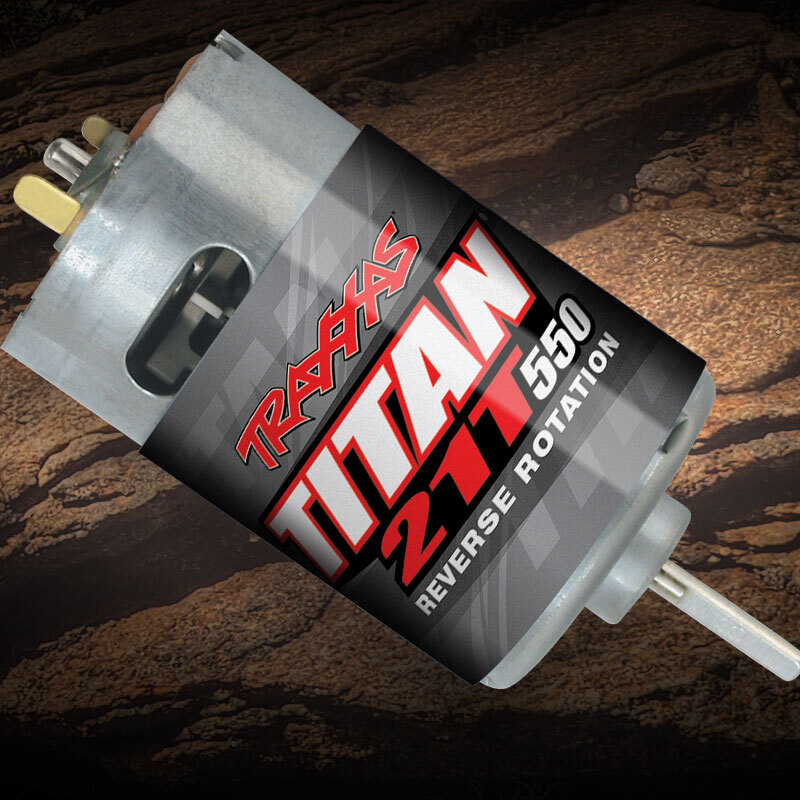

Titan 21T 550 Motor

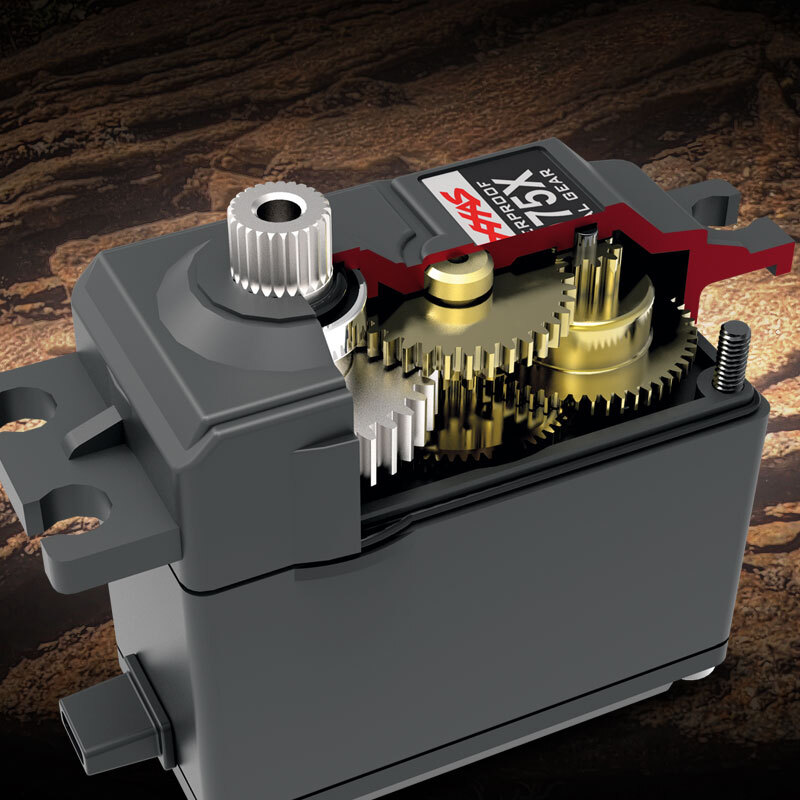

Waterproof Metal Gear Servo

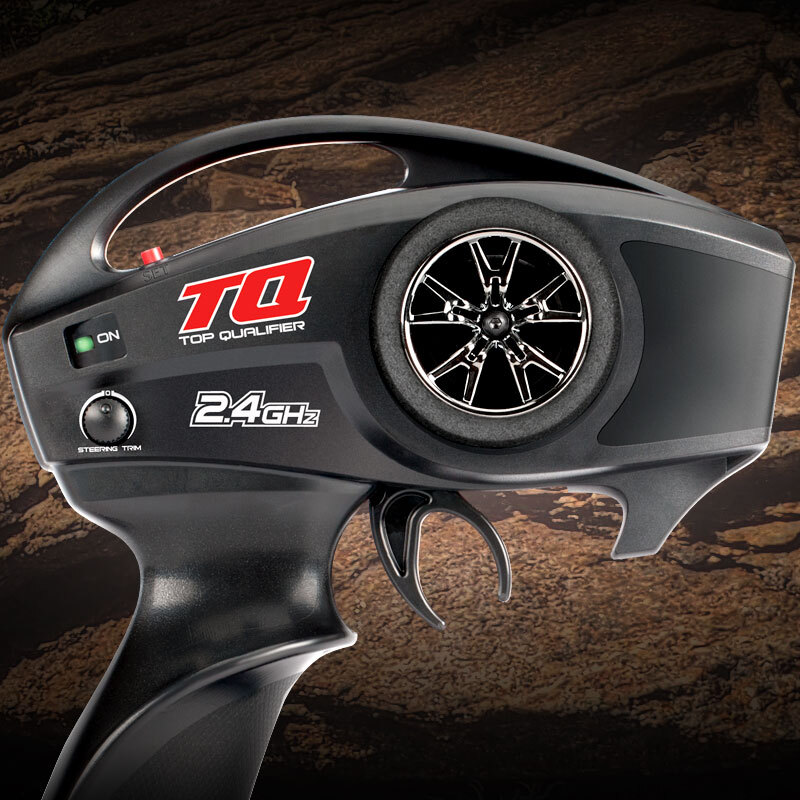

TQ™ 2-Channel Radio System
Vehicle Specifications
| Length: | 21.93 inches (557 mm) |
|---|---|
| Front Track: | 9.78 inches (249 mm) |
| Rear Track: | 9.78 inches (249 mm) |
| Ground Clearance: | 3.14 inches (80 mm) |
| Weight: | 5.79 pounds (2.63 kg) |
| Height: | 9.47 inches (241 mm) |
| Wheelbase: | 12.28 inches (312 mm) |
| Approach Angle: | 58.82° |
| Departure Angle: | 45.83° |
| Breakover Angle: | 59° |
| Front Shock Length: | 3.54 inches (90 mm) |
| Rear Shock Length: | 3.54 inches (90 mm) |
| Front Wheels: | 1.9″ x 1.02″ (49 x 26 mm) |
| Rear Wheels: | 1.9″ x 1.02″ (49 x 26 mm) |
| Front Tires: | 4.64″ x 1.89″ (118 x 48 mm) |
| Rear Tires: | 4.64 x 1.89″ (118 x 48 mm) |
Motor Specifications
| Type: | High-torque brushed motor |
|---|---|
| Size: | 550 |
| Weight: | 13.76 ounces (390 g) |
| Length: | 3.07″ (78 mm) overall length, 2.25″ (57 mm) can length, 1.53″ (39 mm diameter) |
| Turns: | 21T reverse rotation |
| Voltage: | 16.8 volts |
ESC Specifications
| Input Voltage: | 6–7 cells NiMH, 2–3s LiPo |
|---|---|
| Case Size: | 1.23″ W x 2.18″ D x 1.04″ H |
| Weight: | 2.6 ounces (74 g) |
| Motor Limit: | 21-turns (550 size) |
| On Resistance Forward: | 0.004 ohms |
| On Resistance Reverse: | 0.004 ohms |
| Peak Current - Forward: | 100 amps |
| Peak Current - Reverse: | 100 amps |
| Braking Current: | 60 amps |
| Continuous Current: | 18 amps |
| BEC Voltage: | 6.0 volts |
| BEC Current: | 1 amp |
| Power Wire: | 14 gauge / 5″ |
| Input Harness Wire: | 26 gauge / 14.5″ |
Features List
- Lightweight Pickup Truck Body
- Keeps the CG low for improved climbing stability
- Low profile bumpers for increased clearance
- Red differential covers and D-rings
- Clipless Body Mounting
- Clipless design for smooth body appearance
- Fast and easy removal for ultimate convenience
- Trail-Tuned XL-5 HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
- Sport Mode — forward / brake / reverse
- Race Mode — forward / brake / no reverse
- Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
- Two stage low voltage protection (LVD)
- Motor
- Powerful Titan® 21T reverse rotation motor with internal cooling fan
- Precise preset gear mesh adjustments
- Motor retention separate from gear mesh
- Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
- Rigid Steel Frame
- 1.5 mm thick steel frame rails increase torsional rigidity
- Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
- Adjustable rear shock tower positions for SWB and LWB configurations
- Bumpers adjust fore and aft
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
- Drivetrain
- Full-time shaft driven 4-wheel drive
- Tough 6mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Spool-locked front and rear differentials
- Steel gear transfer case
- Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
- Transmission
- Single-speed with steel gears
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
- Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
- Suspension
- Front — 3 link with panhard
- Rear — triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5 mm diameter steel link rods with 4mm threaded ends
- Aluminum GTS Shocks
- Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
- Wheels and Tires
- Rugged black 5-spoke wheels
- Pre-mounted 1.9″ Canyon Trail tires with trail-tuned foam inserts
- Trail tuned S1 rubber compound
- 12 mm steel hex
- TQ™ 2.4 GHz 2-channel transmitter
- Patented O-Ring Sealed Watertight Receiver Box Keeps the Micro Receiver Dry
- Sealed Ball Bearings
- Hex Hardware with Rust-Resistant Black Oxide Coating
What's Included?
What’s In The Box:
- TRX-4, Ready-To-Drive model
- XL-5 HV waterproof electronic speed control
- Titan™ 21T reverse rotation motor
- TQ 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:
- Batteries
TRX-4 accepts a wide variety of NiMH (6–7 cell) and LiPo (2s–3s) batteries.
- Charger
Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model 2971).
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
Additional Information
Oversized Item: |
Yes |
Model Type: |
Truck |
Drive: |
4WD |
Completeness: |
RTR-Ready to Run |
Scale: |
1/10th |
Power: |
Electric |
