Traxxas

TRA3382 TRAXXAS BL-2s Brushless Power System

(No reviews yet) Write a Review
SKU:
TRA3382
UPC:
020334015433
  • TRA3382 TRAXXAS BL-2s Brushless Power System
  • TRA3382 TRAXXAS BL-2s Brushless Power System
  • TRA3382 TRAXXAS BL-2s Brushless Power System
$99.95

Description

TRA3382 TRAXXAS BL-2s Brushless Power System

Note: Graves RC Coupons are not applicable with this product

The BL-2s brushless power system delivers more speed, faster acceleration, and virtually maintenance-free operation at an affordable price. Drivers experience smooth, effortless power with added punch for tire-shredding burnouts and blazing fast speed. Optimized for 7-cell NiMH and 2s LiPo batteries, the BL-2s delivers all-day fun, battery after battery.

BL-2s Brushless Electronic Speed Control

The waterproof BL-2s speed control delivers all the benefits of brushless technology with the safety and convenience features you expect from Traxxas. Built-in low-voltage detection, thermal shutdown protection, and EZ-Set® one button programming make BL-2s reliable and easy to operate.

BL-2s ESC Features

  • Fully waterproof
  • Built-in two-stage low voltage detection for lithium polymer (LiPo) batteries
  • NiMH battery packs 6-7 cells (7.2 - 8.4 V) or 2-cell LiPo battery packs (7.4 V)
  • Patented Training Mode reduces the power output by 50% for new or younger drivers. When they're ready, simply change profiles to unleash full-throttle action.
  • EZ-Set® one-button setup operates and programs just like other Traxxas speed controls
  • Three programmable drive profiles:
    • Sport Mode – Fwd / Brake / Rev
    • Race Mode – Fwd / Brake
    • Training Mode– 50% Fwd / Brake / 50% Rev
  • Multi-color status LED
  • Two-stage thermal shutdown protection protects the BL-2s from overheating
  • Large aluminum heatsink dissipates heat
  • Built-in auxiliary fan output
  • Keyed motor connector

BL-2s Brushless Motor

The sensorless BL-2s 3300 kV motor delivers the all-day speed and torque you expect from brushless technology, without the high price tag. With no brushes to wear out, the BL-2s is long-lasting and virtually maintenance free. Low-friction ball bearings and an integrated cooling fan open the door to all-day fun.

BL-2s Brushless Motor Features

  • Integrated cooling fan
  • Low-maintenance design
  • High-speed ball bearings
  • 3300 kV

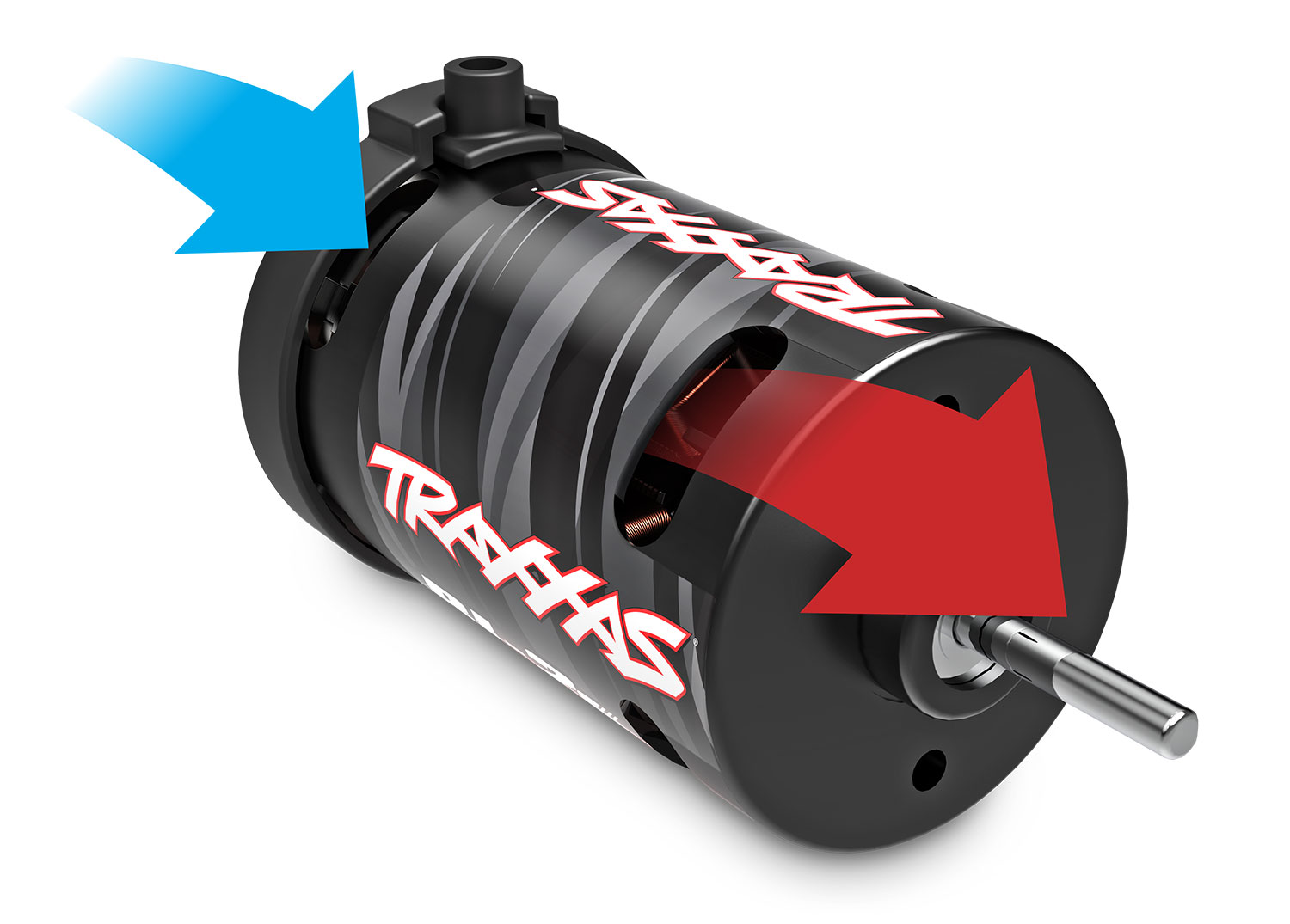

Integrated Cooling Fan

With no brushes to wear out, the BL-2s brushless motor delivers long-term fun with very low maintenance. An integrated fan pulls cooling air through the motor for all-day running without slowing down.

Quick Connect Motor Plug

The Traxxas Quick Connect Motor Plug delivers free-flowing power from the ESC to the motor. The specially-keyed design aligns the plug in the correct orientation every time.

BL-2s WATERPROOF ESC SPECIFICATIONS
Input Voltage:   NiMH 6-7 cells (7.2 to 8.4 volts);
LiPo 2 cell (7.4 volts)
Case Size:   39 mm W x 59 mm D x 31 mm H
Weight:   87 grams
Reverse Delay:   Yes, with lockout
BEC Voltage:   6.0 volts
BEC Current:   3 amps
Input Wire:   14 gauge
Motor Connectors:   Quick Connect Motor Plug
Input Harness Wire:   26 gauge
Low Voltage Detection:   2-stage indicators, switchable (on or off)
Thermal Protection:   2-Stage thermal shutdown
Profile selection:   Sport Mode:
    100% Fwd, 100% Brake, 100% Rev
Race Mode:
    100% Fwd, 100% Brake, No Rev
Training Mode:*
    50% Fwd, 100% Brake, 50% Rev
Single-Button Setup:   Traxxas EZ-Set®
Battery Input Connector :   Traxxas High-Current Connector
Motor Types:   Brushless
Accessory Port:   Auxiliary fan



BL-2s BRUSHLESS MOTOR SPECIFICATIONS
Type:   Sensorless brushless
kV:   3300 kV
Wire Size:   16 gauge
Cooling:   Integrated cooling fan
Motor Length:   57 mm
Can Diameter:   37 mm
Weight:   201 grams
