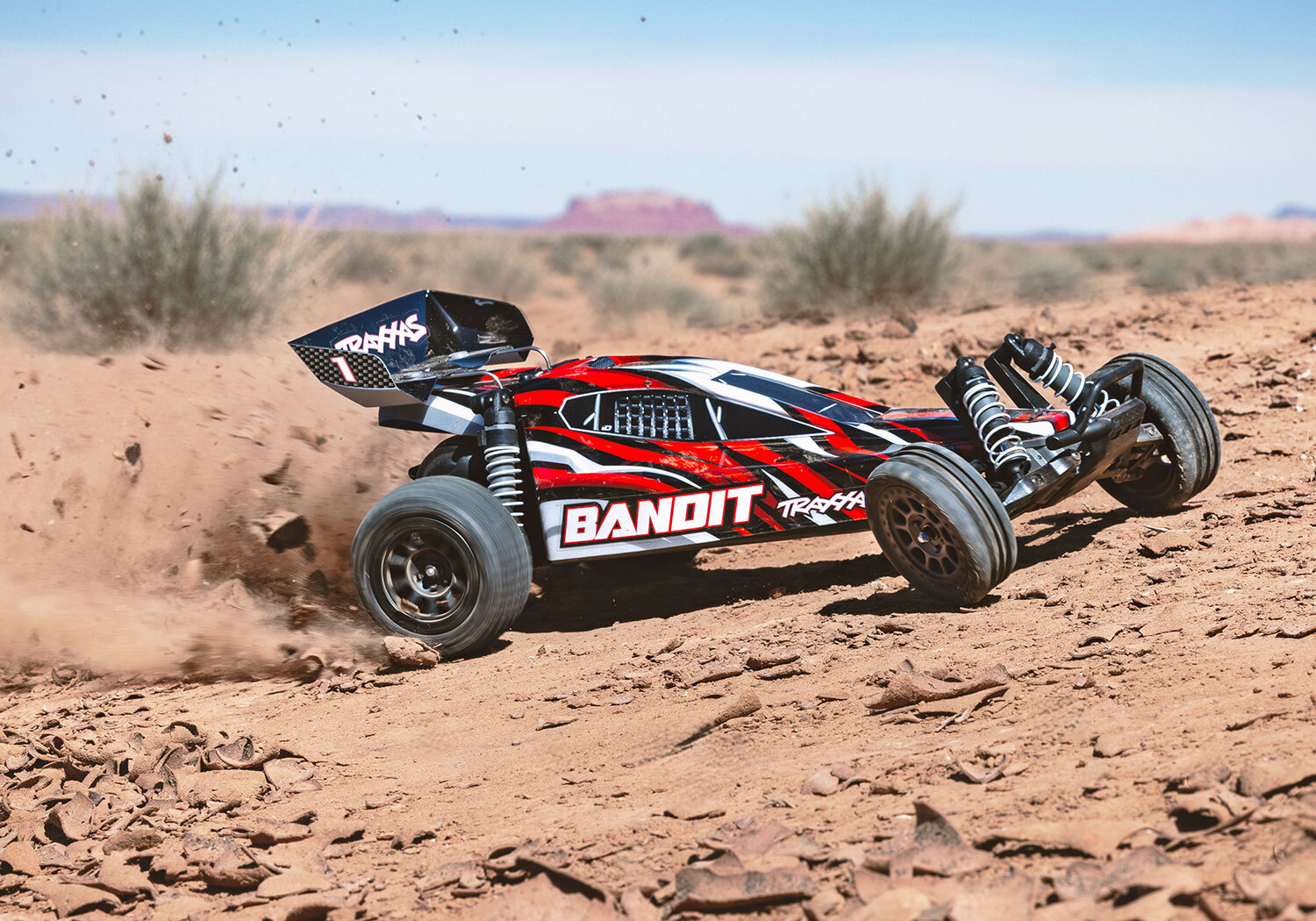

TRA24254-8REDX TRAXXAS Bandit XL-5 with Battery - Red
THIS ITEM DOES NOT QUALIFY FOR FREE SHIPPING
Note: Graves RC Coupons are not applicable with this product
2WD RC Race Buggy
Bandit® elevates the RC buggy experience with its factory-installed Extreme Heavy-Duty suspension components for next-level durability. Bandit’s sleek, lightweight chassis delivers razor-sharp handling and blazing 35+ mph speed. Pull the trigger and Bandit rips massive rooster tails, soars over jumps, and lays down the power for excitement at every turn. Equally at home off-road or on pavement, Bandit’s fully waterproof electronics make even the wildest all-weather adventures possible.
Extreme HD Suspension Components - Bandit comes outfitted with factory-installed Extreme Heavy-Duty suspension components and arms for ultimate strength and durability. The rear axle carriers, C-hubs, and steering blocks are beefed up with more material and stronger construction.
Includes Battery and Charger - Bandit includes a powerful 8.4-volt 3000 mAh Traxxas Power Cell rechargeable NiMH battery pack to reach top speed. Fast 4-amp charging is available virtually anywhere thanks to the included 45+ watt USB-C battery charger with iD® technology.
Powerful Titan Motor - Bandit reaches its blistering 35+ mph top speed thanks to a powerful Titan® motor and XL-5™ speed control. An integrated cooling fan draws air into the motor to keep temperatures down. The XL-5 ESC provides smooth, reliable power with EZ-Set® one-button setup and three drive profiles.
Aggressive Body & Wing - Bandit comes loaded for fun with a sleek offroad buggy body designed for high-speed passes. The body comes fully trimmed and painted with bold graphics with a high-downforce wing to help Bandit maintain stability at high speeds.
Details
Alias Tires and Tracer Wheels - Bandit rides on stylish 2.2" black multi-spoke wheels with pre-glued tires and foam inserts. Alias step-pin rear tires and ribbed front tires keep Bandit firmly planed on extreme off-road terrain.
Titan 12-Turn 550 Motor - The large 550-size Titan motor delivers dirt-roosting torque and lightning-quick acceleration. The integrated cooling fan lowers running temperatures for more fun behind the wheel. The Titan 12T requires very little maintenance and provides consistent performance run after run.
Waterproof Steering Servo - The Traxxas 2056 steering servo provides quick, consistent steering on any terrain with 80oz-in of steering muscle. the fully waterproof servo uses special O-ring seals to keep the fun going even when things get wet.
One-Piece Camber Links - Bandit's durable one-piece camber links are perfect for bashing because they maintain proper suspension geometry and never require adjustments. Captured rod ends provide unmatched durability and they won't pop off.
Bellcrank Steering - Bandit's high-performance bellcrank steering system delivers sharp handling and increased steering precision. This innovative design minimizes bump steer to increase cornering stability.
Heavy Duty Suspension Arms - Molded from our toughest composite material, Bandit's heavy duty suspension arms provide just the right amount of flex to resist breaking. These suspension arms stand up to even the most punishing drivers for non-stop wheel-to-wheel racing.
Hex Hardware - Bandit's hex-drive hardware provides a more positive and secure connection than other fasteners. The black-oxide coating provides a rust resistant high-tech look and feel.
Tube Front Bumper - Bandit's rugged tube-style front bumper helps ward off crash damage to protect the chassis against impacts. The bumper also features bosses to mount accessory LED lights.
Oil-Filled Ultra Shocks - Bandit's oil-filled Ultra Shocks utilize X-rings for a perfect seal and super-smooth performance. Adjust the ride height and spring pre-load with the included spacer clips. Ultra Shocks are fully tunable with a wide range of oils, springs and pistons available.
Extreme HD Suspension Components - Bandit comes outfitted with factory-installed Extreme Heavy-Duty suspension components for ultimate strength and durability. the rear axle carriers, C-hubs, and steering blocks are beefed up with extra material and stronger constructions to withstand even the most brutal punishment.
Motor Mount with Integrated Cooling Channels - The sealed gearbox protects the transmission components from dirt and rocks. The motor plate's finned cooling channels allow the Titan's internal fan to pull air through the motor for superior cooling.
The Magnum 272's All Metal Gears ride on ultra-smooth sealed ball bearings. The bulletproof Torque-Control slipper clutch and metal transmission gears are ready to handle any power system upgrade including the extreme Velineon brushless power system.
Torque-Control Slipper Clutch - Semi-metallic pads and finned aluminum alloy pressure plates dissipate heat and provide consistent traction. The semi-metallic friction material remains stable across a wide temperature range to provide smooth, linear engagement. Spur gears can be removed and replaced without altering the slipper adjustment.
Planetary Gear Differential - The planetary gear differential uses hardened steel internal gears for maximum strength during rigorous off-road bashing. The type of differential requires virtually no maintenance, and its efficient design puts maximum tire-shredding power to the wheels.
Model Specifications
| Name: | Bandit HD w/USB-C |
|---|---|
| Type: | Buggy |
| Speed: | 35+ mph with 7-cell battery |
| Skill Level: | 1 |
| Scale: | 1/10 |
| Weight: | 3 pounds (1.36 kg) |
| Length: | 16.25 inches (413 mm) |
| Width: | 9.84 inches (250 mm) |
| Front Track: | 9.84 inches (250 mm) |
| Rear Track: | 9.84 inches (250 mm) |
| Height: | 7 inches (178 mm) |
Motor Specifications
| Name: | Titan® 12T 550 |
|---|---|
| Type: | High-speed brushed motor |
| Weight: | 8.47 ounces (240 g) |
| Length: | 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length |
| Diameter: | 1.41 inches (36 mm) |
| Shaft Size: | 3 mm |
| Connector Type: | Bullet |
ESC Specifications
| Name: | Waterproof XL-5 ESC with low-voltage detection |
|---|---|
| Type: | Brushed |
| Case Size: | 1.23 inches (31 mm) / 2.18 inches (55 mm) / 0.61 inches (15 mm) |
| Weight: | 2.44 ounces (69 g) |
| Motor Connectors: | Bullet |
| Battery Connectors: | Traxxas High-Current Connector |
| Power Wire: | 14 gauge |
Features
- ProGraphix® Painted Body
- Pre-painted body with applied decals
- Aggressive, aerodynamic body with rear wing
- High-Performance Waterproof XL-5™ Electronic Speed Control
- Innovative waterproof design
- Three drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Traxxas EZ-Set® ;one-button setup
- LiPo and NiMH compatible with two-stage low-voltage detection
- Titan® 550 Motor
- Powerful Titan 12T 550 modified motor with internal cooling fan
- Oversized armature for big torque and increased power handling
- Virtually maintenance-free operation
- TQ™ 2.4 GHz 2-Channel Radio System
- Ergonomic transmitter with internal antenna
- Traxxas 6519 3-channel micro receiver with fail-safe security
- Sealed watertight receiver box keeps the receiver dry
- Extreme Heavy Duty Parts Installed
- Strengthened C-hubs, axle carriers, and steering blocks
- HD suspension arms
- Includes Battery and Charger
- 4-amp USB-C fast charger
- 3000 mAh Traxxas 7-cell 8.4 V NiMH battery with iD®
- Tough Fiber-Composite Monocoque Chassis
- Wide, low-profile design for increased stability
- All electronics securely fastened to chassis
- Easy Access Battery Compartment
- Accepts 7-cell flat packs and hump packs
- Accepts 2-cell LiPo batteries
- Transmission and Driveline
- Brushless-ready Magnum 272™ metal-gear transmission
- Torque-Control™ slipper clutch system
- Planetary gear differential with steel ring gear
- Sealed gearbox protects the transmission with beefed up motor guard
- External gear cover with easy clutch access
- Heavy-duty telescoping U-joint driveshafts and yokes
- Steering
- High-torque waterproof Traxxas 2056 steering servo
- High-performance bellcrank system minimizes bump steer
- Suspension
- Durable solid camber links eliminate the need for adjustment
- Captured rod ends won't pop off
- Springs and Shocks
- Fully adjustable oil-filled Ultra Shocks™ ;with X-ring technology
- White powder-coated springs
- Wheels and Tires
- Pre-glued Alias® step-pin rear tires and ribbed front tires with performance foam inserts
- 2.2″ black multi-spoke wheels
- Precision Hex Hardware
In The Box
- Bandit 2WD with XL-5™ ESC and Titan® 550 Motor
- TQ™ 2.4 GHz radio system
- Traxxas 3000 mAh, 8.4-volt 7-cell NiMH battery with iD®
- 4-amp USB-C fast charger
- High quality maintenance tools
Needed to Complete
- Batteries
Four AA alkaline batteries for the transmitter.
Additional Information
Oversized Item: |
Yes |
Model Type: |
Buggy |
Drive: |
2WD |
Completeness: |
RTR-Ready to Run |
Power: |
Electric |
Scale: |
1/10th |
