Description

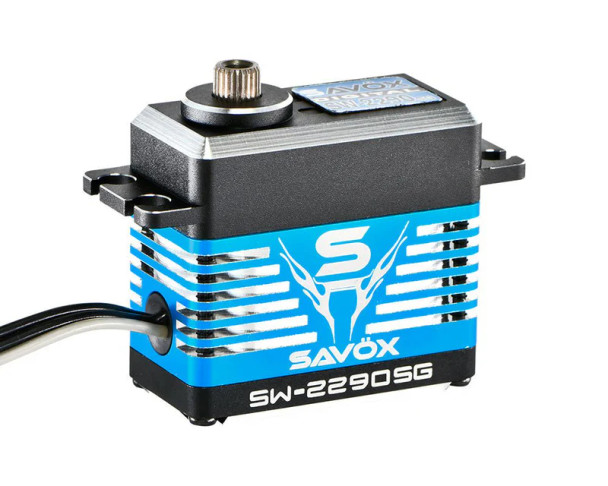

SAVSW2290SG SAVOX Waterproof Premium, High Voltage, Brushless, Digital Servo 0.11sec / 972.1oz @8.4v
Description
The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.
Features
- Waterproof (IP67)
- Full Aluminum Case
- 3 Precision Ball Bearings.
- Unique steel gears
Specifications
- Torque @ 6v - 45.0kg
- Torque @ 7.4v - 55.0kg
- Torque @ 8.4v - 70.0kg
- Speed @ 6v - 0.16 sec/60 deg
- Speed @ 7.4v - 0.13 sec/60 deg
- Speed @ 8.4v - 0.11 sec/60 deg
- Dimensions L x W x H (mm): 41 x 21.0 x 39.9
- Weight: 81g
Additional Information
Max Voltage: |
8.4v |
Min Voltage: |
6.0v |
Gear Material: |
Metal Gear |
Motor: |
Brushless |
Servo Name: |
SW-2290SG |
Power: |
6.0v - 8.4v |
Speed 6.0v: |
0.10 sec/60° - 0.19 sec/60° |
Speed 7.4v: |
0.10 sec/60° - 0.19 sec/60° |
Speed 8.4v: |
0.10 sec/60° - 0.19 sec/60° |
Size: |
Standard |
Weight: |
2.5 - 2.99 oz |
Torque 6.0v: |
More Than 200 oz - in |
Torque 7.4v: |
More Than 200 oz - in |
Torque 8.4v: |
More Than 200 oz - in |
