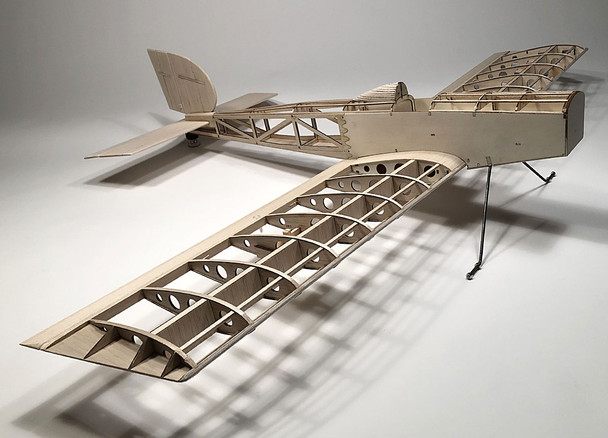

OSMWSR40KIT Old School Model Works Sky Ranger 40 Kit
THIS ITEM DOES NOT QUALIFY FOR FREE SHIPPING
Specifications:
- Wingspan: 60 inches
- Wing Area: 527 square inches
- Length (airframe only): 42.75 inches
- Weight: 3.5 - 4.5 pounds
Requires:
Radio:
• 4 channel system
• 2 40-70 in./oz. servos for elevator and rudder;
• 2 40-70 in./oz. servos for ailerons;
• 1 40-70 in./oz. servo for throttle (if using a glow engine)
Power:
• Electric (minimum 800 watt motor, 80 amp ESC, 4-5S LiPo)
• Glow ( .40-.45 engine, 6 ounce tank, fuel tubing)
Additional items needed to complete the Sky Ranger 40 kit:
• 4 channel radio and servos
• Propeller
• Engine/Motor mount & mounting hardware
• “Y” servo harness (for ailerons)
• Pushrods (two 5” for ailerons, two 24” for elevator & rudder, one 12” for throttle if glow powered)
• Clevises for the pushrods (8 if electric, 10 if glow).
• Two 3” diameter main wheels
• 1 - tailwheel
• Covering
Additional Information
Oversized Item: |
Yes |
Kit Type: |
Kit |
Power: |
Electric |
Power: |
Glow/Nitro |
Model Type: |
Trainer |
