KYOSHO

KYO32646R KYOSHO Mini-Z AWD Mazda Savanna RX-7 FC3S with Aero Kit and CFRP Hood - Red

(No reviews yet) Write a Review
SKU:
KYO32646R
UPC:
4548565477258
  • KYO32646R KYOSHO Mini-Z AWD Mazda Savanna RX-7 FC3S with Aero Kit and CFRP Hood - Red
  • KYO32646R KYOSHO Mini-Z AWD Mazda Savanna RX-7 FC3S with Aero Kit and CFRP Hood - Red
  • KYO32646R KYOSHO Mini-Z AWD Mazda Savanna RX-7 FC3S with Aero Kit and CFRP Hood - Red
$189.99

Description

KYO32646R KYOSHO Mini-Z AWD Mazda Savanna RX-7 FC3S with Aero Kit and CFRP Hood - Red

THIS ITEM DOES NOT QUALIFY FOR FREE SHIPPING

Description

AWD series is a Four Wheel Drive chassis with Drift tires and paired with the
Syncro KT-531P Transmitter. Perfect for drifting in small spaces.

To bring its dynamic performance to even more drivers, the MINI-Z AWD is now available in a Readyset. The MA-020 chassis features VCS (variable camber suspension) on the front that optimizes camber change with suspension stroke and a specially designed circuit board. The chassis design allows space for installing the optional gyro unit(Sold separately:No.MZW446). The gyro can be adjusted by turning a small volume on the chassis to reflect the amount of steering correction in response to changes in chassis posture, allowing beginners through to experts to drive to their full potential. Fully fitted out with precision ball bearings, the high drive efficiency of the MA-020 chassis is complimented in the Readyset by the unique scale body and 2.4GHz Syncro KT-531P R/C system that requires no frequency band setting, all at a great value price. Simply set the batteries to enjoy the thrill of drift driving with the included set of drift tires. The chassis is compatible with nearly all ASC MINI-Z bodies (additional parts maybe required for some body styles). The MINI-Z AWD promises a unique world of dramatic racing action for you to experience and enjoy.

*The separately sold LED light unit set (No.MZW429R) cannot be installed on the MAZDA SAVANNA RX-7 FC3S with Aero Kit and CFRP hood Red.

●MINI-Z AWD Readyset based on MA-020 chassis.
●Circuit board updated with optimized steering control program.
●Chassis features gyro sensitivity adjustment function.
●Drift tires are installed as standard.
●Readyset requires only batteries to be ready for action!
●Features 2.4GHz Syncro KT-531P transmitter that requires no setup of frequency bands.
●Factory completed body comes with display model quality finish.
●Features VCS (variable camber suspension) that adjusts camber in accordance with suspension stroke.
●Coil spring on front suspension can be easily replaced.
●Wide range of optional parts is available to be installed.
●Note: Optional ICS can NOT be used. Also, this model is specially designed for the KT-531P transmitter. It is not compatible with the KT-18, KT-19, EX-5UR ASF, EX-6 or EX-6R transmitters. It is only compatible with the special gyro unit (sold separately:No.MZW446).
●The package includes a light pod set that customers can modify and attach to the body themselves.


technical-image-01

The second-generation RX-7 released in 1985 remains incredibly popular and renowned for its unique rotary engine. Known as the FC, this model elevates performance with its huge rear wing and carbon bonnet.




technical-image-02

Includes Syncro KT-531P transmitter. Features steering / throttle trim as well as dual rate adjustment of steering angle and control of the flashing speed of optional LEDs. In addition, the transmitter has a Training Mode feature which limits speed of the car for easy learning (default setting at the time of shipment is Training Mode).




technical-image-03

AWD chassis is based on the MA-02 chassis and features the RA45 unit.




technical-image-04

Features VCS front suspension that optimizes camber change in concert with suspension stroke. Replacement of front suspension coil springs is easy.




technical-image-05

Equipped with strut-type rear suspension.

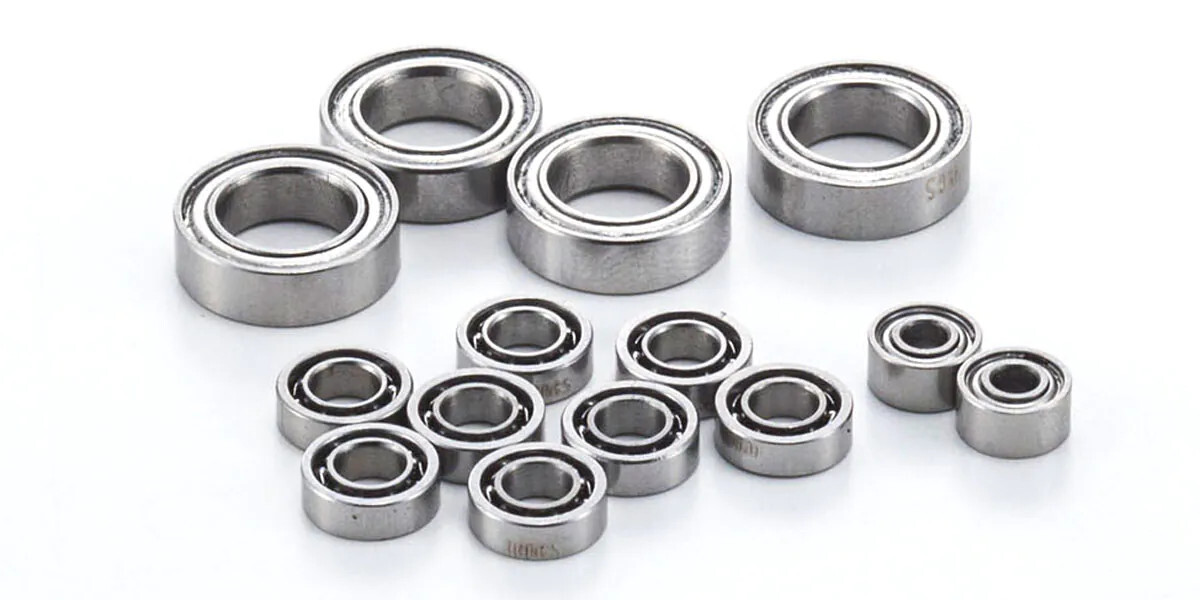

Full bearing specifications include 14 ball bearings.




technical-image-07

Equipped with drift tires as standard.




technical-image-08

Equipped with special mount space and gyro adjustment volume for the optional gyro unit (sold separately:No.MZW446).



■Length 164.0mm
■Width 70.0mm
■Height 46.0mm
■Wheelbase 90.0mm(M)
■Tread F : 58.5mm R : 58.5mm
■Chassis MA-020-N
■Front Wheel Offset Narrow +1.0mm
■Rear Wheel Offset Narrow +1.0mm
■R/C System Syncro KT-531P

● R / C unit built-in complete chassis
● Painted and marked complete body
● Syncro KT-531P transmitter
● Mini pylon
● Pinion gear (15T, 17T, 19T, 21T)
● Spur gear (27T, 29T, 31T)
● Spare nut
● Wheel wrench
● Pinion removal tool
●Headlight parts (Open/closed)

●AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.
●AAA-size alkaline batteries x 4 for transmitter

View AllClose

Additional Information

Oversized Item:
Yes
Model Type:
Car
Power:
Electric
Drive:
2WD
Completeness:
RTR-Ready to Run
