Description
KYO30645 KYOSHO 1/10 Ultima '87 2WD Off-Road Buggy Kit, 20th Anniversary WC Worlds Spec Limited Edition
THIS ITEM DOES NOT QUALIFY FOR FREE SHIPPING
Secret high performance team buggy finally revealed to the world!
Overview
At the 1987 EP (Electric) Off-Road World Championships in the UK, the Kyosho Ultima achieved total domination with a clean sweep of the podium. This limited-edition model based on the Kyosho Works team car, designed and driven by Akira Kogawa, has been released to commemorate the 20th anniversary of Kyosho America. Featuring the works model specifications with gunmetal anodized aluminum and carbon fiber parts, this model combines a wide range of optional upgrades including new components to elevate its dynamic driving performance. With the same sharp low-profile body designed for the Optima Pro combining with the latest R/C engineering technology, the new Ultima ‘87 World Championship Spec lets you relive the cutting edge driving performance of that era, 37 years after its spectacular World Championship performance.
Features
- Commemorating the 20th anniversary of Kyosho America, the World Championship Works 2WD buggy becomes the 17th release in the Kyosho Vintage Car series.
- Special components and unique colors distinguish this limited-edition reproduction of the 1987 World Championship winning model.
- Features a wide variety of optional parts that were previously optional upgrades at a great value price compared to individual purchase.
- While following the original design from 1987, each part has been updated to match modern R/C systems and power sources.
- Unassembled kit requires R/C system, motor and batteries.
- All rods are turnbuckle type, making it easy to adjust camber and toe angles.
- Full bearing specification, even in the servo saver.
- Dial-adjustable oil shocks allow for easy vehicle height adjustment.

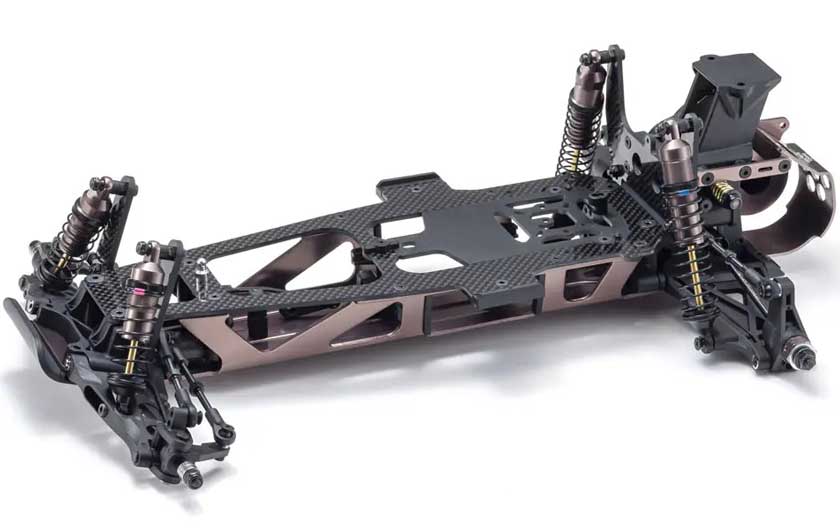

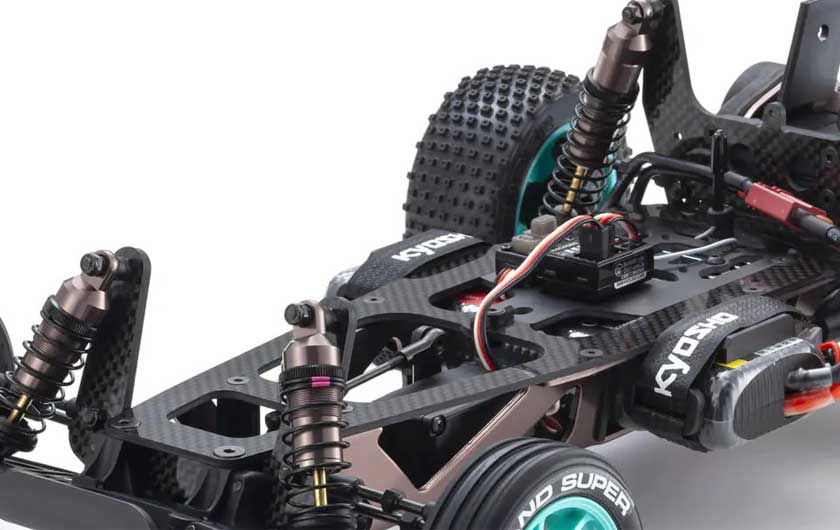

2WD Buggy Chassis - Rear motor mounted 2WD buggy produces excellent driving stability with its high-strength aluminum monocoque chassis anodized in limited edition gunmetal color in combination with a newly designed hybrid carbon upper plate.
Optima Pro Body - Recognised for its stylish form and superior aerodynamics, the included Optima Pro body features a special Kyosho America 20th anniversary decal set with cut lines matched to the Ultima.

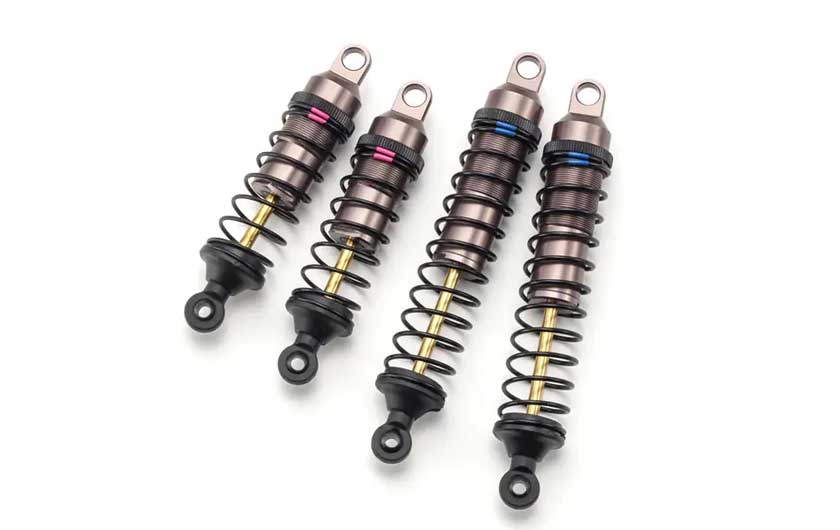

Titanium Shaft Oil Shocks - Large capacity oil shocks feature titanium coated shafts for smooth function and durability plus dial adjustable ride height. Shock caps and cases are finished in the Kyosho Works signature gunmetal color.

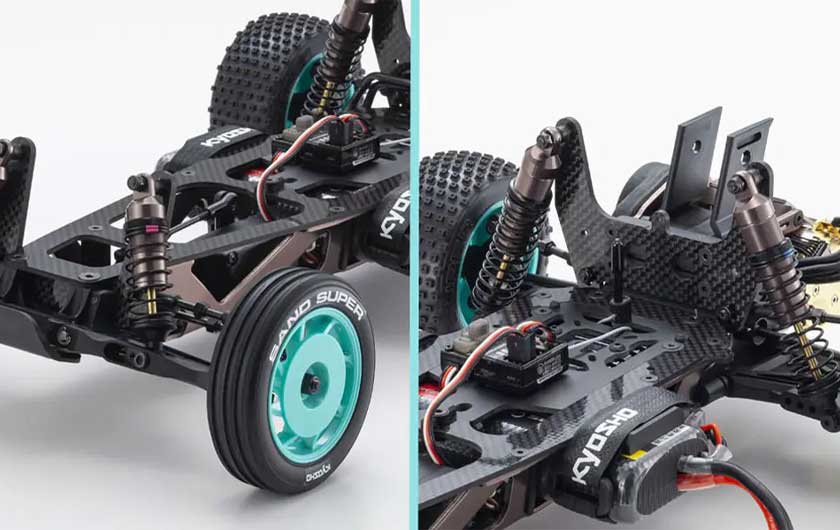

Carbon Fiber Shock Stays - Included as standard and absorb the feedback from the road surface to ensure maximum suspension effectiveness. These were an optional upgrade on the original.
Carbon Fiber Upper Plate - Hybrid carbon fiber upper plate is not only lightweight but also highly rigid. Unlike the early Ultima, it can accommodate short LiPo batteries in addition to standard type.

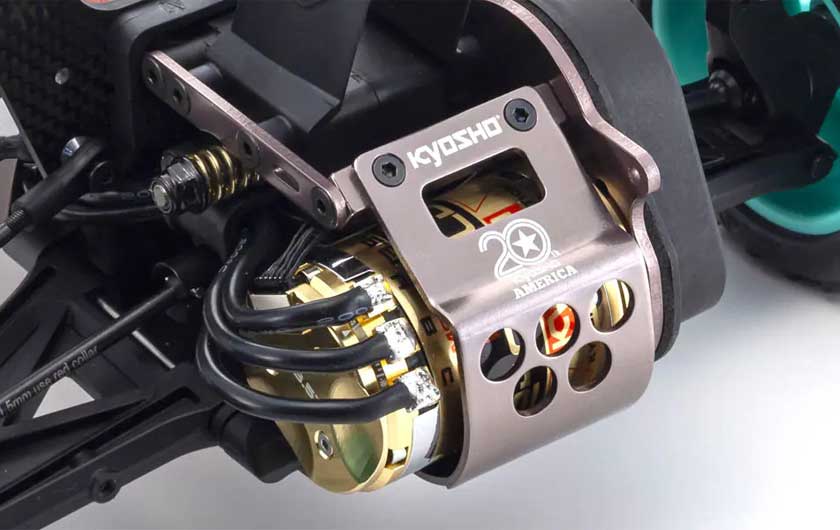

Kyosho Engraving - Engraved with a logo commemorating Kyosho America's 20th anniversary, the aluminum motor guard is also finished in gunmetal and protects the motor from crash damage.

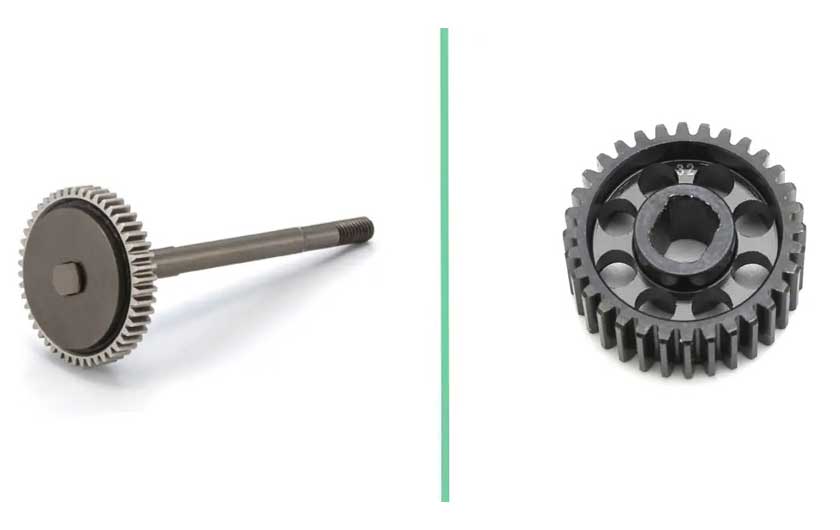

Highly Durable Gearing - Gear shaft and slipper plate are made from aircraft-grade 7075 Duralumin. Not only effective in reducing weight of the drive system and overall chassis, they also combine with the HD final pinion gear to deliver superior acceleration and deceleration.

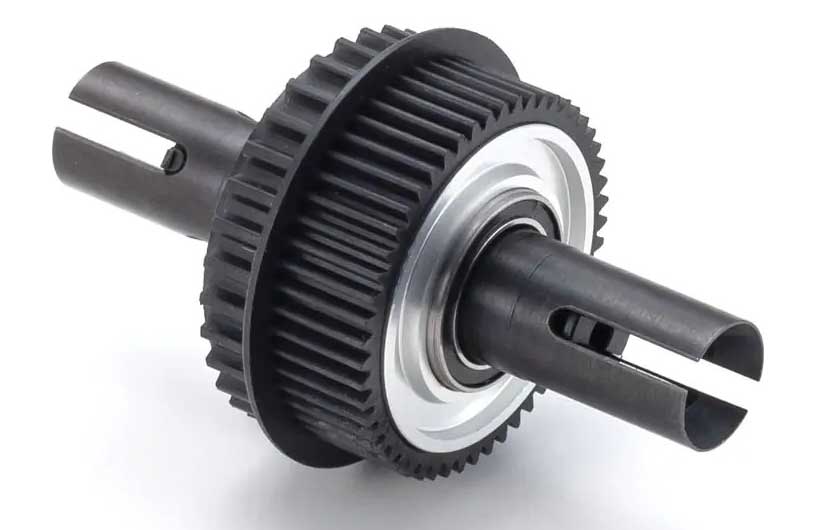

Differential - Ball differential unit delivers smooth cornering and sharp acceleration even on low grip off-road surfaces. This latest Ultima incorporates components that were previously optional upgrades.
Specifications
- Ball Bearings - Full Ball Bearings
- Battery - Sold Separately
- Body - Pre-Painted Polycarbonate
- Charger - Sold Separately
- Chassis - Aluminum Monocoque Chassis
- Completion Level - Kit
- Differential - Gear Diffs
- Drive Type - Forward/Brake/Reverse
- Drivetrain - 2WD
- Front Track - 8.18" (208mm)
- Gear Ratio - 8.64:1
- Motor Size - 540-Size
- Power Type - Electric
- Product Height - 5.11" (130 mm)
- Product Length - 14.56" (370 mm)
- Product Weight - 52.91oz (1500g)
- Product Width - 9.84" (250 mm)
- Radio - Sold Separately
- Rear Track - 8.42" (214mm)
- Receiver - Sold Separately
- Scale - 1/10
- Servos - Sold Separately
- Shock Type - Threaded Oil-Shocks
- Speed Control - Sold Separately
- Suspension - Independent Suspension
- Vehicle Size - Standard
- Vehicle Type - Buggy
- Wheelbase - 10.35" (263 mm)
Product Details
In The Box
- 1/10 Ultima '87 2WD Off-Road Buggy Kit - 1
- 1/10 Ultima Manual - 1
Needed to Complete
- 2+ Channel Radio System - 1
- Standard-Size Steering Servo - 1
- 540-Size Motor - 1
- electronic Speed Control - 1
- 7.4V - 7.6V LiPo Battery (or Shorty LiPo Battery) - 1
- Battery Charger - 1
Additional Information
Oversized Item: |
Yes |
Model Type: |
Buggy |
Power: |
Electric |
Scale: |
1/10th |
Drive: |
2WD |
Completeness: |
Kit-Requires Completion |
