Description

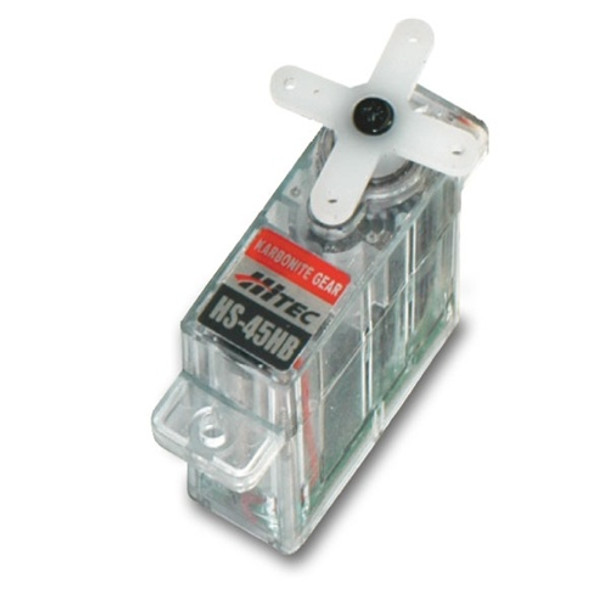

HITHS45HB Hitec HS-45HB AGTT Feather High Speed/Torque Servo
Hitec HS-45HB - AGTT Feather Servo
Specifications
| Modulation: | Analog |
| Torque: | 4.8V: 14.00 oz-in (1.01 kg-cm) 6.0V: 17.00 oz-in (1.22 kg-cm) |
| Speed: | 4.8V: 0.14 sec/60° 6.0V: 0.12 sec/60° |
| Weight: | 0.28 oz (7.9 g) |
| Dimensions: | Length:0.92 in (23.4 mm) Width:0.38 in (9.7 mm) Height:0.88 in (22.4 mm) |
| Motor Type: | 3-pole |
| Gear Type: | Plastic |
Specifications:
Motor Type: 3 Pole
Bearing Type: Top Ball Bearing
Speed: 0.14 / 0.12 sec @ 60 deg.
English Metric
Torque: 13.88 / 16.66 oz.in (4.8v/6v) 1.0 / 1.2 kg.cm
Size: 0.92" x 0.38" x 0.88" 23.60 x 9.80 x 22.40mm
Weight: 0.28oz 8.00g
Motor Type: 3 Pole Bearing Type: Top Ball Bearing Speed: 0.14 / 0.12 sec @ 60 deg. English Metric Torque: 13.88 / 16.66 oz.in (4.8v/6v) 1.0 / 1.2 kg.cm Size: 0.92" x 0.38" x 0.88" 23.60 x 9.80 x 22.40mm Weight: 0.28oz 8.00g
Manuals:
Additional Information
Max Voltage: |
6.0v |
Min Voltage: |
4.8v |
Features: |
Feather High Speed/Torque Servo |
Gear Material: |
Karbonite |
Modulation: |
Analog |
Motor: |
3- Pole |
Servo Name: |
HS-45HB |
Power: |
4.8v - 6.0v |
Size: |
Feather Sub Micro |
Speed 4.8V: |
0.10 sec/60° - 0.19 sec/60° |
Speed 6.0V: |
0.10 sec/60° - 0.19 sec/60° |
Spline: |
H2 |
Torque 4.8V: |
10-19 oz - in |
Torque 6.0V: |
10-19 oz.-in. |
Weight: |
Less Than .5 oz |
