Description

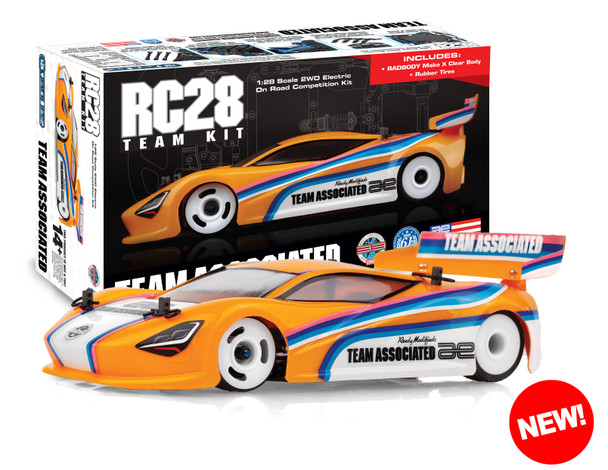

ASC20168 ASSOCIATED RC28R Team Kit w/Body and Tires
1:28 Scale 2WD Electric On-Road Competition Kit
Introducing the Team Associated RC28R Team Kit. This compact on-road race car is designed with the same engineering precision found in every AREA 51-developed product. Though small in scale, the RC28R delivers big performance in an easy to set up package. Featuring a fixed-arm front suspension with included optional molded upper arms for tuning caster and camber. The torsion side links (soft, medium, and hard included) replace the need for a side spring making setup easy while adding performance in areas a conventional spring does not. The battery holder design ensures quick access without disturbing the center shock.
The steel chassis plate provides a low center of gravity while the insert adjustable roll center enables chassis roll adjustment based on the grip level. The pitch, roll and droop can further be tuned/Adjusted with the threaded aluminum center shock, spring collars and side damper tubes. The two-piece rear pod allows quick axle height adjustment utilizing Factory Team carbon fiber shims. Fine-tune Ackermann on the fly with the adjustable servo mount. Compact, tunable, and designed to race, the RC28R is built for high performance and fun—even in tight spaces.
The steel chassis plate provides a low center of gravity while the insert adjustable roll center enables chassis roll adjustment based on the grip level. The pitch, roll and droop can further be tuned/Adjusted with the threaded aluminum center shock, spring collars and side damper tubes. The two-piece rear pod allows quick axle height adjustment utilizing Factory Team carbon fiber shims. Fine-tune Ackermann on the fly with the adjustable servo mount. Compact, tunable, and designed to race, the RC28R is built for high performance and fun—even in tight spaces.
Features
- RADBODY Mako X clear body and tires included
- Fixed arm style front end with optional molded upper arms to adjust caster and camber
- Front bulkhead design allows for quick upper arm changes with consistent fitment and position
- Optimized steering geometry with adjustable servo mount to tune ackerman on the fly
- Steel chassis plate for low center of gravity
- Easily removable battery holder to access the battery without removing center shock
- Torsion style side links act as side spring with soft, medium, and hard options included
- Adjustable rear pod roll center inserts to tune roll characteristics to grip level
- Optimized roll geometry with side damper tubes
- Threaded aluminum center shock with adjustable droop and spring collar
- Two-piece rear pod with adjustable axle heights for different tire diameters and ride heights utilizing Factory Team carbon fiber shims
- Gear differential included and can fit other aftermarket options currently available
- Hard plastic and polycarbonate body mounting options included
- White wheels included that fit optional front wheel flanges to tune steering feel
- Universal front bumper included
- Team Associated’s quality, distribution, support, and customer service
Needed to Complete
- Silicone Shock Fluid
- Silicone Diff Fluid
- Body Scissors
- Reamer / Hole Punch
- Hobby Knife
- Needle Nose Pliers
- Wire Cutters
- Soldering Iron
- Calipers or a Precision Ruler
- 1.5mm hex, .050” hex, 1.3mm hex, 0.9mm hex, 4.5mm nut, and PH00 drivers
Specifications
- Power Source: Electric
- Terrain: On-Road
- Body Style: Touring Car
- Scale Size: 1:28 Scale
- Assembly Level: Kit (This vehicle comes as a kit and must be fully assembled by the user. See "Needed to Complete" for extra items needed.)
- Length: 140mm (5.51in)
- Width: varies
- Wheelbase: 98mm (3.86in)
- Weight: varies
- Internal Gear Ratio: varies
- Drive: 2WD
- Product Status: Active
- Type: Kits/RTRs
Manuals/Documents
- Instruction Manual (10.67MB)
Additional Information
Model Type: |
Race Car |
Power: |
Electric |
Scale: |
1/28th |
Drive: |
2WD |
Completeness: |
Kit-Requires Completion |
